Модуль управления шаговым двигателем FM 054, 1 канал 24 В/1,5 А с обратной связью через энкодер, 4 дискретных входа/выхода 24 В пост. тока, выходная частота 32 кГц, до 64 микрошагов на шаг
Наименование
|
FM054 – Stepper motor module |
Тип
|
054-1BA00 |
Габаритные размеры, В х Ш х Г, мм
|
12.9 mm x 109 mm x 76.5 mm |
Температура окружающей среды
|
0 °C .. 60 °C |
|

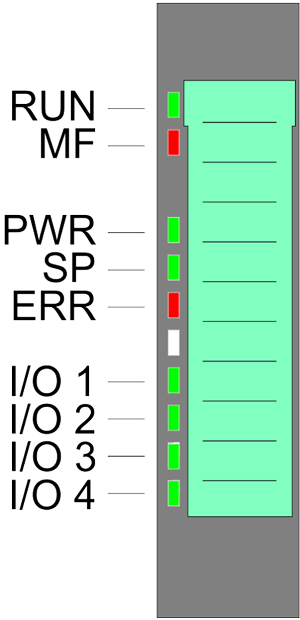

Status indication
RUN | MF | Description | ||
green | red |
|
||
● | ○ | Bus communication is OK Module status is OK |
||
● | ● |
Bus communication is OK |
||
○ | ● |
Bus communication is not possible |
||
○ | ○ | Error at bus power supply | ||
X | B |
Error in configuration |
||
PWR | green |
○ |
The state of the module is beyond |
|
B |
Module is in state ‘Switched on’ | |||
● |
Module is in state ‘Operation enabled’ | |||
SP | green |
○ |
Velocity set point value is 0. |
|
● |
Velocity set point value > 0. |
|||
ERR | red |
○ |
No Error |
|
B |
Warning: 0x80 |
|||
● |
Error: 0x08 |
|||
I/O1 | green |
○ |
Digital input/output 1 has "0" signal |
|
● |
Digital input/output 1 has "1" signal |
|||
I/O2 | green |
○ |
Digital input/output 2 has "0" signal |
|
● |
Digital input/output 2 has "1" signal |
|||
I/O3 | green | ○ | Digital input/output 3 has "0" signal | |
● | Digital input/output 3 has "1" signal | |||
I/O4 | green | ○ | Digital input/output 4 has "0" signal | |
● | Digital input/output 4 has "1" signal | |||
on: ● | off: ○ | blinking:: B | not relevant: X |
Pin assignment
PM - Power module | Pos. | Function |
Type |
Description |
1 | PA1 | O |
Motor winding A - connection 1 |
|
2 | PA2 | O |
Motor winding A - connection 2 |
|
3 | I/O1 | I/O |
Digital input/output 1 |
|
4 | I/O3 | I/O |
Digital input/output 3 |
|
5 | PB1 | O |
Motor winding B - connection 1 |
|
6 | PB2 | O |
Motor winding B - connection 2 |
|
7 | I/O2 | I/O |
Digital input/output 2 |
|
8 | I/O4 | I/O |
Digital input/output 4 |
I: Input, O: Output
Order no. |
054-1BA00 |
Type | FM 054 |
Module ID | 0981 6800 |
General information |
|
Note | - |
Features | 1-channel with feedback 4 inputs/outputs DC 24V, which can be used as encoder inputs Power control frequency 32 kHz Step pattern 64 times microstepping |
Current consumption/power loss |
|
Current consumption from backplane bus | 50 mA |
Power loss | 1 W |
Technical data digital inputs |
|
Number of inputs | 4 |
Cable length, shielded | 1000 m |
Cable length, unshielded | 600 m |
Rated load voltage | - |
Current consumption from load voltage L+ (without load) | - |
Rated value | DC 20.4...28.8 V |
Input voltage for signal "0" | DC 11...28.8 V |
Input voltage for signal "1" | DC 0...5 V |
Input voltage hysteresis | - |
Frequency range | - |
Input resistance | - |
Input current for signal "1" | 3 mA |
Connection of Two-Wire-BEROs possible | |
Max. permissible BERO quiescent current | 0.5 mA |
Input delay of "0" to "1" | 1.5 ms |
Input delay of "1" to "0" | 1.5 ms |
Number of simultaneously utilizable inputs horizontal configuration | 2 |
Number of simultaneously utilizable inputs vertical configuration | 2 |
Input characteristic curve | IEC 61131-2, type 3 |
Initial data size | 4 Bit |
Technical data digital outputs |
|
Number of outputs | 4 |
Cable length, shielded | 1000 m |
Cable length, unshielded | 600 m |
Rated load voltage | DC 20.4...28.8 V |
Reverse polarity protection of rated load voltage | - |
Current consumption from load voltage L+ (without load) | - |
Output current at signal "1", rated value | 500 mA |
Output delay of "0" to "1" | 1.5 ms |
Output delay of "1" to "0" | 1.5 ms |
Minimum load current | - |
Lamp load | 10 W |
Parallel switching of outputs for redundant control of a load | not possible |
Parallel switching of outputs for increased power | not possible |
Actuation of digital input | |
Switching frequency with resistive load | max. 300 Hz |
Switching frequency with inductive load | max. 0.5 Hz |
Switching frequency on lamp load | max. 10 Hz |
Internal limitation of inductive shut-off voltage | L+ (-45 V) |
Short-circuit protection of output | yes, electronic |
Trigger level | 1 A |
Number of operating cycle of relay outputs | - |
Switching capacity of contacts | - |
Output data size | - |
Status information, alarms, diagnostics |
|
Status display | green LED per channel |
Interrupts | yes, parameterizable |
Process alarm | no |
Diagnostic interrupt | yes, parameterizable |
Diagnostic functions | yes |
Diagnostics information read-out | possible |
Supply voltage display | green LED |
Group error display | red LED |
Channel error display | red LED per channel |
Isolation |
|
Between channels | - |
Between channels of groups to | - |
Between channels and backplane bus | |
Insulation tested with | AC 500 V |
Technical data positioning module |
|
Number of channels | 1 |
Input voltage (rated value) | DC 24 V |
Input voltage (permitted range) | DC 20.4...28.8 V |
Motor current | 1.5 A |
Power stage | 2x Full bridge PWM |
Short-circuit protection | |
Brake-Chopper required | - |
PWM frequency | 32 kHz |
Pulse train frequency | - |
Micro steps | 64 |
Steps per rotation | 256 |
Type of encoder | A/B phase 24V single ended |
Encoder frequency | 100 kHz |
Encoder resolution | 24 Bit |
Control type | open loop |
Temperature sensor | |
Operating modes position functions |
|
Homing via homing switch | |
Positioning via torque | - |
Positioning without encoder | |
Positioning with encoder | - |
Speed control | |
Torque control | - |
Housing |
|
Material | PPE / PPE GF10 |
Mounting | Profile rail 35 mm |
Mechanical data |
|
Dimensions (WxHxD) | 12.9 mm x 109 mm x 76.5 mm |
Weight | 62 g |
Environmental conditions |
|
Operating temperature | 0 °C to 60 °C |
Storage temperature | -25 °C to 70 °C |
Certifications |
|
UL certification | in preparation |
KC certification | in preparation |
Order no. | Name/Description | |
---|---|---|
050-1BA00 |
FM 050 - Counter module␍␍␍ 1 Counter 32 Bit (AB) DC 24 V |
[Datasheet] [Manual] [STP] |
050-1BA10 |
FM 050 - Counter module 1 Counter 32 Bit (AB) DC 5 V (difference signal) |
[Datasheet] [Manual] [STP] |

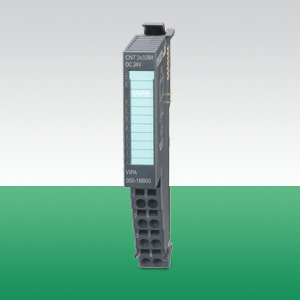

050-1BB00 |
