Модуль подключения датчиков SSI: 1 канал, уровни сигнала RS-422, разрешающая способность 32 разряда, частота импульсов от 125 кГц до 2 МГц, поддержка функции ETS
|
Наименование
|
SSI Модули FM 050, SSI RS422 24/32Bit 100/300/600kBit/s |
|
Тип
|
050-1BS00 |
|
Габаритные размеры, В х Ш х Г, мм
|
12.9 mm x 109 mm x 76.5 mm |
|
Температура окружающей среды
|
0 °C .. 60 °C |
 |
|

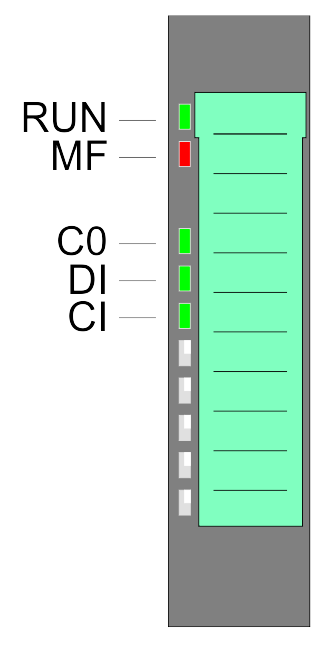

Status indication
 |
RUN | MF | Description | |
| green | red |
|
||
| ● | ○ | Bus communication is OK Module status is OK |
||
| ● | ● |
Bus communication is OK |
||
| ○ | ● |
Bus communication is not possible |
||
| ○ | ○ | Error at bus power supply | ||
| X | B |
Error in configuration |
||
| CO | green |
● |
Clock OUT activity |
|
| DI | green |
● |
Data IN activity |
|
| CI | green | ● | Clock IN activity | |
| on: ● | off: ○ | blinks with 2Hz: B | not relevant: X | ||||
Pin assignment
| PM - Power module | Pos. | Function |
Type |
Description |
 |
1 | CO+ | O |
Clock OUT+ Difference output for Clock OUT (exclusively for master mode) |
| 2 | DC 24V | O |
DC 24V for encoder |
|
| 3 | 0V | O |
GND |
|
| 4 | CI+ | I |
Clock IN+ Difference input for Clock IN (exclusively for listening mode) |
|
| 5 | CO- | O |
Clock OUTDifference output for Clock OUT (exclusively for master mode) |
|
| 6 | DI+ | I |
Data IN+ Difference input for Data IN |
|
| 7 | DI- | I |
Data IN- |
|
| 8 | CI- | I |
Clock INDifference input for Clock IN(exclusively for listening mode) |
I: Input, O: Output
Order no. |
050-1BS00 |
| Type | FM 050 |
| Module ID | 09C1 7800 |
General information |
|
| Note | - |
| Features | SSI - Encoder Master or slave mode Encoder frequency 125 kHz...2 MHz μs time stamp for encoder value |
Current consumption/power loss |
|
| Current consumption from backplane bus | 70 mA |
| Power loss | 1 W |
| Parallel switching of outputs for increased power | - |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | yes, parameterizable |
| Process alarm | no |
| Diagnostic interrupt | yes, parameterizable |
| Diagnostic functions | yes, parameterizable |
| Diagnostics information read-out | possible |
| Module state | green LED |
| Module error display | red LED |
| Channel error display | none |
Isolation |
|
| Between channels | - |
| Between channels of groups to | - |
| Between channels and backplane bus |  |
| Between channels and power supply | - |
| Max. potential difference between circuits | - |
| Max. potential difference between inputs (Ucm) | - |
| Max. potential difference between Mana and Mintern (Uiso) | - |
| Max. potential difference between inputs and Mana (Ucm) | - |
| Max. potential difference between inputs and Mintern (Uiso) | - |
| Max. potential difference between Mintern and outputs | - |
| Insulation tested with | DC 500 V |
Datasizes |
|
| Input bytes | 6 |
| Output bytes | 0 |
| Parameter bytes | 17 |
| Diagnostic bytes | 20 |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 12.9 mm x 109 mm x 76.5 mm |
| Weight | 60 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
