Модуль счетчика: 1 канал (AB), 32 разряда, входной сигнал 24 В пост. тока с частотой до 400 кГц; дискретный выход: 1 канал 24 В/0,5 А пост. тока
|
Наименование
|
FM 050, Счетчик 1x32Bit DC 24V, DO 1xDC 24V 0.5A |
|
Тип
|
050-1BA00 |
|
Габаритные размеры, В х Ш х Г, мм
|
12.9 mm x 109 mm x 76.5 mm |
|
Температура окружающей среды
|
0 °C .. 60 °C |
 |
|

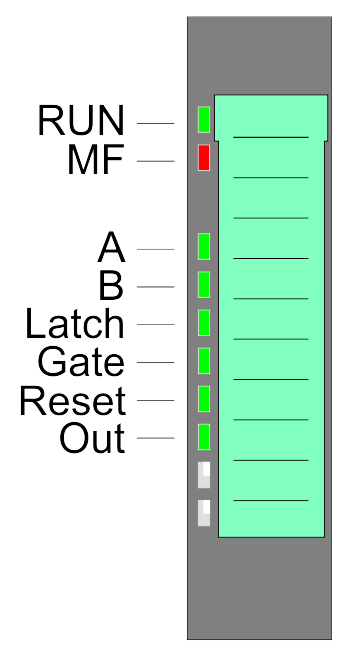

Status indication
 |
RUN | MF | Description | |
| green | red |
|
||
| ● | ○ | Bus communication is OK Module status is OK |
||
| ● | ● |
Bus communication is OK |
||
| ○ | ● |
Bus communication is not possible |
||
| ○ | ○ | Error at bus power supply | ||
| X | B |
Error in configuration |
||
| A | green |
● |
Digital input 1 |
|
| B | green |
● |
Digital input 5 |
|
| Latch | green |
● |
Digital input 4 |
|
| Gate | green |
● |
Digital input 8 |
|
| Reset | green |
● |
Digital input 7 |
|
| OUT | green | ● | Digital output 6 is set | |
| on: ● | off: ○ | blinks with 2Hz: B | not relevant: X | ||||
Pin assignment
| PM - Power module | Pos. | Function |
Type |
Description |
 |
1 | A | I |
A / pulse |
| 2 | DC 24V | O |
DC 24V for encoder |
|
| 3 | 0V | O |
GND |
|
| 4 | L | I |
Latch |
|
| 5 | B | I |
B / direction |
|
| 6 | Out | O |
Digital output controlled by means of the comparison functions. |
|
| 7 | R | I |
Reset |
|
| 8 | G | I |
Hardware gate |
I: Input, O: Output
Order no. |
050-1BA00 |
| Type | FM 050 |
| Module ID | 08C1 3800 |
General information |
|
| Note | - |
| Features | 1 Counter 32 Bit (AB) DC 24 V |
Current consumption/power loss |
|
| Current consumption from backplane bus | 75 mA |
| Power loss | 1 W |
Technical data digital inputs |
|
| Number of inputs | 5 |
| Cable length, shielded | 100 m |
| Cable length, unshielded | - |
| Rated load voltage | DC 20.4...28.8 V |
| Reverse polarity protection of rated load voltage | - |
| Current consumption from load voltage L+ (without load) | 20 mA |
| Rated value | DC 20.4...28.8 V |
| Input voltage for signal "0" | DC 0...5 V |
| Input voltage for signal "1" | DC 15...28.8 V |
| Input voltage hysteresis | - |
| Frequency range | - |
| Input resistance | - |
| Input current for signal "1" | 3 mA |
| Connection of Two-Wire-BEROs possible |  |
| Max. permissible BERO quiescent current | 0.5 mA |
| Input delay of "0" to "1" | 0.8 µs |
| Input delay of "1" to "0" | 0.8 µs |
| Number of simultaneously utilizable inputs horizontal configuration | 5 |
| Number of simultaneously utilizable inputs vertical configuration | 5 |
| Input characteristic curve | IEC 61131-2, type 1 |
| Initial data size | 12 Byte |
Technical data digital outputs |
|
| Number of outputs | 1 |
| Cable length, shielded | 100 m |
| Cable length, unshielded | 100 m |
| Rated load voltage | DC 20.4...28.8 V |
| Current consumption from load voltage L+ (without load) | - |
| Output delay of "0" to "1" | 30 µs |
| Output delay of "1" to "0" | 30 µs |
| Minimum load current | - |
| Lamp load | 10 W |
| Parallel switching of outputs for redundant control of a load | not possible |
| Parallel switching of outputs for increased power | not possible |
| Actuation of digital input | |
| Switching frequency with resistive load | max. 10 kHz |
| Switching frequency with inductive load | max. 0.5 Hz |
| Switching frequency on lamp load | max. 10 kHz |
| Internal limitation of inductive shut-off voltage | L+ (-52 V) |
| Short-circuit protection of output | yes, electronic |
| Trigger level | 1 A |
| Number of operating cycle of relay outputs | - |
| Switching capacity of contacts | - |
| Output data size | 10 Byte |
Technical data counters |
|
| Number of counters | 1 |
| Counter width | 32 Bit |
| Maximum input frequency | 100 kHz |
| Maximum count frequency | 400 kHz |
| Mode incremental encoder | |
| Mode pulse / direction | |
| Mode pulse | - |
| Mode frequency counter | - |
| Mode period measurement | - |
| Gate input available | |
| Latch input available | |
| Reset input available | |
| Counter output available | |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | yes, parameterizable |
| Process alarm | yes, parameterizable |
| Diagnostic interrupt | yes, parameterizable |
| Diagnostic functions | yes, parameterizable |
| Diagnostics information read-out | possible |
| Module state | green LED |
| Module error display | red LED |
| Channel error display | none |
Isolation |
|
| Between channels | - |
| Between channels of groups to | - |
| Between channels and backplane bus | |
| Between channels and power supply | - |
| Max. potential difference between circuits | - |
| Max. potential difference between inputs (Ucm) | - |
| Max. potential difference between Mana and Mintern (Uiso) | - |
| Max. potential difference between inputs and Mana (Ucm) | - |
| Max. potential difference between inputs and Mintern (Uiso) | - |
| Max. potential difference between Mintern and outputs | - |
| Insulation tested with | DC 500 V |
Datasizes |
|
| Input bytes | 12 |
| Output bytes | 10 |
| Parameter bytes | 25 |
| Diagnostic bytes | 20 |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 12.9 mm x 109 mm x 76.5 mm |
| Weight | 60 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
050-1BA00 |
FM 050 - Counter module␍␍␍ 1 Counter 32 Bit (AB) DC 24 V |
 [Datasheet] [Manual] [STP] |
|
050-1BA10 |
FM 050 - Counter module 1 Counter 32 Bit (AB) DC 5 V (difference signal) |
[Datasheet] [Manual] [STP] |
|
050-1BB00 |
FM 050 - Counter module 2 Counter 32 Bit (AB) DC 24 V |
[Datasheet] [Manual] [STP] |
|
050-1BB30 |
FM 050 - Counter module Eco 2 Counter 32 Bit (AB) DC 24 V |
[Datasheet] [Manual] [STP] |
|
050-1BB40 |
FM 050 - Frequency measurement 2 channels 24 Bit DC 24 V |
[Datasheet] [Manual] [STP] |
|
050-1BS00 |
FM 050S - SSI module SSI - Encoder Master or slave mode Encoder frequency 125 kHz...2 MHz μs time stamp for encoder value |
[Datasheet] [Manual] [STP] |
|
054-1BA00 |
FM054 – Stepper motor module 1-channel with feedback 4 inputs/outputs DC 24V, which can be used as encoder inputs Power control frequency 32 kHz Step pattern 64 times microstepping |
[Datasheet] [Shortfacts] [Manual] |
|
054-1CB00 |
FM054 - DC motor module 2-channel with feedback 4 inputs/outputs DC 24V, which can be used as encoder inputs PWM clock frequency 32 kHz |
[Datasheet] [Shortfacts] [Manual] |
|
054-1DA00 |
FM054 - Pulse Train Output Module 1-channel RS422 with feedback 4 configurable in-/outputs I/O1 ... I/O4 Operating modes: CW/CCW, PLS/DIR, ENC/SIM |
[Datasheet] [Shortfacts] [Manual] |
