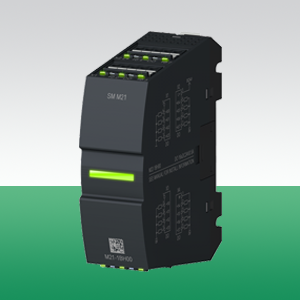

Модуль дискретного ввода SM M21, 16 каналов 24 В пост. тока
|
Наименование
|
Модуль дискретного ввода SM M21, DI 16xDC 24V |
|
Тип
|
M21-1BH00 |
|
Габаритные размеры, В х Ш х Г, мм
|
26 mm x 88 mm x 71 mm |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Количество входов
|
16 |
|
Тип входного сигнала
|
24V DC |
 |
|
Status bar
| LED | Description |
 |
LEDs green on: Backplane bus communication and module status are OK |
  |
LED red on: Module reports an error |
 |
LED red blinks with 1Hz: Error in configuration |
 |
LEDs green are blinking with 1Hz: Error backplane bus communication |
LEDs connectors
| Digital input | LED | Description |
| DI +0.0 DI +0.7 | |
Digital I+0.0 ... 0.7 has "1" signal |
|
Digital I+0.0 ... 0.7 has "0" signal | |
| DI +1.0 ... DI +1.7 | |
Digital input I+1.0 ... 1.7 has "1" signal |
|
Digital input I+1.0 ... 1.7 has "0" signal |

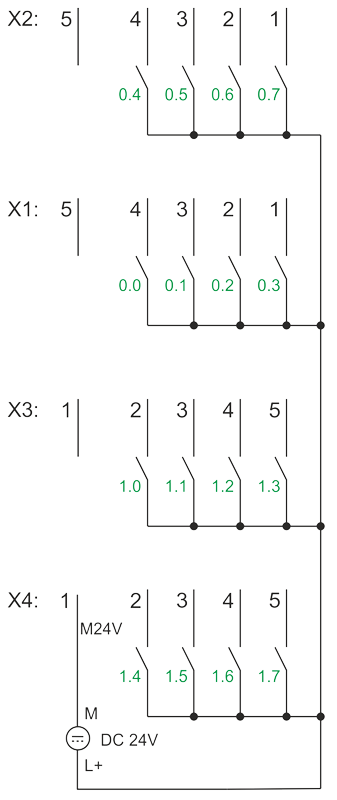

Pin assignment
 |
X | Pin | Function | Type | LED | Description |
| X2: | 1 | +0.7 | I | |
Digital input DI 7 | |
| 2 | +0.6 | I | |
Digital input DI 6 | ||
| 3 | +0.5 | I | |
Digital input DI 5 | ||
| 4 | +0.4 | I | |
Digital input DI 4 | ||
| 5 | - | - | reserved | |||
| X1: | 1 | +0.3 | I | |
Digital input DI 3 | |
| 2 | +0.2 | I | |
Digital input DI 2 | ||
| 3 | +0.1 | I | |
Digital input DI 1 | ||
| 4 | +0.0 | I | |
Digital input DI 0 | ||
| 5 | - | - | reserved | |||
| X3: | 1 | - | - | reserved | ||
| 2 | +1.0 | I | |
Digital input DI 8 | ||
| 3 | +1.1 | I | |
Digital input DI 9 | ||
| 4 | +1.2 | I | |
Digital input DI 10 | ||
| 5 | +1.3 | I | |
Digital input DI 11 | ||
| X4: | 1 | 0V | I | Ground DI | ||
| 2 | +1.4 | I | |
Digital input DI 12 | ||
| 3 | +1.5 | I | |
Digital input DI 13 | ||
| 4 | +1.6 | I | |
Digital input DI 14 | ||
| 5 | +1.7 | I | |
Digital input DI 15 | ||
| I: Input | ||||||
Order no. |
M21-1BH00 |
| Type | SM M21 |
| Module ID | 0014 9FC2 |
General information |
|
| Note | - |
| Features | 16 inputs |
Current consumption/power loss |
|
| Current consumption from backplane bus | 65 mA |
| Power loss | 0.9 W |
Technical data digital inputs |
|
| Number of inputs | 16 |
| Cable length, shielded | 1000 m |
| Cable length, unshielded | 600 m |
| Rated load voltage | - |
| Current consumption from load voltage L+ (without load) | 25 mA |
| Rated value | DC 20.4...28.8 V |
| Input voltage for signal "0" | DC 0...5 V |
| Input voltage for signal "1" | DC 15...28.8 V |
| Input voltage hysteresis | - |
| Frequency range | - |
| Input resistance | - |
| Input current for signal "1" | 3 mA |
| Connection of Two-Wire-BEROs possible |  |
| Max. permissible BERO quiescent current | 0.5 mA |
| Input delay of "0" to "1" | 3 ms |
| Input delay of "1" to "0" | 3 ms |
| Number of simultaneously utilizable inputs horizontal configuration | 16 |
| Number of simultaneously utilizable inputs vertical configuration | 16 |
| Input characteristic curve | IEC 61131-2, type 1 |
| Initial data size | 16 Bit |
Status information, alarms, diagnostics |
|
| Status display | green LED per channel |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | none |
| Module state | none |
| Module error display | red LED |
| Channel error display | none |
Isolation |
|
| Between channels | - |
| Between channels of groups to | - |
| Between channels and backplane bus | |
| Insulation tested with | DC 500 V |
Datasizes |
|
| Input bytes | 2 |
| Output bytes | 0 |
| Parameter bytes | 0 |
| Diagnostic bytes | 0 |
Housing |
|
| Material | PPE / PPE GF10 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 26 mm x 88 mm x 71 mm |
| Net weight | 89 g |
| Weight including accessories | 89 g |
| Gross weight | 102 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | in preparation |
| KC certification | in preparation |
