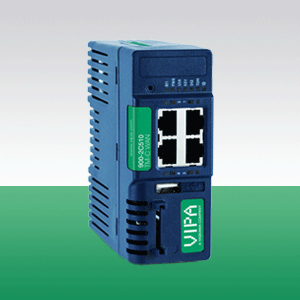

Коммуникационный модуль TM-C VPN router WAN/LAN: 4x RJ45 LAN 100 Мбит/с, 2xDI, 1xDO, Поддержка OpenVPN, напряжение питания 12-24 В пост. тока
|
Наименование
|
TM-C VPN Router WAN/LAN |
|
Габарит
|
42.6 x 107.8 x 98.3 мм |
|
Вес
|
191 г |
|
Температура окружающей среды
|
работа: -20…+70°С хранение: -40 °C to 70 °C |
|
Серия
|
Communication module |
 |
|
| Main Connector | Characteristic | Value |
 |
Connector type |
MINICONNEC MC model |
| PIN | ICON | ID | Description |
| 1 | O- | DO_COM |
Output signal (0V ground) |
| 2 | O | DO |
Output signal |
| 3 | O+ |
DO_VDC |
Common of the external predrive power supply |
| 4 | i- |
DI_COM |
Ground of the input (isolated) |
| 5 | i1 |
DI1 |
Input signal 1 |
| 6 | i2 |
DI2 |
Input signal 2 |
| 7 | + |
Power in VDD + |
12 - 24 VDC |
| 8 | - |
Power in GND - |
0V |
| 9 |
Functional Earth |
Status LED panel (All version)
| Label | Description |
| BI1 |
Button BI1 input |
| PWR |
Power |
| USR |
User |
| KEY |
Digital IN 1 - Green = ON: Signal on input 1 detected |
| DI2 |
Digital IN 2 - Green = ON: Signal on input 2 detected |
| T2M | Talk2M - Green ON = Talk2M VPN connection established |
| @ |
Internet |
Status LED panel (TM-C - WiFi)
Status LED panel (TM-C - 3G+)
 |
Компактная антенна GSM/UMTS900-0AB50 кабель 5 м, соединитель SMA (вилка) |
|
Штыревая антенна GSM/GPRS900-0AQ51 кабель 5 м, соединитель SMA (вилка) |
Order no. |
900-2C510 |
| Type | - |
General information |
|
| Note | - |
| Features | 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN) 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
Inputs and outputs |
|
| Inputs | - |
| Outputs | - |
Communication |
|
| serial port | USB |
| LAN | - |
| WAN | - |
| Modem type | - |
Router |
|
| Router functions | - |
| RAS | - |
VPN |
|
| VPN mode | - |
| Talk2M | - |
| Gateway protocols | - |
Services |
|
| Server services | FTP HTTP |
| Client Services | NTP SNMP V1 |
Data management |
|
| Custom Website | - |
| Project | web interface |
| Integrated protocols | - |
Interrupts |
|
| Alarm message | - |
| Alarm | - |
Housing |
|
| Material | - |
| Mounting | - |
Mechanical data |
|
| Dimensions (WxHxD) | 42.6 mm x 107.8 mm x 98.3 mm |
| Weight | 191 g |
Environmental conditions |
|
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | -40 °C to 70 °C |
Certifications |
|
| UL certification | yes |
| KC certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
900-2C510 |
TM-C VPN Router WAN/LAN 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN) 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
 [Datasheet] [Manual] |
|
900-2C520 |
TM-C VPN Router WIFI/WAN/LAN WIFI interface for connection to a WIFI network 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN) 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
[Datasheet] [Manual] |
|
900-2C580 |
TM-C VPN Router 3G+/WAN/LAN 3G+ modem for external broadband communication 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)␍ 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
[Datasheet] [Manual] |
|
900-2C610 |
TM-C Router For teleservice through broadband connection via Talk2M 1x RS485 MPI-/PROFIBUS-DP interface 4x LAN RJ45 Ethernet interface 1x WAN RJ45 Ethernet interface |
[Datasheet] [Manual] |
|
900-2H611 |
TM-H Router VPN For teleservice through a broadband connection via Talk2M & VPN 1x RS485 MPI-/PROFIBUS-DP interface 4x LAN RJ45 Ethernet interface 1x WAN RJ45 Ethernet interface |
[Datasheet] [Manual] |
|
900-2H682 |
TM-H Router VPN/HSPA/Ethernet/MPI | [Datasheet] [Manual] |
|
900-0AB50 |
TM antenna GSM/UMTS | |
|
910-1EN50 |
Industrial-Switch EN5-R 5x RJ45 10/100BaseTX full / half Duplex␍ Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition Redundant power supply for 12-45 VDC IP30 aluminium housing for DIN rail mounting |
[Manual] |
|
910-1EN80 |
Industrial-Switch EN8-R 8x RJ45 10/100BaseTX full / half Duplex␍ Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition Redundant power supply for 12-45 VDC IP30 aluminium housing for DIN rail mountin |
[Manual] |
| 911-2PN50 | Industrial-Switch PN5-RD␍ PROFINET v2 Conformance Class B Profinet diagnosis via GSD integration Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP Port mirroring PROFINET I/O parameters, I/O cyclic data, DCP, DHCP Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍ |
[Manual] |
| 911-2PN80 | Industrial-Switch PN8-RD PROFINET v2 Conformance Class B Profinet diagnosis via GSD integration Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP Port mirroring PROFINET I/O parameters, I/O cyclic data, DCP, DHCP Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍ |
[Manual] |
| 920-1BB10 | Profibus-Repeater B1 Transparent for all PROFIBUS DP protocols ␍ 1 segment and 31 deivces per channel 9.6 Kbps .. 12 Mbps (automatic recognition)␍ 1200 m segment length (depending on the baud rate)␍ No Profibus address required |
[Manual] |
| 920-1BD10 | Profibus-Repeater D1 IP66 Screw terminal and DB9 plug connector Integrated terminators (disconnectable) Redundant power supply |
[Manual] |
| 920-1CA50 | MultiRepeaterA5 5 segmente and 31 divces per channel 9.6 Kbps .. 12 Mbps (automatic recognition)␍ 1200 m segment length (depending on baud rate)␍ Integrated terminators (disconnectable) |
[Manual] |
| 920-1CB20 | Profibus-MultiRepeaterB2-R 2 segmente and 31 devices per channel 9.6 Kbps .. 12 Mbps (automatic recognition) 1200 m segment length (depending on baud rate) Integrated terminators (disconnectable) telegram check (integrity check) Alarm contact and Redundant power supply |
[Manual] |
| 920-1CB50 | Profibus-MultiRepeaterB5-R 5 segmente and 31 devices per channel 9.6 Kbps .. 12 Mbps (automatic recognition)␍ 1200 m segment length (depending on baud rate)␍ Integrated terminators (dis-connectable) Alarm contact Redundant power supply |
[Manual] |
| 920-1DB50 | Profibus-MultiRepeater B5-R 5 segmente and 31 devices per channel 9.6 Kbps .. 12 Mbps (automatic recognition) 1200 m segment length (depending on the baud rate) Integrated terminators (disconnectable) Alarm contact and Redundant power supply |
[Manual] |
| 921-1EB50 | Profibus-MultiRepeaterB5-R Changes at the speed in the ongoing operation Screw and DB9 terminal Grounding option configurable Integrated terminators Redundant power supply |
[Manual] |
| 924-1BB10 | Profibus-TermT1 9,6 Kbps up to 12 Mbps Removable screw terminals and 1 DB9 terminal Power supply specifications Redundancy: current 1 OR 2 Diagnostic LEDs |
[Manual] |
Изделие: 900-2C580
Коммуникационный модуль TM-C VPN Router 3G+/WAN/LAN, модем 3G+, 4x RJ45 LAN 100 Мбит/с, 2xDI, 1xDO, поддержка OpenVPN, напряжение питания 12-24 В пост. тока
Изделие: 900-2C610
Коммуникационный модуль TM-C Router для удаленного обслуживания через сервис Talk2M, интерфейсы: MPI/PROFIBUS DP, 4xLAN Ethernet (RJ45), 1xWAN Ethernet (RJ45)
Изделие: 900-2E651
Встроенный 4-диапазонный GSM/GPRS-модем, интерфейсы MPI/PROFIBUS DP и Ethernet (RJ45), гнездо для SIM-карты
Изделие: 920-1BD10
Повторитель для сетей PROFIBUS DP/MPI (RS-485, 12 Мбит/с), 2 канала, до 31 устройства в сегменте, длина кабеля в сегменте до 1200 м, поддержка всех протоколов PROFIBUS DP и MPI
