Повторитель для сетей PROFIBUS DP/MPI (RS-485, 12 Мбит/с), 2 канала, до 31 устройства в сегменте, длина кабеля в сегменте до 1200 м, поддержка всех протоколов PROFIBUS DP и MPI
 |
|
| Order no. | Name/Description | |
|---|---|---|
|
900-2C510 |
TM-C VPN Router WAN/LAN 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN) 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
 [Datasheet] [Manual] |
|
900-2C520 |
TM-C VPN Router WIFI/WAN/LAN WIFI interface for connection to a WIFI network 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN) 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
[Datasheet] [Manual] |
|
900-2C580 |
TM-C VPN Router 3G+/WAN/LAN 3G+ modem for external broadband communication 4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)␍ 2x digital input for internet release 1x digital output for display Talk2M integrated web interface for configuration OpenVPN for save internet connection with Talk2M high level protection through access control |
[Datasheet] [Manual] |
|
900-2C610 |
TM-C Router For teleservice through broadband connection via Talk2M 1x RS485 MPI-/PROFIBUS-DP interface 4x LAN RJ45 Ethernet interface 1x WAN RJ45 Ethernet interface |
[Datasheet] [Manual] |
|
900-2H611 |
TM-H Router VPN For teleservice through a broadband connection via Talk2M & VPN 1x RS485 MPI-/PROFIBUS-DP interface 4x LAN RJ45 Ethernet interface 1x WAN RJ45 Ethernet interface |
[Datasheet] [Manual] |
|
900-2H682 |
TM-H Router VPN/HSPA/Ethernet/MPI | [Datasheet] [Manual] |
|
900-0AB50 |
TM antenna GSM/UMTS | |
|
910-1EN50 |
Industrial-Switch EN5-R 5x RJ45 10/100BaseTX full / half Duplex␍ Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition Redundant power supply for 12-45 VDC IP30 aluminium housing for DIN rail mounting |
[Manual] |
|
910-1EN80 |
Industrial-Switch EN8-R 8x RJ45 10/100BaseTX full / half Duplex␍ Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition Redundant power supply for 12-45 VDC IP30 aluminium housing for DIN rail mountin |
[Manual] |
| 911-2PN50 | Industrial-Switch PN5-RD␍ PROFINET v2 Conformance Class B Profinet diagnosis via GSD integration Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP Port mirroring PROFINET I/O parameters, I/O cyclic data, DCP, DHCP Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍ |
[Manual] |
| 911-2PN80 | Industrial-Switch PN8-RD PROFINET v2 Conformance Class B Profinet diagnosis via GSD integration Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP Port mirroring PROFINET I/O parameters, I/O cyclic data, DCP, DHCP Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍ |
[Manual] |

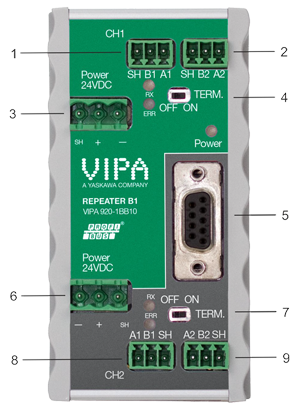

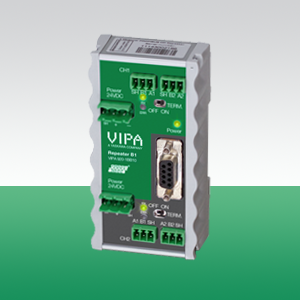

| 920-1BB10 | Profibus-Repeater B1 Transparent for all PROFIBUS DP protocols ␍ 1 segment and 31 deivces per channel 9.6 Kbps .. 12 Mbps (automatic recognition)␍ 1200 m segment length (depending on the baud rate)␍ No Profibus address required |
[Manual] |
| 920-1BD10 | Profibus-Repeater D1 IP66 Screw terminal and DB9 plug connector Integrated terminators (disconnectable) Redundant power supply |
[Manual] |
| 920-1CA50 | MultiRepeaterA5 5 segmente and 31 divces per channel 9.6 Kbps .. 12 Mbps (automatic recognition)␍ 1200 m segment length (depending on baud rate)␍ Integrated terminators (disconnectable) |
[Manual] |
| 920-1CB20 | Profibus-MultiRepeaterB2-R 2 segmente and 31 devices per channel 9.6 Kbps .. 12 Mbps (automatic recognition) 1200 m segment length (depending on baud rate) Integrated terminators (disconnectable) telegram check (integrity check) Alarm contact and Redundant power supply |
[Manual] |
| 920-1CB50 | Profibus-MultiRepeaterB5-R 5 segmente and 31 devices per channel 9.6 Kbps .. 12 Mbps (automatic recognition)␍ 1200 m segment length (depending on baud rate)␍ Integrated terminators (dis-connectable) Alarm contact Redundant power supply |
[Manual] |
| 920-1DB50 | Profibus-MultiRepeater B5-R 5 segmente and 31 devices per channel 9.6 Kbps .. 12 Mbps (automatic recognition) 1200 m segment length (depending on the baud rate) Integrated terminators (disconnectable) Alarm contact and Redundant power supply |
[Manual] |
| 921-1EB50 | Profibus-MultiRepeaterB5-R Changes at the speed in the ongoing operation Screw and DB9 terminal Grounding option configurable Integrated terminators Redundant power supply |
[Manual] |
| 924-1BB10 | Profibus-TermT1 9,6 Kbps up to 12 Mbps Removable screw terminals and 1 DB9 terminal Power supply specifications Redundancy: current 1 OR 2 Diagnostic LEDs |
[Manual] |
Изделие: 920-1CB50
Повторитель для сетей PROFIBUS MultiRepeater B5-R, 5 гальванически изолированных каналов с функцией резервирования, до 31 устройства в сегменте сети, длина кабеля сегмента до 1200 м, поддержка сетей MPI и PROFIBUS DP
Изделие: 911-2PN50
Коммутатор Ethernet PN5-RD для сетей PROFINET, управляемый, 5 портов 10/100BaseTX (RJ45)
Изделие: 973-5BE00
(RS-485, 12 Мбит/с), 5 каналов, до 31 устройства в сегменте, длина кабеля в сегменте до 1200 м, поддержка всех протоколов PROFIBUS DP и MPI
Изделие: 973-1BA00
(RS-485, 12 Мбит/с), 2 канала, до 31 устройства в сегменте, длина кабеля в сегменте до 1200 м, поддержка всех протоколов PROFIBUS DP и MPI
