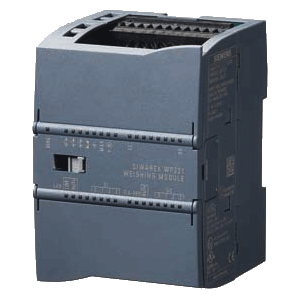

SIWAREX WP241 is a flexible weighing module for belt scales. The compact module is easy to install in the SIMATIC S7-1200 automation system. It can also be operated as a standalone module, i.e. without a SIMATIC CPU.

SIWAREX WP241 offers the following key advantages:

• Uniform design technology and consistent communication in SIMATIC S7-1200
• Uniform configuration with TIA Portal
• Operation without SIMATIC CPU possible
• Direct connection of an operator panel via Ethernet
• Four digital inputs and outputs, one analog output
• Measurement of weight with a high resolution of ± 4 million parts
• Calibration approval MID in accordance with OIML R50 (available soon)
• Simple adjustment of belt scales using the SIWATOOL V7 program via the Ethernet interface - even without knowledge of SIMATIC
• Replacement of module possible without renewed calibration of the scale
• Use in hazardous area zone 2
• Different calibration methods: With test weights, test chain, automatically or via material batch.
• Specification of belt inclination angle
• 6 totalization memories
• Simulation of speed and belt load for test purposes
• Comprehensive diagnostics functions

SIWAREX WP241 is the optimal solution wherever belt scales are used that demand high accuracy, high user-friendliness, and flexible system integration. The typical applications of the SIWAREX WP241 are determining the current material flow rate, belt load and belt speed. Furthermore, 6 totalizers are available for evaluating the amount of material conveyed.

SIWAREX WP241 is a compact technology module in the SIMATIC S7-1200, and it allows direct connection to S7-1200 components via a sliding connector. Thanks to standard rail mounting, the installation and wiring outlay for the 70 mm-wide (2.76 inch) weighing module are very low.
The power supply, load cells, RS 485, digital input/outputs, and analog output are connected via the screw connector of the weighing module. An RJ45 connector is used for the Ethernet connection.

The primary task of the SIWAREX WP241 is to measure the speed of the belt, to measure and convert the sensor voltage to a weight value, and to precisely calculate the amount of material conveyed or material flow rate.
The volume of material conveyed can be recorded in 6 totalization memories: The accumulated totalization memory determines the conveyed material over the entire operating time of the scale (can only be reset by loading the factory settings), the main total is used in applications that need to be officially calibrated (available soon). The four remaining totalization memories are freely available, e.g. for recording the daily or weekly totals.
Four different options are available for rapid commissioning:

• Automatic calibration
  The calibration is calculated automatically using the load cell paramters entered. Only the zero point has to be calculated on the actual plant.
• Calibration with calibration weights or test weights
  Test weights are secured to the weighing equipment and the conveyor belt is started. The calibration values are calculated while the belt is running. The zero point must also be calculated.
• Calibration with test chain
  Instead of test weights, a chain of a known weight can be placed on the measuring points of the belt. The calibration values are calculated as for calibration with test weights.
• Calibration via material test
  This method can be used if a volume of material is available, but neither test weights nor a chain are available. The material can either be preweighed or weighed afterwards. The material is passed over the belt scale, and the weighing module calculates the calibration characteristic autmatically.

If "Automatic set to zero" is active, the electronic weighing system automatically executes a "set to zero" procedure when the belt reaches the "set to zero" area.

Extensive diagnostics functions are available. Diagnostic messages are output to the different interfaces. In simulation mode, both the speed and the belt load can be specified by the user, i.e. simulated. This makes it possible to test many functions in advance without operating belt scales. The digital inputs/outputs and the analog output can also be simulated for testing purposes. The "Trace" function is very helpful for optimizing the plant or when troubleshooting. This records the weighing history stored in the internal module memory (including material flow rate, belt load, speed) and exports it to Excel in a graphical format.

Monitoring of the scale signals and states

The SIWAREX WP241 monitors the belt load, the material flow rate, and the belt speed, and it signals if the limits are exceeded. The respective limits can be parameterized as required.

Consistent and uniform communication between all system components enables fast, reliable and cost-effective integration and diagnosis in industrial processes.

Integration in the plant environment

SIWAREX WP241 can be directly integrated into the SIMATIC S7-1200 via the SIMATIC bus. Standalone operation without SIMATIC is also possible.

A wide variety of connection options are provided via the RS 485 and Ethernet interface. Via Modbus TCP/IP or Modbus RTU, control panels can be connected and it is also possible to communicate with various automation systems. A PC for programming the SIWAREX WP241 via SIWATOOL can be connected to the Ethernet interface.

SIWAREX WP241 can be integrated into the system software using all standard PLC programming languages from the TIA Portal. In contrast to serially linked electronic weighing systems, SIWAREX WP241 does not need costly additional modules to link it to SIMATIC.

Used in conjunction with SIWAREX WP241, it is possible to configure freely programmable, modular weighing systems in SIMATIC, which can be adapted to company-specific requirements as needed.

SIWAREX WP241 "Ready for use"

In addition to the configuration package, fully-featured SIWAREX WP241 "Ready for use" software is also available free-of-charge. It shows beginners how to integrate the module in a STEP 7 program and offers a basis for application programming. This allows you to connect the scale either directly to the SIMATIC CPU or to an operator panel connected directly to the SIWAREX WP241.

Software

There is also the option of using a Windows PC for commissioning and servicing. The program SIWATOOL enables the belt scales to be set without prior knowledge of the automation system, as required. During servicing, the technician can use a PC to quickly and simply analyze and test the procedures in the scale.
The following are just some of the tasks that can be carried out using SIWATOOL V7:

• Parameterization and calibration of the scale
• Testing/Simulation of scale properties
• Recording, analysis and export of scale traces ("Trace")
• Creation of backup files for rapidly replacing modules without calibration

SIWAREX WP241 SIWATOOL

It is also extremely helpful to analyze the diagnostics buffer which can be saved together with the parameters following reading out from the module.
Trace mode is provided to optimize the weighing sequences in the SIWAREX WP241 weighing module. The recorded weight values and associated states can be displayed as trends using SIWATOOL V7 and MS Excel.

Upgrading firmware

An additional program function can be used to download a new firmware version onto the SIWAREX WP241 on site. This means that firmware upgrades can be carried out on site as required anywhere in the world.
