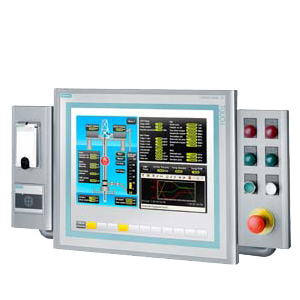

SIMATIC HMI IPC 477C PRO, ОПЦИОНАЛЬНЫЙ КОМПЛЕКТ С WINCC FLEXIBLE 2008/WINAC, СЕНСОРНЫЙ ЭКРАН 15", КОРПУСНОЕ УСТРОЙСТВО IP65, 4 USB (СЗАДИ)
|
Order number |
6AV7883-.....-...0 |
6AV7883-6....-...0 |
6AV7883-7....-...0 | |
|---|---|---|---|---|
|
SIMATIC HMI IPC 477C PRO |
SIMATIC HMI IPC 477C PRO, 15" TOUCH |
SIMATIC HMI IPC 477C PRO, 19" TOUCH | ||
|
Product type designation |
|
|
||
|
Installation type/mounting |
|
|
||
|
maximum permissible installation angle +/- |
20° |
20° |
20° |
|
|
Supply voltage |
|
|
||
|
Type of supply voltage |
24 V DC |
24 V DC |
24 V DC |
|
|
Processor |
|
|
||
|
Processor type |
Intel Celeron M 1.2 GHz, Intel Core2Solo 1.2 GHz or Intel Core2Duo 1.2 GHz |
Intel Celeron M 1.2 GHz, Intel Core2Solo 1.2 GHz or Intel Core2Duo 1.2 GHz |
Intel Celeron M 1.2 GHz, Intel Core2Solo 1.2 GHz or Intel Core2Duo 1.2 GHz |
|
|
Drives |
|
|
||
|
Optical drives |
possible as external drive via USB |
possible as external drive via USB |
possible as external drive via USB |
|
|
Memory |
|
|
||
|
Type of memory |
DDR3-SDRAM |
DDR3-SDRAM |
DDR3-SDRAM |
|
|
Main memory |
512 Mbyte |
512 Mbyte |
512 Mbyte |
|
|
Hardware configuration |
|
|
||
|
Slots |
|
|
||
|
1 x slot for CF card; 1 x slot for SD/MMC |
1 x slot for CF card; 1 x slot for SD/MMC |
1 x slot for CF card; 1 x slot for SD/MMC |
|
|
Interfaces |
|
|
||
|
PROFIBUS/MPI |
1 X CP5611-comptable |
1 X CP5611-comptable |
1 X CP5611-comptable |
|
|
serial interface |
COM1: 1 x V.24 (RS232) |
COM1: 1 x V.24 (RS232) |
COM1: 1 x V.24 (RS232) |
|
|
parallel interface |
0 |
0 |
0 |
|
|
USB port |
4 x High Current |
4 x High Current |
4 x High Current |
|
|
Connection for keyboard/mouse |
USB / USB |
USB / USB |
USB / USB |
|
|
Multimedia |
||||
|
No |
No |
No |
|
|
Special interfaces |
||||
|
No |
No |
No |
|
|
Video interfaces |
|
|
||
|
DVI-I usable for additional display unit (VGA via adapter); color depth 32 bits, 8 to 128 MB Shared Memory |
DVI-I usable for additional display unit (VGA via adapter); color depth 32 bits, 8 to 128 MB Shared Memory |
DVI-I usable for additional display unit (VGA via adapter); color depth 32 bits, 8 to 128 MB Shared Memory |
|
|
Industrial Ethernet |
|
|
||
|
Onboard, 10/100/1000 Mbit/s, RJ45, no plug-in card necessary |
Onboard, 10/100/1000 Mbit/s, RJ45, no plug-in card necessary |
Onboard, 10/100/1000 Mbit/s, RJ45, no plug-in card necessary |
|
|
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
|
|
Monitoring functions |
|
|
||
|
Temperature |
Yes |
Yes |
Yes |
|
|
Watchdog |
Yes |
Yes |
Yes |
|
|
Status LEDs |
No |
No |
No |
|
|
Degree and class of protection |
|
|
||
|
Front |
IP65 (on front) to EN60529 and NEMA4 |
IP65 (on front) to EN60529 and NEMA4 |
IP65 (on front) to EN60529 and NEMA4 |
|
|
IP (at the front) |
65 |
65 |
65 |
|
|
Standards, approvals, certificates |
|
|
||
|
Approval |
CE, cULus (508) |
CE, cULus (508) |
CE, cULus (508) |
|
|
EMC |
CE, EN 55011, EN 61000-6-4, EN 61000-6-2 |
CE, EN 55011, EN 61000-6-4, EN 61000-6-2 |
CE, EN 55011, EN 61000-6-4, EN 61000-6-2 |
|
|
EN 61000-6-2 |
Yes |
Yes |
Yes |
|
|
Marine approval |
|
|
||
|
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
|
|
Ambient conditions |
|
|
||
|
Ambient temperature in operation |
|
|
||
|
With full configuration: +5 °C to +45 °C or +5 °C to +50 °C in installation space, if max. 40 °C at front |
With full configuration: +5 °C to +45 °C or +5 °C to +50 °C in installation space, if max. 40 °C at front |
With full configuration: +5 °C to +45 °C or +5 °C to +50 °C in installation space, if max. 40 °C at front |
|
|
0 °C |
0 °C |
0 °C |
|
|
45 °C |
45 °C |
45 °C |
|
|
Relative humidity |
|
|
||
|
Tested to DIN IEC 60068-2-3, DIN IEC 60068-2-30, DIN IEC 60068-2-56: 5% to 80% at 25 °C (no condensation) |
Tested to DIN IEC 60068-2-3, DIN IEC 60068-2-30, DIN IEC 60068-2-56: 5% to 80% at 25 °C (no condensation) |
Tested to DIN IEC 60068-2-3, DIN IEC 60068-2-30, DIN IEC 60068-2-56: 5% to 80% at 25 °C (no condensation) |
|
|
Vibrations |
|
|
||
|
Tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
Tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
Tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
|
|
Shock testing |
|
|
||
|
Tested to DIN IEC 60068-2-29: 50 m/s² (5g), 30 ms, 100 shocks |
Tested to DIN IEC 60068-2-29: 50 m/s² (5g), 30 ms, 100 shocks |
Tested to DIN IEC 60068-2-29: 50 m/s² (5g), 30 ms, 100 shocks |
|
|
Operating systems |
|
|
||
|
Operating system |
Windows XP Prof. (Multi Language), Windows XP embedded, or optionally without operating system |
Windows XP Prof. (Multi Language), Windows XP embedded, or optionally without operating system |
Windows XP Prof. (Multi Language), Windows XP embedded, or optionally without operating system |
|
|
Additional info on operating system |
Language: EN/DE |
Language: EN/DE |
Language: EN/DE |
|
|
Pre-installed operating system |
Yes |
Yes |
Yes |
|
|
Yes |
Yes |
Yes |
|
|
Software |
|
|
||
|
SIMATIC Software |
Optionally with pre-installed software bundle SIMATIC WinCC flexible or WinCC flexible / WinAC RTX |
Optionally with pre-installed software bundle SIMATIC WinCC flexible or WinCC flexible / WinAC RTX |
Optionally with pre-installed software bundle SIMATIC WinCC flexible or WinCC flexible / WinAC RTX |
|
Полностью защищенное устройство SIMATIC HMI IPC477C PRO 15"/19"
SIMATIC HMI IPC477C PRO - это компактный, высокопроизводительный и не требующий обслуживания панельный компьютер с Windows XP Embedded, идеальная платформа для автоматизации на основе ПК с поддержкой пакетов SIMATIC, таких как WinCC flexible, WinAC RTX / WinAC RTX F или WinCC Client/single-user station.
Конфигурация и встроенные интерфейсы SIMATIC HMI IPC477C PRO:
SIMATIC HMI IPC477C PRO 15" Touch version
SIMATIC HMI IPC477C PRO 19" Touch version
