| Артикул |
342-0IA01 |
|
Производитель |
VIPA |
| 342-0IA01 | Описание | |||
 |

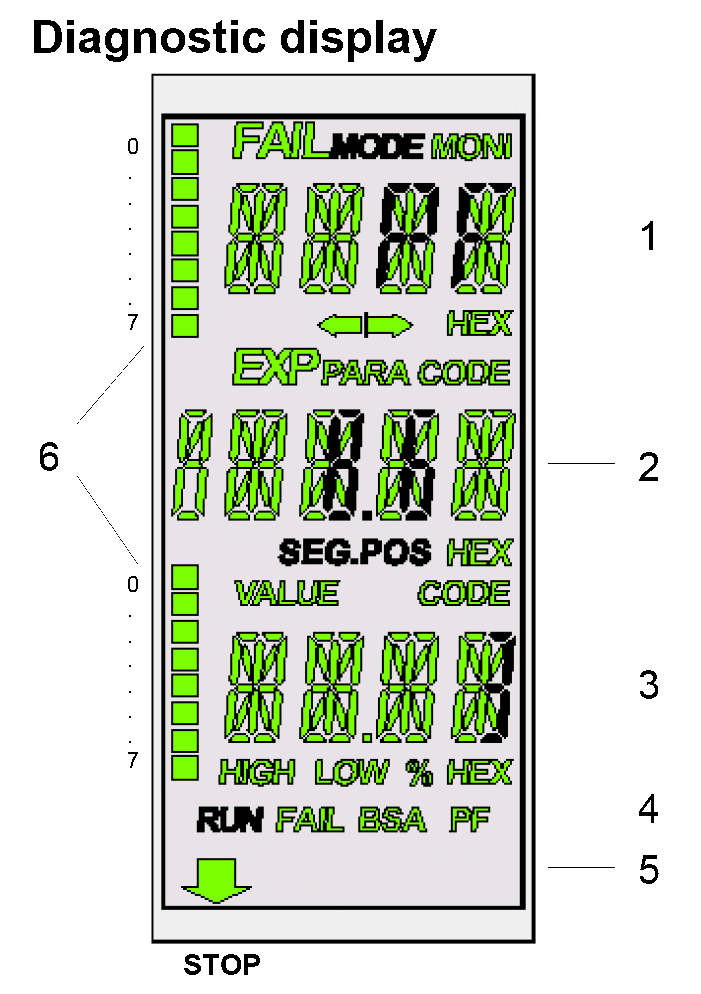

1 |
FAIL |
Indicates that an error has occurred and provides |
|
| MODE |
When MODE active, further menu items may be selected. |
|||
| MONI | Indicates that monitor mode is activated. | |||
|
HEX |
The value in the 1. main line is displayed in hexadecimal notation. If the HEX segment is not activated, the value is displayed in decimal notation. |
|||
| 2 | PARA | The displayed value is a parameter of a message. | ||
| CODE | The displayed value represents a code. | |||
|
SEG.POS |
The displayed value is a device number (bus segment and position). |
|||
| HEX |
The value in the 2. main line is displayed in hexadecimal notation. If the HEX segment is not activated, the value is displayed in decimal notation. |
|||
| 3 | VALUE | The displayed number is a value. | ||
| CODE | The displayed value represents a code. | |||
| HIGH | The displayed number is a high-order word of a 32bit value. | |||
| LOW | The displayed number is a low-order word of a 32bit value. | |||
| % | The displayed number is a percentage term. | |||
| HEX |
The value in the 3. main line is displayed in hexadecimal notation. If the HEX segment is not activated, the value is displayed in decimal notation. |
|||
| 4 | RUN |
Indicates the current operating state of the IBS master: Off: Interbus at state READY or BOOT Flashes: Interbus at state ACTIVE On: Interbus at state RUN |
||
| FAIL | Active in the event of controller, user or bus errors. | |||
| BSA |
(Bus Segment Aborted) Active when a bus segment is switched off and inactive when all segments are switched on again. |
|||
| PF |
(Peripheral Fault) Active when a device indicates a peripheral fault. |
|||
| 5 | CPU-STOP status |
If the superimposed CPU is in STOP state, an arrow appears in the bottom line of the display pointing to the "STOP" label of the front panel. |
||
| 6 |
Status- |
The 16 status segments for the binary |
||
| Order no. | Name/Description |
|---|---|
|
342-0IA01 |

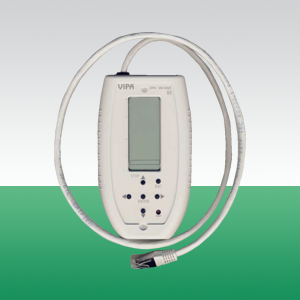

CP 342 IBS - Configuration/diagnosis module LC display, 7 buttons, cable 0.5 m, RJ45 plug, for 342-2IA71 |
|
390-1AB60 |
Profile rail Length: 160 mm |
|
390-1AE80 |
Profile rail Length: 482 mm |
|
390-1AF30 |
Profile rail Length: 530 mm |
|
390-1AJ30 |
Profile rail Length: 830 mm |
|
390-1BC00 |
Profile rail Length: 2000 mm |
|
390-9AB60 |
Profile rail Length: 160 mm, ECO pack: 100 pieces |
|
390-9AE80 |
Profile rail Length: 482 mm, ECO pack: 32 pieces |
|
390-9AF30 |
Profile rail Length: 530 mm, ECO pack: 32 pieces |
|
390-9AJ30 |
Profile rail Length: 830 mm, ECO pack: 20 pieces |
|
390-9BC00 |
Profile rail Length: 2000 mm, ECO pack: 10 pieces |
|
391-1AF10 |
BP 391 - SPEED-Bus Profile rail, 530 mm with integrated High-SPEED rear panel bus for 2 expansion slots |
|
391-1AF30 |
BP 391 - SPEED-Bus Profile rail, 530 mm with integrated High-SPEED rear panel bus for 6 expansion slots |
|
391-1AF50 |
BP 391 - SPEED-Bus Profile rail, 530 mm with integrated High-SPEED rear panel bus for 10 expansion slots |
|
391-1AJ10 |
BP 391 - SPEED-Bus Profile rail, 830 mm with integrated High-SPEED rear panel bus for 2 expansion slots, left justified |
|
391-1AJ30 |
BP 391 - SPEED-Bus Profile rail, 830 mm with integrated High-SPEED rear panel bus for 6 expansion slots, left justified |
|
391-1AJ50 |
BP 391 - SPEED-Bus Profile rail, 830 mm with integrated High-SPEED rear panel bus for 10 expansion slots, left justified |
|
392-1AJ00 |
Front connector 20pole with screw contact |
|
392-1AM00 |
Front connector 40pole with screw contact |
|
392-1BJ00 |
Front connector 20pole with cage clamps |
|
392-1BM01 |
Front connector 40pole with cage clamps |
|
392-9AJ00 |
Front connector 20pole with screw contact, ECO pack: 100 pieces |
|
392-9AM00 |
Front connector 40pole with screw contact, ECO pack: 100 pieces |
|
922-3BC50 |
Preassembled front connectors with screw contact, for 300 series, 2.5m, 20 pin with 20 single cores 0,5 mm², all the wires are marked at regular intervals with wire numbers |
|
922-3BD20 |
Preassembled front connectors with screw contact, for 300 series, 3.2m, 20 pin with 20 single cores 0,5 mm², all the wires are marked at regular intervals with wire numbers |
|
922-3BF00 |
Preassembled front connectors with screw contact, for 300 series, 5.0m, 20 pin with 20 single cores 0,5 mm², all the wires are marked at regular intervals with wire numbers |
|
922-6BC50 |
Preassembled front connectors with screw contact, for 300 series, 2.5m, 40 pin with 40 single cores 0,5 mm², all the wires are marked at regular intervals with wire numbers |
|
922-6BD20 |
Preassembled front connectors with screw contact, for 300 series, 3.2m, 40 pin with 40 single cores 0,5 mm², all the wires are marked at regular intervals with wire numbers |
|
922-6BF00 |
Preassembled front connectors with screw contact, for 300 series, 5.0m, 40 pin with 40 single cores 0,5 mm², all the wires are marked at regular intervals with wire numbers |
|
953-0KX10 |
MMC - MultiMediaCard Extension memory for VIPA CPUs 11x, 21x, 24x, 31x, 51x, and 208-1DP01, CC 03 (for load memory not necessary) |
|
953-1LE00 |
Memory Configuration Card (MCC) 32kByte for SPEED7 CPUs, 16kByte program/16kByte data |
|
953-1LF00 |
Memory Configuration Card (MCC) 64kByte for SPEED7 CPUs, 32kByte program/32kByte data |
|
953-1LG00 |
Memory Configuration Card (MCC) 128kByte for SPEED7 CPUs, 64kByte program/64kByte data |
|
953-1LH00 |
Memory Configuration Card (MCC) 256kByte for SPEED7 CPUs, 128kByte program/128kByte data |
|
953-1LJ00 |
Memory Configuration Card (MCC) 512kByte for SPEED7 CPUs, 256kByte program/256kByte data |
|
953-1LK00 |
Memory Configuration Card (MCC) 1MByte for SPEED7 CPUs, 512kByte program/512kByte data |
|
953-1LL00 |
Memory Configuration Card (MCC) 2MByte for SPEED7 CPUs, 1MByte program/1MByte data |
|
953-1LM00 |
Memory Configuration Card (MCC) 4MByte for SPEED7 CPUs, 2MByte program/2MByte data |
|
953-1LP00 |
Memory Configuration Card (MCC) 8MByte for SPEED7 CPUs, 4MByte program/4MByte data |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Изделие: 341-2CH71
Для шины SPEED-Bus, 2 канала RS-422/485, соединители SubD 9 (розетка), поддержка протоколов ASCII и STX/ETX, гальваническая изоляция, скорость передачи до 115,2 кбит/с
Изделие: 341-1CH01
Интерфейс RS-422/485, соединитель SubD 9, поддержка протоколов Modbus Master, ASCII и 3964(R), гальва-ническая изоляция, скорость передачи до 76,8 кбит/с
Изделие: 342-1CA70
Для шины SPEED-Bus, ведущее устройство сети CANopen, поддержка до 125 ведомых устройств, конфигурирование с помощью ПО VIPA WinCoCT
Изделие: 342-1DA70
Для шины SPEED-Bus, ведущее устройство сети PROFIBUS DP (RS-485, 12 Мбод, Class 1), поддержка до 124 ведомых устройств, конфигурирование с помощью Siemens SIMATIC Manager
