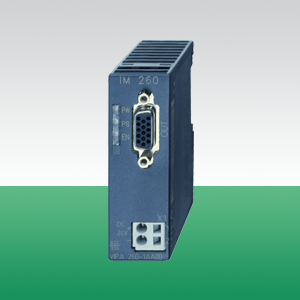

Interface module IM260 260-1AA00
Интерфейсные модули обеспечивают подключение к одному базовому блоку контроллера до 3 стоек расширения
| Базовый интерфейсный модуль | |
| Стоек с модулями максимум | 4 |
| Максимальное количество модулей дискретных/аналоговых | 16/16 |

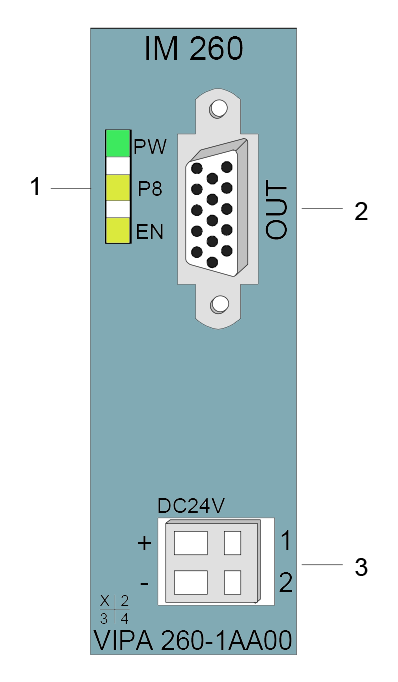

| Индикация состояния IM | Модуль IM | Описание | |
|
PW Наличие напряжения питания |
 |
|
Order no. |
260-1AA00 |
| Type | IM 260, Basic interface |
General information |
|
| Note | - |
| Features | Only be used in conjunction with the PC 288 or a CPU |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection |  |
| Current consumption (no-load operation) | 50 mA |
| Current consumption (rated value) | 1.9 A |
| Inrush current | - |
| Max. current drain at backplane bus | 4 A |
| Max. current drain load supply | - |
| Power loss | 2 W |
Status information, alarms, diagnostics |
|
| Status display | yes |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | no |
| Diagnostic functions | no |
| Diagnostics information read-out | none |
| Supply voltage display | yes |
| Group error display | none |
| Channel error display | none |
Hardware configuration |
|
| Racks, max. | 4 |
| Modules per rack, max. | 16 |
| Number of digital modules, max. | 16 |
| Number of analog modules, max. | 16 |
Housing |
|
| Material | PPE / PA 6.6 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 25.4 mm x 76 mm x 78 mm |
| Weight | 100 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
| Order no. | Name/Description | |
|---|---|---|
|
253-1CA01 |
IM 253CAN - CANopen slave␍ CANopen slave 10 Rx and 10 Tx PDO 2 SDOs PDO linking PDO mapping |
 [Datasheet] [Manual] |
|
253-1CA30 |
IM 253CAN - CANopen slave ECO␍ CANopen slave 10 Rx and 10 Tx PDO 2 SDOs PDO linking PDO mapping |
[Datasheet] [Manual] |
|
253-1DN00 |
IM 253DN - DeviceNET slave␍ Group 2 only Device - employs predefined connection set Baud rates: 125, 250, 500 kBit/s For max. 32 peripheral modules (8 analog) |
[Datasheet] [Manual] |
|
253-1DP01 |
IM 253DP - PROFIBUS-DP slave␍ PROFIBUS-DP slave (DP-V0, DP-V1) For max. 32 peripheral modules (16 analog) 244 Byte input and 244 Byte output data |
[Datasheet] [Manual] |
|
253-1DP11 |
IM 253DPO - PROFIBUS-DP slave␍ PROFIBUS-DP slave (DP-V0, DP-V1) For max. 32 peripheral modules (16 analog) 244 Byte input and 244 Byte output data LWL-Interface (POF, HCS) |
[Datasheet] [Manual] |
|
253-1DP31 |
IM 253DP - PROFIBUS-DP slave ECO␍ PROFIBUS-DP slave (RS485, DP-V0, DP-V1) For max. 8 peripheral modules 244 Byte input and 244 Byte output data |
[Datasheet] [Manual] |
|
253-1IB00 |
IM 253IBS - INTERBUS slave␍ INTERBUS slave For 16 input and 16 output modules |
[Datasheet] [Manual] |
|
253-1NE00 |
IM 253NET - Ethernet slave␍ Ethernet coupler with Modbus/TCP and Siemens S5 Header protocol For max. 32 peripheral modules Max. 256 Byte I/O data RJ45 jack 100BaseTX, 10BaseT |
[Datasheet] [Manual] |
|
260-1AA00 |
IM 260 - Interface module␍ Only be used in conjunction with the PC 288 or a CPU |
[Datasheet] [Manual] |
|
261-1CA00 |
IM 261 - Interface module␍ Only be used in conjunction with the PC 288 or a CPU |
[Datasheet] [Manual] |
