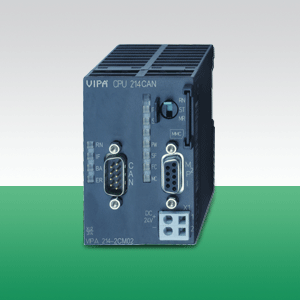

CPU 214, 96kB/144kB, MP2I, CANopen master

Изделие: 214-2CM03

Краткое описание:

Рабочая память 96 кбайт, загрузочная память 144 кбайт, порт MP2I, гнездо MMC, порт CANopen (ведущее устройство)

Производитель: VIPA
Вес: 0.15 кг.

Розничная цена: 305373

БЫСТРЫЙ ЗАКАЗ

PLC CPU214 214-2CM03

Память программ/данных

Адресное пространство

Расширение входов/выходов

Интерфейсы

Питание

96 кбайт рабочей памяти
144 кбайт загрузочной памяти
Возможность расширения памяти, ММС (512 Мбайт)
Битовая операция 0,18 мкс
Байтовая операция 0,78 мкс
Программирования: WinPLС7, STEP7

Кол-во блоков данных: 2047
Максимальный размер блока данных 16 кбайт
Флаги: 8192 бит
Таймеры/счётчики: 256/256
Блоки FB/FC/OB: 1024/1024/14
Адресуемых вх./вых.: 1024/1024 байт
RTC - аккумулятор
Энергонезависимая память: 30 дней макс.

Модулей на ЦПУ не более 32

MP2I,

CANopen master

24 VDC

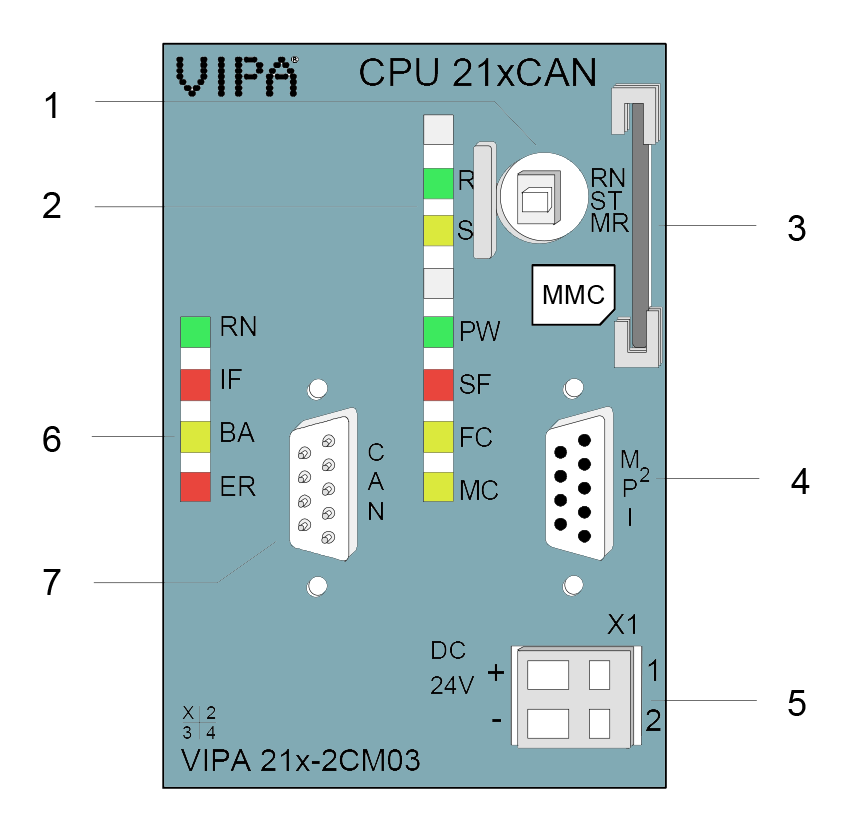

Индикация состояния

Модуль ЦПУ

Описание

ЦПУ:
R ЦПУ в режиме RUN
S   ЦПУ в режиме STOP
PW Наличие напряжения питания на ЦПУ
SF   Системная ошибка
FС   Режим FORCE активирован
MC Обращение к карте памяти

CAN master

RN CAN master в режиме RUN

IF Инициализация

BA Шина активна

ER Ошибка

Переключатель режима работы
Индикатор состояния сетевого интерфейса ЦПУ
Гнездо для карты MMC
Порт MP2I (программирование, подключение HMI)
Клеммы питания 24 В пост. тока
Индикатор состояния сетевого интерфейса
CAN master
Порт CAN master

Order no.	214-2CM03
Type	CPU 214CAN
General information
Note	-
Features	CANopen master 96 kB work memory 144 kB load memory
Technical data power supply
Power supply (rated value)	DC 24 V
Power supply (permitted range)	DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation)	110 mA
Current consumption (rated value)	1.5 A
Inrush current	65 A
I²t	0.75 A²s
Max. current drain at backplane bus	3 A
Power loss	5 W
Technical data power supply
Power supply (rated value)	DC 24 V
Power supply (permitted range)	DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation)	110 mA
Current consumption (rated value)	1.5 A
Inrush current	65 A
I²t	0.75 A²s
Max. current drain at backplane bus	3 A
Max. current drain load supply	-
Power loss	5 W
Load and working memory
Load memory, integrated	144 KB
Load memory, maximum	144 KB
Work memory, integrated	96 KB
Work memory, maximal	96 KB
Memory divided in 50% program / 50% data	-
Memory card slot	MMC-Card with max. 512 MB
Hardware configuration
Racks, max.	4
Modules per rack, max.	total max. 32
Number of integrated DP master	-
Number of DP master via CP	8
Operable function modules	32
Operable communication modules PtP	32
Operable communication modules LAN	-
Command processing times
Bit instructions, min.	0.18 µs
Word instruction, min.	0.78 µs
Double integer arithmetic, min.	1.8 µs
Floating-point arithmetic, min.	40 µs
Timers/Counters and their retentive characteristics
Number of S7 counters	256
S7 counter remanence	adjustable 0 up to 64
S7 counter remanence adjustable	C0 .. C7
Number of S7 times	256
S7 times remanence	adjustable 0 up to 128
S7 times remanence adjustable	not retentive
Data range and retentive characteristic
Number of flags	8192 Bit
Bit memories retentive characteristic adjustable	adjustable 0 up to 256
Bit memories retentive characteristic preset	MB0 .. MB15
Number of data blocks	2047
Max. data blocks size	16 KB
Number range DBs	1 ... 2047
Max. local data size per execution level	1024 Byte
Max. local data size per block	1024 Byte
Blocks
Number of OBs	14
Maximum OB size	16 KB
Total number DBs, FBs, FCs	-
Number of FBs	1024
Maximum FB size	16 KB
Number range FBs	0 ... 1023
Number of FCs	1024
Maximum FC size	16 KB
Number range FCs	0 ... 1023
Maximum nesting depth per priority class	8
Maximum nesting depth additional within an error OB	1
Time
Real-time clock buffered
Clock buffered period (min.)	30 d
Type of buffering	Vanadium Rechargeable Lithium Battery
Load time for 50% buffering period	20 h
Load time for 100% buffering period	48 h
Accuracy (max. deviation per day)	10 s
Number of operating hours counter	8
Clock synchronization	-
Synchronization via MPI	-
Synchronization via Ethernet (NTP)	-
Address areas (I/O)
Input I/O address area	1024 Byte
Output I/O address area	1024 Byte
Process image adjustable	-
Input process image preset	128 Byte
Output process image preset	128 Byte
Input process image maximal	128 Byte
Output process image maximal	128 Byte
Digital inputs	8192
Digital outputs	8192
Digital inputs central	512
Digital outputs central	512
Integrated digital inputs	-
Integrated digital outputs	-
Analog inputs	512
Analog outputs	512
Analog inputs, central	128
Analog outputs, central	128
Integrated analog inputs	-
Integrated analog outputs	-
Communication functions
PG/OP channel
Global data communication
Number of GD circuits, max.	4
Size of GD packets, max.	22 Byte
S7 basic communication
S7 basic communication, user data per job	76 Byte
S7 communication
S7 communication as server
S7 communication as client	-
S7 communication, user data per job	160 Byte
Number of connections, max.	16
Functionality Sub-D interfaces
Type	MP²I
Type of interface	RS485
Connector	Sub-D, 9-pin, female
Electrically isolated	-
MPI
MP²I (MPI/RS232)
DP master	-
DP slave	-
Point-to-point interface	-

Type	CAN
Type of interface	CAN
Connector	Sub-D, 9-pin, male
Electrically isolated
MPI	-
MP²I (MPI/RS232)	-
DP master	-
DP slave	-
Point-to-point interface	-
Functionality MPI
Number of connections, max.	16
PG/OP channel
Routing	-
Global data communication
S7 basic communication
S7 communication
S7 communication as server
S7 communication as client	-
Transmission speed, min.	19.2 kbit/s
Transmission speed, max.	187.5 kbit/s
Datasizes
Input bytes	0
Output bytes	0
Parameter bytes	3
Diagnostic bytes	0
Housing
Material	PPE / PA 6.6
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	50.8 mm x 76 mm x 80 mm
Weight	150 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL508 certification	yes
