CPU 215, 128kB/192kB, MP2I, RJ45 (Ethernet PG/OP), TIA

Изделие: 215-2BE06

Краткое описание:

Рабочая память 128 кбайт, загрузочная память 196 кбайт, порт MP2I, гнездо MMC, порт Ethernet PG/OP (RJ45), совместимость с TIA Portal

Производитель: VIPA
Вес: 0.15 кг.

Розничная цена: 317292

БЫСТРЫЙ ЗАКАЗ

PLC CPU215PG 215-2BE06

Память программ/данных

Адресное пространство

Расширение входов/выходов

Интерфейсы

Питание

128 кбайт рабочей памяти
192 кбайт загрузочной памяти
Возможность расширения памяти, ММС (512 Мбайт)
Битовая операция 0,18 мкс
Байтовая операция 0,78 мкс
Программирования: WinPLС7, STEP7, TIA Portal

Кол-во блоков данных: 2047
Максимальный размер блока данных 16 кбайт
Флаги: 8192 бит
Таймеры/счётчики: 256/256
Блоки FB/FC/OB: 1024/1024/14
Адресуемых вх./вых.: 1024/1024 байт
RTC - аккумулятор
Энергонезависимая память: 30 дней макс.

Модулей на ЦПУ не более 32

MP2I, RJ45,

порт Ethernet PG/OP

24 VDC

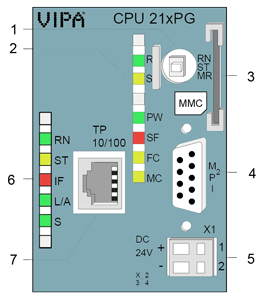

Модуль ЦПУ	Описание
	Переключатель режима работы Индикатор состояния сетевого интерфейса ЦПУ Гнездо для карты MMC Порт MP²I Клеммы питания 24 В пост. тока Индикатор состояния сетевого интерфейса Ethernet PG/OP Порт Ethernet PG/OP

Разъем DC 24V	Описание	Ethernet PG/OP interface	Описание	MP²I interface	Описание
	+ DC 24 V 0 V		Передача + Передача - Прием + - - Прием - - -		Резервный M24V RxD/TxD-P (line B) RTS M5V P5V P24V RxD/TxD-N (line A) Не используется

LEDs CPU

R (RUN)	S (STOP)	SF (SFAIL)	FC (FRCE)	MC (MMC)	Meaning

○	●	X	X	X	CPU is in STOP state
B	○	X	X	X	CPU is in start-up state, the RUN LED blinks during operating OB100 at least for 3s.
●	○	○	X	X	CPU is in state RUN without error.
X	X	●	X	X	There is a system fault. More information may be found in the diagnostics buffer of the CPU.
X	X	X	●	X	Variables are forced.
X	X	X	X	B	Access to the memory card.
Overall reset
○	B	X	X	X	Overall reset is executed.
○	●	X	X	X	Overall reset finished.
Factory reset
●	●	○	○	○	Factory reset is executed.
○	●	○	○	○	Factory reset finished without error.
Firmware update
○	○	B	B	●	The alternate blinking indicates that there is new firmware on the memory card.
○	●	●	●	●	Firmware update finished without error.
○	B	B	B	B	Blinking: Error during Firmware update.
on: ● \| off: ○ \| blinking: B \| not relevant: X

LEDs Ethernet PG/OP channel

Name	Color	Description
RN (RUN)		●	Ethernet PG/OP channel is initialized
RN (RUN)		○	Ethernet PG/OP channel is deactivated
ST (STOP)		●	Ethernet PG/OP channel is deactivated
ST (STOP)		○	Ethernet PG/OP channel is initialized
IF (Internal error)		●	Ethernet PG/OP channel reports internal error
L/A (Link/Activity)		●	Ethernet PG/OP channel is physically connected to Ethernet
		○	There is no physically connection to Ethernet.
		B	Irregular flashing: Indicates communication of the Ethernet PG/OP channel via Ethernet
S (Speed)		●	Transfer speed: 100MBit/s
S (Speed)		○	Transfer speed: 10MBit/s
on: ● \| off: ○ \| blinking: B

Order no.	215-2BE06
Type	CPU 215PG
General information
Note	-
Features	Twisted pair Ethernet via RJ45 for PG/OP communication 128 kB work memory 192 kB load memory also configurable via TIA-Portal
Technical data power supply
Power supply (rated value)	DC 24 V
Power supply (permitted range)	DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation)	140 mA
Current consumption (rated value)	1.5 A
Inrush current	65 A
I²t	0.75 A²s
Max. current drain at backplane bus	3 A
Max. current drain load supply	-
Power loss	6 W
Load and working memory
Load memory, integrated	192 KB
Load memory, maximum	192 KB
Work memory, integrated	128 KB
Work memory, maximal	128 KB
Memory divided in 50% program / 50% data	-
Memory card slot	MMC-Card with max. 512 MB
Hardware configuration
Racks, max.	4
Modules per rack, max.	total max. 32
Number of integrated DP master	-
Number of DP master via CP	8
Operable function modules	32
Operable communication modules PtP	32
Operable communication modules LAN	-
Command processing times
Bit instructions, min.	0.18 µs
Word instruction, min.	0.78 µs
Double integer arithmetic, min.	1.8 µs
Floating-point arithmetic, min.	40 µs
Timers/Counters and their retentive characteristics
Number of S7 counters	256
S7 counter remanence	adjustable 0 up to 255
S7 counter remanence adjustable	C0 .. C7
Number of S7 times	256
S7 times remanence	adjustable 0 up to 255
S7 times remanence adjustable	not retentive
Data range and retentive characteristic
Number of flags	8192 Bit
Bit memories retentive characteristic adjustable	adjustable 0 up to 1023
Bit memories retentive characteristic preset	MB0 .. MB15
Number of data blocks	2047
Max. data blocks size	16 KB
Number range DBs	1 ... 2047
Max. local data size per execution level	1024 Byte
Max. local data size per block	1024 Byte
Blocks
Number of OBs	14
Maximum OB size	16 KB
Total number DBs, FBs, FCs	-
Number of FBs	1024
Maximum FB size	16 KB
Number range FBs	0 ... 1023
Number of FCs	1024
Maximum FC size	16 KB
Number range FCs	0 ... 1023
Maximum nesting depth per priority class	8
Maximum nesting depth additional within an error OB	1
Time
Real-time clock buffered
Clock buffered period (min.)	30 d
Type of buffering	Vanadium Rechargeable Lithium Battery
Load time for 50% buffering period	20 h
Load time for 100% buffering period	48 h
Accuracy (max. deviation per day)	10 s
Number of operating hours counter	8
Clock synchronization	-
Synchronization via MPI	-
Synchronization via Ethernet (NTP)	-
Address areas (I/O)
Input I/O address area	1024 Byte
Output I/O address area	1024 Byte
Process image adjustable	-
Input process image preset	128 Byte
Output process image preset	128 Byte
Input process image maximal	128 Byte
Output process image maximal	128 Byte
Digital inputs	8192
Digital outputs	8192
Digital inputs central	512
Digital outputs central	512
Integrated digital inputs	-
Integrated digital outputs	-
Analog inputs	512
Analog outputs	512
Analog inputs, central	128
Analog outputs, central	128
Integrated analog inputs	-
Integrated analog outputs	-
Communication functions
PG/OP channel
Global data communication
Number of GD circuits, max.	4
Size of GD packets, max.	22 Byte
S7 basic communication
S7 basic communication, user data per job	76 Byte
S7 communication
S7 communication as server
S7 communication as client	-
S7 communication, user data per job	160 Byte
Number of connections, max.	16
Functionality Sub-D interfaces
Type	MP²I
Type of interface	RS485
Connector	Sub-D, 9-pin, female
Electrically isolated	-
MPI
MP²I (MPI/RS232)
Point-to-point interface	-
5V DC Power supply	max. 90mA, non-isolated
24V DC Power supply	max. 100mA, non-isolated
Functionality MPI
Number of connections, max.	16
PG/OP channel
Routing	-
Global data communication
S7 basic communication
S7 communication
S7 communication as server
S7 communication as client	-
Transmission speed, min.	19.2 kbit/s
Transmission speed, max.	187.5 kbit/s
Functionality RJ45 interfaces
Type	TP
Type of interface	Ethernet 10/100 MBit
Connector	RJ45
Electrically isolated
PG/OP channel
Number of connections, max.	8
Productive connections
Ethernet communication CP
Number of configurable connections, max.	16
Number of productive connections by Siemens NetPro, max.	16
S7 connections	-
User data per S7 connection, max.	-
TCP-connections	FETCH PASSIV, WRITE PASSIV, Connection of passive data handling
User data per TCP connection, max.	64 KB
ISO-connections	-
User data per ISO connection, max.	-
ISO on TCP connections (RFC 1006)	FETCH PASSIV, WRITE PASSIV, Connection of passive data handling
User data per ISO on TCP connection, max.	32 KB
UDP-connections	-
User data per UDP connection, max.	-
UDP-multicast-connections	-
UDP-broadcast-connections	-
Datasizes
Input bytes	0
Output bytes	0
Parameter bytes	3
Diagnostic bytes	0
Housing
Material	PPE / PA 6.6
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	50.8 mm x 76 mm x 80 mm
Net weight	150 g
Weight including accessories	-
Gross weight	-
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL certification	in preparation
KC certification	-
