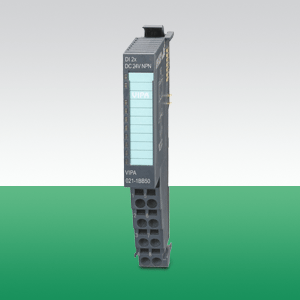

SM 021, 4DI, DC 24V, Low

Изделие: 021-1BD50

Краткое описание:

4 канала 24 В пост. тока, отрицательная логика

Производитель: VIPA
Вес: 0.1 кг.

Розничная цена: 12741

БЫСТРЫЙ ЗАКАЗ

SM 021 021-1BD50

Модуль дискретного ввода, 4 канала 24 В пост. тока, отрицательная логика

Наименование	Модуль дискретных входов SM 021, DI 4xDC 24V, NPN
Тип	021-1BD50
Габаритные размеры, В х Ш х Г, мм	12.9 mm x 109 mm x 76.5 mm
Температура окружающей среды	0 °C .. 60 °C
Количество входов	4
Тип входного сигнала	24VDC

Locking lever terminal module
Labeling strip
Backplane bus
LED status indication
DC 24V power section supply
Electronic module
Terminal module
Locking lever electronic module
Terminal

Status indication

RUN	MF	DI x	Description
green	red	green
●	○	X	Bus communication is OK Module status is OK
●	●	X	Bus communication is OK Module status reports an error
○	●	X	Bus communication is not possible Module status reports an error
○	○	X	Error at bus power supply
X	B	X	Error in configuration
●	○	●	Digital input has signal "1"
●	○	○	Digital input has signal "0"
on: ● \| off: ○ \| blinks with 2Hz: B \| not relevant: X

Pin assignment

PM - Power module	Pos.	Function	Type	Description
	1	DI 0	I	Digital input DI 0
	2	0V	O	GND
	3	DI 2	I	Digital input DI 2
	4	0V	O	GND
	5	DI 1	I	Digital input DI 1
	6	0V	O	GND
	7	DI 3	I	Digital input DI 3
	8	0V	O	GND

I: Input, O: Output

Order no.	021-1BD50
Type	SM 021
Module ID	0004 9F84
General information
Note	-
Features	4 inputs Active low input
Current consumption/power loss
Current consumption from backplane bus	65 mA
Power loss	0.6 W
Technical data digital inputs
Number of inputs	4
Cable length, shielded	1000 m
Cable length, unshielded	600 m
Rated load voltage	-
Current consumption from load voltage L+ (without load)	-
Rated value	DC 20.4...28.8 V
Input voltage for signal "0"	DC 15...28.8 V
Input voltage for signal "1"	DC 0...5 V
Input voltage hysteresis	-
Frequency range	-
Input resistance	-
Input current for signal "1"	3 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current	0.5 mA
Input delay of "0" to "1"	3 ms
Input delay of "1" to "0"	3 ms
Number of simultaneously utilizable inputs horizontal configuration	4
Number of simultaneously utilizable inputs vertical configuration	4
Input characteristic curve	-
Initial data size	4 Bit
Status information, alarms, diagnostics
Status display	green LED per channel
Interrupts	no
Process alarm	no
Diagnostic interrupt	no
Diagnostic functions	no
Diagnostics information read-out	none
Module state	green LED
Module error display	red LED
Channel error display	none
Isolation
Between channels	-
Between channels of groups to	-
Between channels and backplane bus
Insulation tested with	DC 500 V
Safety
Safety protocol	-
Safety requirements	-
Secure user address	-
Watchdog	-
Two channels	-
Test pulse outputs	-
Datasizes
Input bytes	1
Output bytes	0
Parameter bytes	0
Diagnostic bytes	0
Housing
Material	PPE / PPE GF10
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	12.9 mm x 109 mm x 76.5 mm
Weight	60 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL508 certification	yes
