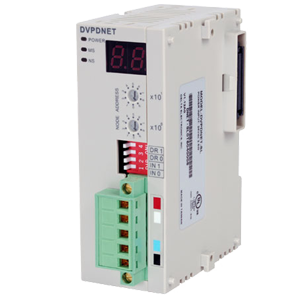

Master communication module
Features
‧For DVP-EH2-L, DVP-SX2 and DVP-SV series PLC only
‧Supports DeviceNet protocol
‧Connectable to 64 slaves
‧Max. baudrate: 500k bps
‧Max. network length: 500m
‧RTU mapping
Specifications
‧Transmission method: CAN
‧Connector: Removable, 5.08mm
‧Message type: Explicit, I/O polled, bit-strobed, COS/CC
‧Serial baudrate: 125k, 250k, 500k bps
‧Network voltage: 24 VDC (11 to 25 VDC), supplied by power cable on the network
‧Power consumption: 1.7 W
‧Electrical isolation: 500 VDC
| Download Catalogue | |||
| File Name | Language | Issue Date | File Size |
| Industrial Fieldbus Solutions | English | 2011-03-07 |
7.17MB |
| DVP Application Manual | |||||
| File Name | Explanation | Language | Issue Date | File Size | |
| DVPDNET-SL DeviceNet Network Scanner | DVP-PLC Application Manual: Extension Module | English | 2012-06-18 | 1.23MB | |
| High speed network communication- specific for SV series | |||||
| File Name | Explanation | Language | Issue Date | File Size | |
| DVPDNET-SL | DeviceNet Network Scanner | Multilingual | 2013-11-21 | 871KB | |
