BACK COVER IP20 15", ACCESSORIES FOR IPC477D 15" MT, COLOR BLACK, DEGREE OF PROTECTION IP20, VESA 100, INCL. 4 SCREWS FOR MOUNTING, NOT FOR IPC477D WITH DVD/PCIE EXTENSION
Back cover display diagonal |
15" |
19" |
22" |
---|---|---|---|
General features |
|||
Design/mounting |
|||
|
No |
No |
No |
|
Yes |
Yes |
Yes |
Degree of protection and protection class |
|||
IP (rear) |
As installed device |
As installed device |
As installed device |
Standards, approvals, certificates |
|||
CE |
Yes |
Yes |
Yes |
Ambient conditions |
|||
Operating temperature |
|||
|
As installed device |
As installed device |
As installed device |
|
40 °C |
40 °C |
40 °C |
Storage/transport temperature |
|||
|
-20 °C |
-20 °C |
-20 °C |
|
60 °C |
60 °C |
60 °C |
Relative humidity |
|||
|
95 % non-condensing |
95 % non-condensing |
95 % non-condensing |
Mechanics/material |
|||
Aluminum |
Yes |
Yes |
Yes |
Dimensions |
|||
Width |
415 mm |
483 mm |
560 mm |
Height |
310 mm |
337 mm |
380 mm |
Depth (cover only) |
90 mm |
90 mm |
90 mm |
Weight |
Approx. 1.6 kg |
Approx. 1.9 kg |
Approx. 2.2 kg |
Scope of delivery |
|

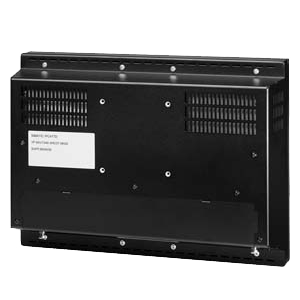

Back cover IP20, side view
Back cover IP20, partly installed
The back covers in IP20 design are ideal for simple mounting of Panels, Panel PCs, Flat Panels and industrial Thin Clients on VESA 100 brackets.
They are screwed onto the device and implement low-cost wall-mounting or connection to a supporting arm system.
Back covers are available for display size 15", 19" and 22" for the following SIMATIC HMI devices:
1) IPC477D 15" is only available as a Single Touch version.
