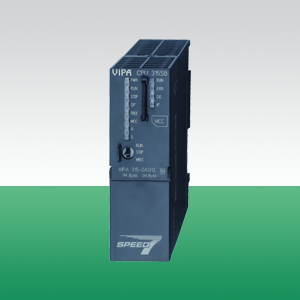

CPU 315SB/DPM-Speed7 технология, DC 24V, рабочая память 1MB…2МВ, MMC/SD, MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP Master или PtP), cовместимость с TIA Portal
|
Наименование
|
CPU 315SB/DPM |
|
Тип
|
315-2AG23 |
|
Описание
|
Используются для контроля и управления сложных технологических процессов. |
|
Габаритные размеры, В х Ш х Г, мм
|
40 mm x 125 mm x 120 mm |
|
Сайт производителя
|
www.vipa.com |
|
Температура окружающей среды
|
0 °C .. 60 °C |
|
Серия
|
300S+ |
|
Поддерживаемые протоколы
|
MPI; PtP; PG/OP; PROFIBUS-DP master |
|
Объем памяти
|
1 MB |

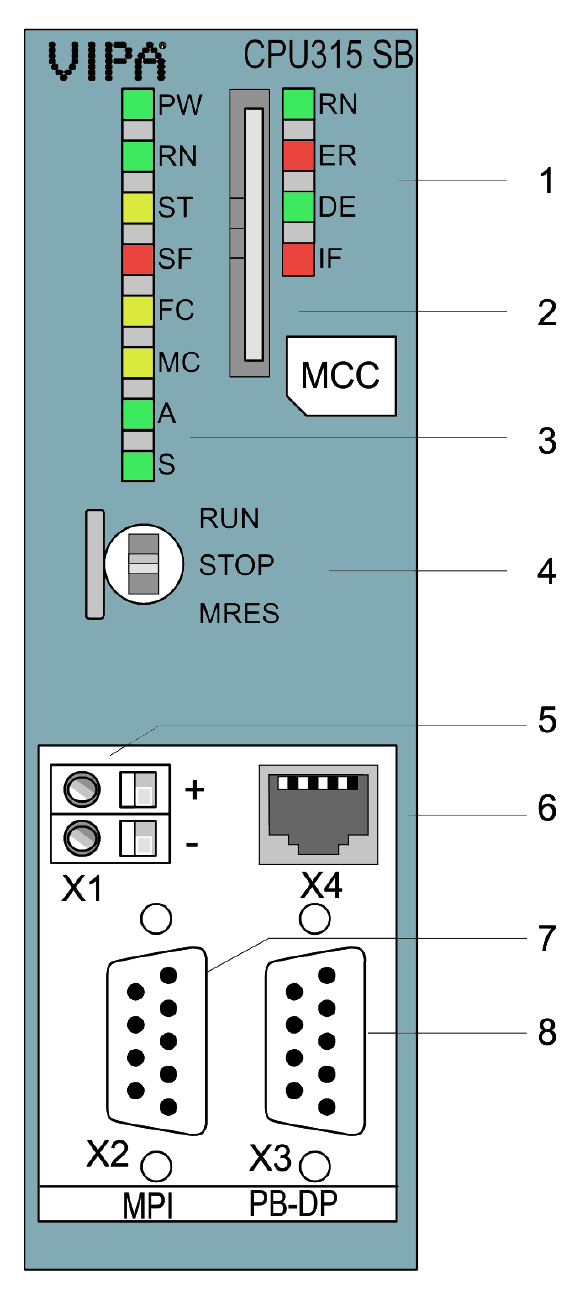

| Модуль CPU | Описание |
 |
|
| X1: Разъем DC 24V | Описание |
X4: Ethernet PG/OP |
Описание |
 |
|
 |
|
| X2: MPI interface | Описание |
X3:PtP / PB-DP |
Описание |
 |
|
|
|
Индикация состояния CPU
As soon as the CPU is supplied with 5V, the green PW-LED (Power) is on.
|
RN |
ST |
SF (SFAIL) red |
FC |
MC |
Meaning |
| Boot-up after PowerON | |||||
| ● | BB* | ● | ● | ● | * Blinking with 10Hz: Firmware is loaded. |
| ● | ● | ● | ● | ● | Initialization: Phase 1 |
| ● | ● | ● | ● | ○ | Initialization: Phase 2 |
| ● | ● | ● | ○ | ○ | Initialization: Phase 3 |
| ○ | ● | ● | ○ | ○ | Initialization: Phase 4 |
| Operation | |||||
| ○ | ● | x | x | x | CPU is in STOP state. |
| BB | ● | x | x | x | CPU is in start-up state, the RUN LED blinks during operating OB100 at least for 3s. |
| ● | ○ | ○ | x | x | CPU is in state RUN without error. |
| x | x | ● | x | x | There is a system fault. More information may be found in the diagnostics buffer of the CPU. |
| x | x | x | ● | x | Variables are forced. |
| x | x | x | x | ● | Access to the memory card. |
| x | BB* | ○ | ○ | ○ | * Blinking with 10Hz: Configuration is loaded. |
| Overall reset | |||||
| ○ | BB | x | x | x | Overall reset is requested. |
| ○ | BB* | x | x | x | * Blinking with 10Hz: Overall reset is executed. |
| Factory reset | |||||
| ● | ● | ○ | ○ | ○ | Factory reset is executed. |
| ○ | ● | ● | ● | ● | Factory reset finished without error. |
| Firmware update | |||||
| ○ | ● | BB | BB | ● | The alternate blinking indicates that there is new firmware on the memory card. |
| ○ | ○ | BB | BB | ● | The alternate blinking indicates that a firmware update is executed. |
| ○ | ● | ● | ● | ● | Firmware update finished without error. |
| ○ | BB* | BB* | BB* | BB* | * Blinking with 10Hz: Error during Firmware update. |
on: ● off: ○ blinking (2Hz): ☼ not relevant: x
LEDs Ethernet PG/OP channel L/A, S
The green L/A-LED (Link/Activity) indicates the physical connection of the Ethernet PG/OP channel to Ethernet. Irregular flashing of the L/A-LED indicates communication of the Ethernet PG/OP channel via Ethernet.
If the green S-LED (Speed) is on, the Ethernet PG/OP has a communication speed of 100MBit/s otherwise 10MBit/s.
Индикация состояния PROFIBUS/PtP
Master operation
|
RN |
ER (ERR) red |
DE green |
IF red |
Meaning |
| ○ | ○ | ○ | ○ | Master has no project, this means the interface is deactivated respectively PtP is active. |
| ● | ○ | ○ | ○ | Master has bus parameters and is in RUN without slaves. |
| ● | ○ | BB | ○ | Master is in "clear" state (safety state). The inputs of the slaves may be read. The outputs are disabled. |
| ● | ○ | ● | ○ | Master is in "operate" state, this means data exchange between master and slaves. The outputs may be accessed. |
| ● | ● | ● | ○ | CPU is in RUN, at least 1 slave is missing. |
| ● | ● | BB | ○ | CPU is in STOP, at least 1 slave is missing. |
| ○ | ○ | ○ | ● | Initialization error at faulty parameterization. |
| ○ | ● | ○ | ● | Waiting state for start command from CPU. |
Slave operation
| RN (RUN) green |
ER (ERR) red |
DE green |
IF red |
Meaning |
| ○ | ○ | ○ | ○ | Slave has no project respectively PtP is active. |
| ☼ | ○ | ○ | ○ | Slave is without master. |
| BB* | ○ | BB* | ○ | * Alternate flashing at configuration faults. |
| ● | ○ | ● | ○ | Slave exchanges data between master. |
on: ● | off: ○ | blinking (2Hz): BB
 |
Другие принадлежности для этого товараКарты памяти MMC для расширение рабочей памяти Монтажные шины |
Order no. |
315-2AG23 |
| Type | CPU 315SB/DPM |
General information |
|
| Note | - |
| Features | SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
| SPEED-Bus | - |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection |  |
| Current consumption (no-load operation) | 200 mA |
| Current consumption (rated value) | 1 A |
| Inrush current | 5 A |
| I²t | 0.5 A²s |
| Max. current drain at backplane bus | 2.5 A |
| Max. current drain load supply | - |
| Power loss | 6 W |
Load and working memory |
|
| Load memory, integrated | 4 MB |
| Load memory, maximum | 4 MB |
| Work memory, integrated | 1 MB |
| Work memory, maximal | 4 MB |
| Memory divided in 50% program / 50% data | |
| Memory card slot | SD/MMC-Card with max. 2 GB |
Hardware configuration |
|
| Racks, max. | 4 |
| Modules per rack, max. | 8 in multiple-, 32 in a single-rack configuration |
| Number of integrated DP master | 1 |
| Number of DP master via CP | 4 |
| Operable function modules | 8 |
| Operable communication modules PtP | 8 |
| Operable communication modules LAN | 8 |
Command processing times |
|
| Bit instructions, min. | 0.01 µs |
| Word instruction, min. | 0.01 µs |
| Double integer arithmetic, min. | 0.01 µs |
| Floating-point arithmetic, min. | 0.06 µs |
Timers/Counters and their retentive characteristics |
|
| Number of S7 counters | 512 |
| S7 counter remanence | adjustable 0 up to 512 |
| S7 counter remanence adjustable | C0 .. C7 |
| Number of S7 times | 512 |
| S7 times remanence | adjustable 0 up to 512 |
| S7 times remanence adjustable | not retentive |
Data range and retentive characteristic |
|
| Number of flags | 8192 Byte |
| Bit memories retentive characteristic adjustable | adjustable 0 up to 8192 |
| Bit memories retentive characteristic preset | MB0 .. MB15 |
| Number of data blocks | 4095 |
| Max. data blocks size | 64 KB |
| Number range DBs | 1 ... 4095 |
| Max. local data size per execution level | 1024 Byte |
| Max. local data size per block | 1024 Byte |
Blocks |
|
| Number of OBs | 23 |
| Maximum OB size | 64 KB |
| Total number DBs, FBs, FCs | - |
| Number of FBs | 2048 |
| Maximum FB size | 64 KB |
| Number range FBs | 0 ... 2047 |
| Number of FCs | 2048 |
| Maximum FC size | 64 KB |
| Number range FCs | 0 ... 2047 |
| Maximum nesting depth per priority class | 8 |
| Maximum nesting depth additional within an error OB | 4 |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 6 w |
| Type of buffering | Vanadium Rechargeable Lithium Battery |
| Load time for 50% buffering period | 20 h |
| Load time for 100% buffering period | 48 h |
| Accuracy (max. deviation per day) | 10 s |
| Number of operating hours counter | 8 |
| Clock synchronization | |
| Synchronization via MPI | Master/Slave |
| Synchronization via Ethernet (NTP) | no |
Address areas (I/O) |
|
| Input I/O address area | 8192 Byte |
| Output I/O address area | 8192 Byte |
| Process image adjustable | |
| Input process image preset | 256 Byte |
| Output process image preset | 256 Byte |
| Input process image maximal | 2048 Byte |
| Output process image maximal | 2048 Byte |
| Digital inputs | 65536 |
| Digital outputs | 65536 |
| Digital inputs central | 1024 |
| Digital outputs central | 1024 |
| Integrated digital inputs | - |
| Integrated digital outputs | - |
| Analog inputs | 4096 |
| Analog outputs | 4096 |
| Analog inputs, central | 256 |
| Analog outputs, central | 256 |
| Integrated analog inputs | - |
| Integrated analog outputs | - |
Communication functions |
|
| PG/OP channel | |
| Global data communication | |
| Number of GD circuits, max. | 8 |
| Size of GD packets, max. | 54 Byte |
| S7 basic communication | |
| S7 basic communication, user data per job | 76 Byte |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| S7 communication, user data per job | 160 Byte |
| Number of connections, max. | 32 |
Functionality Sub-D interfaces |
|
| Type | X2 |
| Type of interface | RS485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | |
| MP²I (MPI/RS232) | - |
| DP master | - |
| DP slave | - |
| Point-to-point interface | - |
| 5V DC Power supply | max. 90mA, isolated |
| 24V DC Power supply | max. 100mA, non-isolated |
| Type | X3 |
| Type of interface | RS485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | |
| MPI | - |
| MP²I (MPI/RS232) | - |
| DP master | yes |
| DP slave | yes |
| Point-to-point interface | |
| 5V DC Power supply | max. 90mA, isolated |
| 24V DC Power supply | max. 100mA, non-isolated |
Functionality MPI |
|
| Number of connections, max. | 32 |
| PG/OP channel | |
| Routing | |
| Global data communication | |
| S7 basic communication | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Transmission speed, min. | 19.2 kbit/s |
| Transmission speed, max. | 12 Mbit/s |
Functionality PROFIBUS master |
|
| PG/OP channel | |
| Routing | |
| S7 basic communication | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Activation/deactivation of DP slaves | |
| Direct data exchange (slave-to-slave communication) | - |
| DPV1 | |
| Transmission speed, min. | 9.6 kbit/s |
| Transmission speed, max. | 12 Mbit/s |
| Number of DP slaves, max. | 124 |
| Address range inputs, max. | 8 KB |
| Address range outputs, max. | 8 KB |
| User data inputs per slave, max. | 244 Byte |
| User data outputs per slave, max. | 244 Byte |
Functionality PROFIBUS slave |
|
| PG/OP channel | |
| Routing | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Direct data exchange (slave-to-slave communication) | - |
| DPV1 | |
| Transmission speed, min. | 9.6 kbit/s |
| Transmission speed, max. | 12 Mbit/s |
| Automatic detection of transmission speed | - |
| Transfer memory inputs, max. | 244 Byte |
| Transfer memory outputs, max. | 244 Byte |
| Address areas, max. | 32 |
| User data per address area, max. | 32 Byte |
Point-to-point communication |
|
| PtP communication | |
| Interface isolated | |
| RS232 interface | - |
| RS422 interface | - |
| RS485 interface | |
| Connector | Sub-D, 9-pin, female |
| Transmission speed, min. | 150 bit/s |
| Transmission speed, max. | 115.5 kbit/s |
| Cable length, max. | 500 m |
Point-to-point protocol |
|
| ASCII protocol | |
| STX/ETX protocol | |
| 3964(R) protocol | |
| RK512 protocol | - |
| USS master protocol | |
| Modbus master protocol | |
| Modbus slave protocol | - |
| Special protocols | - |
Functionality RJ45 interfaces |
|
| Type | X4 |
| Type of interface | Ethernet 10/100 MBit |
| Connector | RJ45 |
| Electrically isolated | |
| PG/OP channel | |
| Number of connections, max. | 4 |
| Productive connections | - |
Housing |
|
| Material | PPE |
| Mounting | Rail System 300 |
Mechanical data |
|
| Dimensions (WxHxD) | 40 mm x 125 mm x 120 mm |
| Net weight | 290 g |
| Weight including accessories | - |
| Gross weight | - |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL certification | in preparation |
| KC certification | in preparation |
|
312-5BE13 |
CPU 312SC - SPEED7 technology␍ SPEED7 technology 16 x DI, 8 x DO 64 kB work memory Memory extension (max. 512 kB) PtP interface Also configurable via TIA-Portal |
 [Datasheet]
[Manual] |
|
312-5BE23 |
CPU 312SC - SPEED7 Technology (300S+)␍ SPEED7 technology 16 x DI, 8 x DO, incl. front connectors 128 kB work memory Memory extension (max. 1024 kB) PtP interface Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-5BF13 |
CPU 313SC - SPEED7 technology␍ SPEED7 technology 24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI Pt100 128 kB work memory Memory extension (max. 512 kB) PtP interface Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-5BF23 |
CPU 313SC - SPEED7 technology (300S+)␍ SPEED7 technology 24 x DI, 16 x DO, 4 x AI, 2 x AO, 1 x AI Pt100, incl. front connectors 2x40-pole 256 kB work memory Memory extension (max. 1 MB) PtP interface Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-6CF13 |
CPU 313SC/DPM - SPEED7 technology␍ SPEED7 technology 16 x DI, 16 x DO 128 kB work memory Memory extension (max 512 kB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
313-6CF23 |
CPU 313SC/DPM - SPEED7 technology (300S+) ␍ SPEED7 technology 16 x DI, 16 x DO, incl. front connector 256 kB work memory Memory extension (max 1 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-2AG12 |
CPU 314SB/DPM - SPEED7 technology␍ SPEED7 technology 256 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual] |
|
314-2AG13 |
CPU 314SB/DPM - SPEED7 technology␍ SPEED7 technology 256 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-2AG23 |
CPU 314SB/DPM - SPEED7 technology␍ SPEED7 technology 256 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
|
|
314-2BG03 |
CPU 314SE/DPS - SPEED7 technology SPEED7 technology 128 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP slave / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-2BG23 |
CPU 314SE/DPS - SPEED7 technology SPEED7 technology 128 kB work memory Memory extension (max. 512 kB) PROFIBUS-DP slave / PtP (switchable) Also configurable via TIA-Portal |
|
|
314-6CF02 |
CPU 314ST/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual] |
|
314-6CF03 |
CPU 314ST/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-6CF23 |
CPU 314ST/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 8 x DI, 8 x DIO, 4 x AI, 2 x AO, 1 x AI Pt100 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
|
|
314-6CG13 |
CPU 314SC/DPM - SPEED7 technology␍ SPEED7 technology 24 x DI, 16 x DO, 8 x DIO, 4 x AI, 1 x AI Pt100, 2 x AO 256 kB work memory Memory extension (max. 1 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
314-6CG23 |
CPU 314SC/DPM - SPEED7 technology (300S+)␍ SPEED7 technology 24 x DI, 16 x DO, 8 x DIO, 4 x AI, 1 x AI Pt100, 2 x AO, incl. front connectors 512 kB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-2AG12 |
CPU 315SB/DPM - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual] |
|
315-2AG13 |
CPU 315SB/DPM - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-2AG23 |
CPU 315SB/DPM - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
|
|
315-4EC12 |
CPU 315SN/EC - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) EtherCAT controller integrated |
[Datasheet]
[Manual] |
|
315-4EC32 |
CPU 315SN/EC ECO - SPEED7 technology␍ SPEED7 technology 512 KB work memory PtP EtherCAT Master integrated |
[Datasheet]
[Manual] |
|
315-4NE12 |
CPU 315SN/NET - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated |
[Datasheet]
[Manual] |
|
315-4NE13 |
CPU 315SN/NET - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-4PN12 |
CPU 315SN/PN - SPEED7 technology␍ SPEED7 technology 1 MB work memory Memory extension (max. 2 MB) PROFIBUS-DP master / PtP (switchable) PROFINET controller integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
315-4PN33 |
CPU 315SN/PN ECO - SPEED7 technology␍ SPEED7 technology 512 KB work memory PtP PROFINET controller integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
317-2AJ12 |
CPU 317SE/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) |
[Datasheet]
[Manual]
 [STP] |
|
317-2AJ13 |
CPU 317SE/DPM - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
317-4EC12 |
CPU 317SN/EC - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) EtherCAT-Master integrated |
[Datasheet]
[Manual] |
|
317-4NE12 |
CPU 317SN/NET - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated |
[Datasheet]
[Manual] |
|
317-4NE13 |
CPU 317SN/NET - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) CP 343 integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
|
317-4PN12 |
CPU 317SN/PN - SPEED7 technology␍ SPEED7 technology, SPEED-Bus 2 MB work memory Memory extension (max. 8 MB) PROFIBUS-DP master / PtP (switchable) PROFINET Controller integrated Also configurable via TIA-Portal |
[Datasheet]
[Manual] |
Изделие: 315-4NE13
Рабочая память 1 Мбайт (расширение до 2 Mбайт), MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP master или PtP), встроенный Ethernet CP 343, совместимость с TIA Portal
Изделие: 315-4EC32
Рабочая память 512 кбайт (без расширения), MPI, Ethernet PG/OP, порт RS-485 (PtP), встроенный Ethernet CP с поддержкой сети EtherCAT
Изделие: 317-2AJ12
Рабочая память 2 Мбайт (расширение до 8 Мбайт), MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP master или PtP), шина SPEEDBus
Изделие: 314-6CF03
Рабочая память 512 кбайт (расширение до 2 Мбайт), MPI, Ethernet PG/OP, порт RS-485 (PROFIBUS DP master или PtP), 8 x DI, 8 x DO, 8 x DIO, 4 x AI (U/I), 1 x AI (Pt100), 2 x AO (U/I), 4 счетчика (32 разряда, 100 кГц), шина SPEED-Bus, совместимость с TIA Portal (требуется 40-контактный фронтальный соединитель, заказывается отдельно)
г. Алматы, Ауэзовский район
ул. Толе Би 302, Литер "Д"
офис № 205
+7 (727) 268-0321
+7 (701) 082-9486
+7 (707) 493-7210
+7 (727) 268-0321
info@controllink.kz
