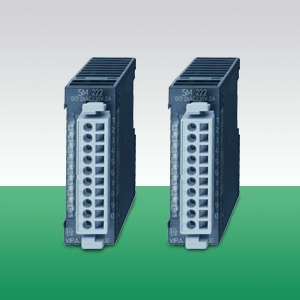

Встроенная функция регулятора мощности, 2 канала 100…230 В перем. тока, 2 А, гальваническая изоляция
Модули дискретного ввода-вывода служат для подключения к системе управления датчиков и исполнительных устройств и обеспечивают сопряжение системы управления с уровнем процесса. Модули дискретного ввода получают двоичные сигналы управления от датчиков и преобразуют их во внутренние сигналы системы.
Модули дискретного вывода осуществляют обратное преобразование внутренних данных системы системы в электрические сигналы для управления исполнительными устройствами. Доступны модули с числом каналов от 4 до 32.
Order no. |
222-1DB00 |
| Type | SM 222 |
General information |
|
| Note | - |
| Features | 2 outputs AC 100...240 V Output current 2 A Software dimmer for resistive, inductive or capacitive load Frequency range 47...63 Hz |
Current consumption/power loss |
|
| Current consumption from backplane bus | 190 mA |
| Power loss | 6 W |
Technical data digital outputs |
|
| Number of outputs | 2 |
| Cable length, shielded | 1000 m |
| Cable length, unshielded | 600 m |
| Rated load voltage | AC 100...240 V |
| Current consumption from load voltage L+ (without load) | 15 mA |
| Total current per group, horizontal configuration, 40°C | 4 A |
| Total current per group, horizontal configuration, 60°C | 3 A |
| Total current per group, vertical configuration | 4 A |
| Output current at signal "1", rated value | 2 A |
| Output delay of "0" to "1" | max. 1 AC cycle |
| Output delay of "1" to "0" | max. 1 AC cycle |
| Minimum load current | - |
| Lamp load | 460 W |
| Parallel switching of outputs for redundant control of a load | not possible |
| Parallel switching of outputs for increased power | not possible |
| Actuation of digital input | - |
| Switching frequency with resistive load | - |
| Switching frequency with inductive load | - |
| Switching frequency on lamp load | - |
| Internal limitation of inductive shut-off voltage | - |
| Short-circuit protection of output | yes, electronic |
| Trigger level | 4 A |
| Number of operating cycle of relay outputs | - |
| Switching capacity of contacts | - |
| Output data size | 4 Byte |
Status information, alarms, diagnostics |
|
| Status display | none |
| Interrupts | no |
| Process alarm | no |
| Diagnostic interrupt | yes, parameterizable |
| Diagnostic functions | no |
| Diagnostics information read-out | possible |
| Supply voltage display | green LED per group |
| Group error display | red SF LED |
| Channel error display | none |
Isolation |
|
| Between channels | - |
| Between channels of groups to | - |
| Between channels and backplane bus |  |
| Insulation tested with | DC 4000 V |
Datasizes |
|
| Input bytes | 0 |
| Output bytes | 4 |
| Parameter bytes | 17 |
| Diagnostic bytes | 10 |
Housing |
|
| Material | PPE / PA 6.6 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 25.4 mm x 76 mm x 88 mm |
| Weight | 70 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | - |
