PLC CPU214 214-2BS03
| Память программ/данных | Адресное пространство | Расширение входов/выходов | Интерфейсы | Питание |
| 96 кбайт рабочей памяти 144 кбайт загрузочной памяти Возможность расширения памяти, ММС (512 Мбайт) Битовая операция 0,18 мкс Байтовая операция 0,78 мкс Программирования: WinPLС7, STEP7 |
Кол-во блоков данных: 2047 Максимальный размер блока данных 16 кбайт Флаги: 8192 бит Таймеры/счётчики: 256/256 Блоки FB/FC/OB: 1024/1024/14 Адресуемых вх./вых.: 1024/1024 байт RTC - аккумулятор Энергонезависимая память: 30 дней макс. |
Модулей на ЦПУ не более 32 |
MP2I, 2 х RS232 (PtP: ASCII, STX/ETX, 3964(R), RK512) |
24 VDC |

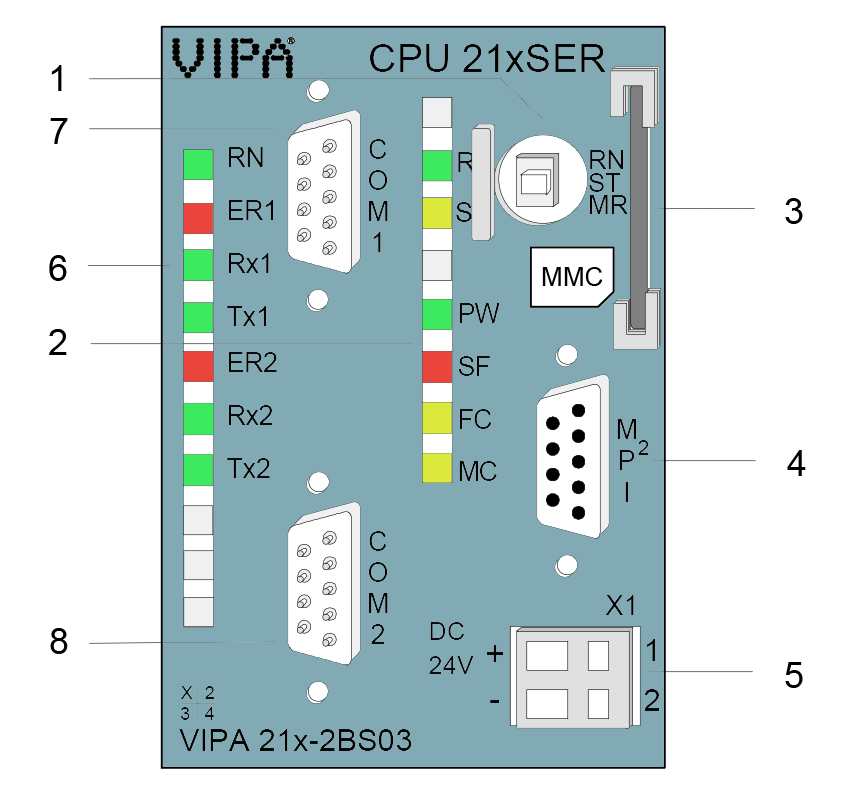

| Индикация состояния | Модуль ЦПУ | Описание |
|
ЦПУ:
RS232: RN Коммуникационный процессор работает ER1 Ошибка (интерфейса 1) Rx1 Получение данных (интерфейса 1) Tx1 Передача данных (интерфейса 1) ER2 Ошибка (интерфейса 2) Rx2 Получение данных (интерфейса 2) Tx2 Передача данных (интерфейса 2)
|
 |
|
Order no. |
214-2BS03 |

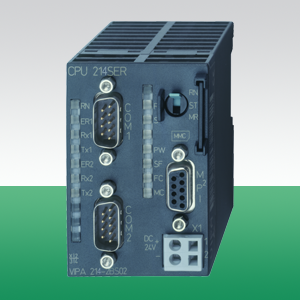

| Type | CPU 214SER |
General information |
|
| Note | - |
| Features | Serial communication via 2x RS232 96 kB work memory 144 kB load memory |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection |  |
| Current consumption (no-load operation) | 90 mA |
| Current consumption (rated value) | 1.5 A |
| Inrush current | 65 A |
| I²t | 0.75 A²s |
| Max. current drain at backplane bus | 3 A |
| Power loss | 5 W |
Technical data power supply |
|
| Power supply (rated value) | DC 24 V |
| Power supply (permitted range) | DC 20.4...28.8 V |
| Reverse polarity protection | |
| Current consumption (no-load operation) | 90 mA |
| Current consumption (rated value) | 1.5 A |
| Inrush current | 65 A |
| I²t | 0.75 A²s |
| Max. current drain at backplane bus | 3 A |
| Max. current drain load supply | - |
| Power loss | 5 W |
Load and working memory |
|
| Load memory, integrated | 144 KB |
| Load memory, maximum | 144 KB |
| Work memory, integrated | 96 KB |
| Work memory, maximal | 96 KB |
| Memory divided in 50% program / 50% data | - |
| Memory card slot | MMC-Card with max. 512 MB |
Hardware configuration |
|
| Racks, max. | 4 |
| Modules per rack, max. | total max. 32 |
| Number of integrated DP master | - |
| Number of DP master via CP | 8 |
| Operable function modules | 32 |
| Operable communication modules PtP | 32 |
| Operable communication modules LAN | - |
Command processing times |
|
| Bit instructions, min. | 0.18 µs |
| Word instruction, min. | 0.78 µs |
| Double integer arithmetic, min. | 1.8 µs |
| Floating-point arithmetic, min. | 40 µs |
Timers/Counters and their retentive characteristics |
|
| Number of S7 counters | 256 |
| S7 counter remanence | adjustable 0 up to 64 |
| S7 counter remanence adjustable | C0 .. C7 |
| Number of S7 times | 256 |
| S7 times remanence | adjustable 0 up to 128 |
| S7 times remanence adjustable | not retentive |
Data range and retentive characteristic |
|
| Number of flags | 8192 Bit |
| Bit memories retentive characteristic adjustable | adjustable 0 up to 256 |
| Bit memories retentive characteristic preset | MB0 .. MB15 |
| Number of data blocks | 2047 |
| Max. data blocks size | 16 KB |
| Number range DBs | 1 ... 2047 |
| Max. local data size per execution level | 1024 Byte |
| Max. local data size per block | 1024 Byte |
Blocks |
|
| Number of OBs | 14 |
| Maximum OB size | 16 KB |
| Total number DBs, FBs, FCs | - |
| Number of FBs | 1024 |
| Maximum FB size | 16 KB |
| Number range FBs | 0 ... 1023 |
| Number of FCs | 1024 |
| Maximum FC size | 16 KB |
| Number range FCs | 0 ... 1023 |
| Maximum nesting depth per priority class | 8 |
| Maximum nesting depth additional within an error OB | 1 |
Time |
|
| Real-time clock buffered | |
| Clock buffered period (min.) | 30 d |
| Type of buffering | Vanadium Rechargeable Lithium Battery |
| Load time for 50% buffering period | 20 h |
| Load time for 100% buffering period | 48 h |
| Accuracy (max. deviation per day) | 10 s |
| Number of operating hours counter | 8 |
| Clock synchronization | - |
| Synchronization via MPI | - |
| Synchronization via Ethernet (NTP) | - |
Address areas (I/O) |
|
| Input I/O address area | 1024 Byte |
| Output I/O address area | 1024 Byte |
| Process image adjustable | - |
| Input process image preset | 128 Byte |
| Output process image preset | 128 Byte |
| Input process image maximal | 128 Byte |
| Output process image maximal | 128 Byte |
| Digital inputs | 8192 |
| Digital outputs | 8192 |
| Digital inputs central | 512 |
| Digital outputs central | 512 |
| Integrated digital inputs | - |
| Integrated digital outputs | - |
| Analog inputs | 512 |
| Analog outputs | 512 |
| Analog inputs, central | 128 |
| Analog outputs, central | 128 |
| Integrated analog inputs | - |
| Integrated analog outputs | - |
Communication functions |
|
| PG/OP channel | |
| Global data communication | |
| Number of GD circuits, max. | 4 |
| Size of GD packets, max. | 22 Byte |
| S7 basic communication | |
| S7 basic communication, user data per job | 76 Byte |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| S7 communication, user data per job | 160 Byte |
| Number of connections, max. | 16 |
Functionality Sub-D interfaces |
|
| Type | MP²I |
| Type of interface | RS485 |
| Connector | Sub-D, 9-pin, female |
| Electrically isolated | - |
| MPI | |
| MP²I (MPI/RS232) | |
| Point-to-point interface | - |
| Type | COM1 |
| Type of interface | RS232 |
| Connector | Sub-D, 9-pin, male |
| Electrically isolated | - |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | |
| Type | COM2 |
| Type of interface | RS232 |
| Connector | Sub-D, 9-pin, male |
| Electrically isolated | - |
| MPI | - |
| MP²I (MPI/RS232) | - |
| Point-to-point interface | |
Functionality MPI |
|
| Number of connections, max. | 16 |
| PG/OP channel | |
| Routing | - |
| Global data communication | |
| S7 basic communication | |
| S7 communication | |
| S7 communication as server | |
| S7 communication as client | - |
| Transmission speed, min. | 19.2 kbit/s |
| Transmission speed, max. | 187.5 kbit/s |
Point-to-point communication |
|
| PtP communication | |
| Interface isolated | - |
| RS232 interface | |
| RS422 interface | - |
| RS485 interface | - |
| Connector | Sub-D, 9-pin, male |
| Transmission speed, min. | 150 bit/s |
| Transmission speed, max. | 115.2 kbit/s |
| Cable length, max. | 15 m |
Point-to-point protocol |
|
| ASCII protocol | |
| STX/ETX protocol | |
| 3964(R) protocol | |
| RK512 protocol | |
| USS master protocol | - |
| Modbus master protocol | - |
| Modbus slave protocol | - |
| Special protocols | - |
Datasizes |
|
| Input bytes | 0 |
| Output bytes | 0 |
| Parameter bytes | 3 |
| Diagnostic bytes | 0 |
Housing |
|
| Material | PPE / PA 6.6 |
| Mounting | Profile rail 35 mm |
Mechanical data |
|
| Dimensions (WxHxD) | 50.8 mm x 76 mm x 80 mm |
| Weight | 150 g |
Environmental conditions |
|
| Operating temperature | 0 °C to 60 °C |
| Storage temperature | -25 °C to 70 °C |
Certifications |
|
| UL508 certification | yes |
|
