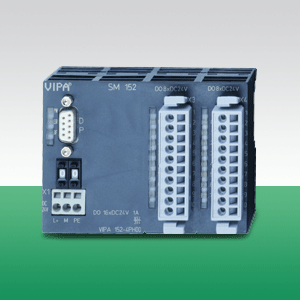

SM 152, Profibus DP Slave, 16DO, DC 24V/1A

Изделие: 152-4PH00

Краткое описание:

Ведомое устройство PROFIBUS DP, DO 16x24 В/1 А пост. тока, 12 Мбит/с

Производитель: VIPA
Вес: 0.21 кг.

Розничная цена: 99873

БЫСТРЫЙ ЗАКАЗ

SM 152 152-4PH00

Модуль SM 152, ведомое устройство PROFIBUS DP, DO 16x24 В/1 А пост. тока, 12 Мбит/с

Наименование	Profibus-DP slave
Тип	152-4PH00
Габаритные размеры, В х Ш х Г, мм	101.6х76х48
Температура окружающей среды	0°C to 60°C
Серия	100V
Тип интерфейса (электрический)	RS 485
Количество сигналов	DO 16xDC24V

LED status monitor
PROFIBUS interface
Address selector
Power supply DC24V
Input / output periphery

LEDs

Label	Color	Description
PW	green	Operating voltage Signalizes applying DC 24V operating voltage
ER	red	Error/Diagnostic Blinks at working diagnostic for short circuit, overload or missing voltage supply. Extinguishes as soon as the error is cleared.
BF	red	PROFIBUS bus error Blinks during establishing communication. Extinguishes at active communication.

Interface

PROFIBUS DP		Description
		screen n.c. RxD/TxD-P (Line B) RTS M5V P5V n.c. RxD/TxD-N (Line A) n.c.

Status monitor pin assignment

LED	Description	Pin assignment
L+	LED (yellow) Supply voltage applied	Supply voltage DC 24V Output Q+0.0 Output Q+0.1 Output Q+0.2 Output Q+0.3 Output Q+0.4 Output Q+0.5 Output Q+0.6 Output Q+0.7 Supply voltage Ground
.0... .7	LEDs (green) Q+0.0 to Q+0.7 as soon as an output is active, the according LED is addressed
F	LED (red) Error at overload, overheat or short circuit

Order no.	152-4PH00
Type	SM 152
General information
Note	-
Features	PROFIBUS-DP slave 16 outputs
Technical data power supply
Power supply (rated value)	DC 24 V
Power supply (permitted range)	DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation)	-
Current consumption (rated value)	55 mA
Technical data digital outputs
Number of outputs	16
Cable length, shielded	1000 m
Cable length, unshielded	600 m
Rated load voltage	DC 24 V
Reverse polarity protection of rated load voltage	-
Current consumption from load voltage L+ (without load)	50 mA
Total current per group, horizontal configuration, 40°C	4 A
Total current per group, horizontal configuration, 60°C	2 A
Total current per group, vertical configuration	2 A
Output voltage signal "1" at min. current	L+ (-0.8 V)
Output voltage signal "1" at max. current	L+ (-1.5 V)
Output current at signal "1", rated value	1 A
Output delay of "0" to "1"	150 µs
Output delay of "1" to "0"	100 µs
Minimum load current	-
Lamp load	5 W
Parallel switching of outputs for redundant control of a load	not possible
Parallel switching of outputs for increased power	not possible
Actuation of digital input
Switching frequency with resistive load	max. 1000 Hz
Switching frequency with inductive load	max. 0.5 Hz
Switching frequency on lamp load	max. 10 Hz
Internal limitation of inductive shut-off voltage	L+ (-52 V)
Short-circuit protection of output	yes, electronic
Trigger level	1.5 A
Number of operating cycle of relay outputs	-
Switching capacity of contacts	-
Output data size	2 Byte
Status information, alarms, diagnostics
Status display	green LED per channel
Interrupts	no
Process alarm	no
Diagnostic interrupt	no
Diagnostic functions	no
Diagnostics information read-out	none
Supply voltage display	yes
Group error display	red SF LED
Channel error display	none
Isolation
Between channels	-
Between channels of groups to	-
Between channels and backplane bus	-
Between channels and power supply	-
Max. potential difference between circuits	-
Max. potential difference between inputs (Ucm)	-
Max. potential difference between Mana and Mintern (Uiso)	-
Max. potential difference between inputs and Mana (Ucm)	-
Max. potential difference between inputs and Mintern (Uiso)	-
Max. potential difference between Mintern and outputs	-
Insulation tested with	DC 500 V
Hardware configuration
Racks, max.	-
Modules per rack, max.	-
Number of digital modules, max.	-
Number of analog modules, max.	-
Communication
Fieldbus	PROFIBUS-DP to EN 50170
Type of interface	RS485
Connector	Sub-D, 9-pin, female
Topology	Linear bus with bus termination at both ends
Electrically isolated
Number of participants, max.	125
Node addresses	1 - 99
Transmission speed, min.	9.6 kbit/s
Transmission speed, max.	12 Mbit/s
Address range inputs, max.	0 Byte
Address range outputs, max.	2 Byte
Number of TxPDOs, max.	-
Number of RxPDOs, max.	-
Datasizes
Input bytes	0
Output bytes	2
Parameter bytes	7 + 5
Diagnostic bytes	13
Housing
Material	PPE / PA 6.6
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	101.6 mm x 76 mm x 48 mm
Weight	206 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL508 certification	yes
