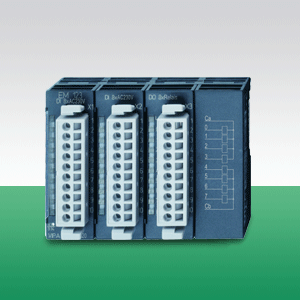

EM 123, 16DI, AC 60…230V, 8DO, DC 30V/AC 230V/5A

Изделие: 123-4EJ20

Краткое описание:

DI 16x60...230 перем. тока, DO 8xреле

Производитель: VIPA
Вес: 0.25 кг.

Розничная цена: 129054

БЫСТРЫЙ ЗАКАЗ

EM 123 123-4EJ20

Модуль дискретного ввода-вывода EM 123, DI 16x60...230 перем. тока, DO 8 реле

Наименование	Модуль дискретных входов/выходов DI 16xAC 60…230V / DO 8 x реле, 5А
Тип	VIPA123-4EJ20
Габаритные размеры, В х Ш х Г, мм	101.6 mm x 76 mm x 48 mm
Температура окружающей среды	0 °C .. 60 °C
Серия	100V
Количество входов	16
Количество выходов	8
Тип входного сигнала	AC 60...230 V
Тип выходного сигнала	DC 30 V/ AC 230 V

Structure

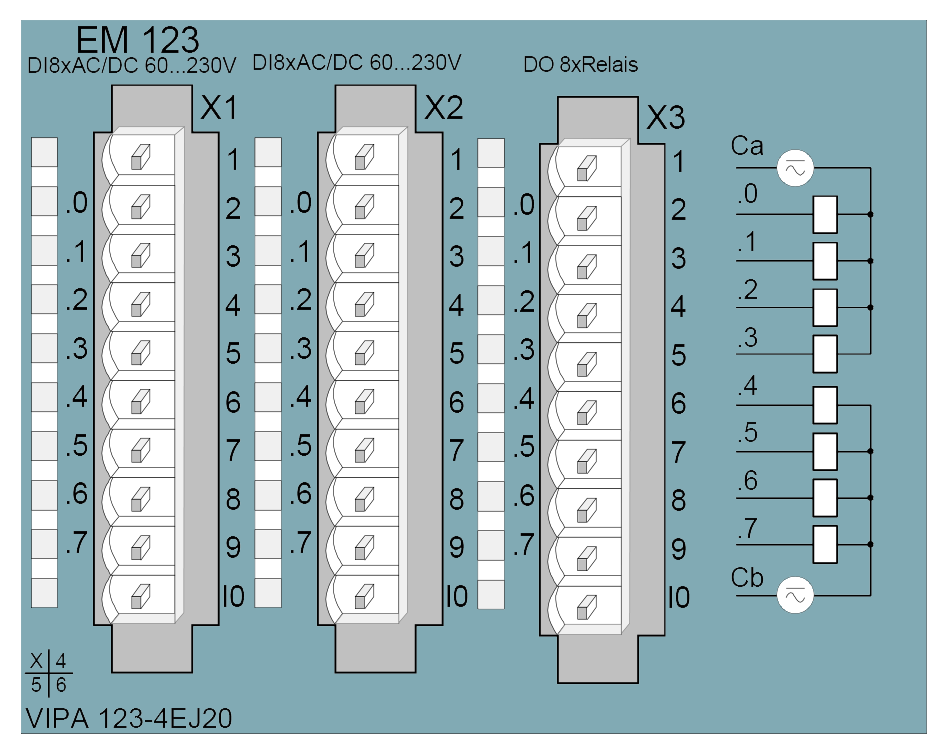

Position X1	Position X2	Position X3	Position X4
DI 8xAC/DC 60...230V	DI 8xAC/DC 60...230V	DO 8xRelay	not used

Order no.	123-4EJ20
Type	EM 123
General information
Note	-
Features	16 inputs AC/DC 60...230 V 8 relay outputs
Current consumption/power loss
Current consumption from backplane bus	320 mA
Power loss	4.6 W
Technical data digital inputs
Number of inputs	16
Cable length, shielded	1000 m
Cable length, unshielded	600 m
Rated load voltage	-
Current consumption from load voltage L+ (without load)	-
Rated value	AC/DC 60...230 V
Input voltage for signal "0"	AC/DC 0...35 V
Input voltage for signal "1"	AC/DC 60...230 V
Input voltage hysteresis	-
Frequency range	-
Input resistance	-
Input current for signal "1"	2 mA
Connection of Two-Wire-BEROs possible	-
Max. permissible BERO quiescent current	-
Input delay of "0" to "1"	25 ms
Input delay of "1" to "0"	25 ms
Number of simultaneously utilizable inputs horizontal configuration	16
Number of simultaneously utilizable inputs vertical configuration	16
Input characteristic curve	-
Initial data size	2 Byte
Technical data digital outputs
Number of outputs	8
Cable length, shielded	1000 m
Cable length, unshielded	600 m
Rated load voltage	DC 30 V/ AC 230 V
Reverse polarity protection of rated load voltage	-
Current consumption from load voltage L+ (without load)	-
Output current at signal "1", rated value	5 A
Output delay of "0" to "1"	6 ms
Output delay of "1" to "0"	3 ms
Minimum load current	-
Lamp load	-
Parallel switching of outputs for redundant control of a load	not possible
Parallel switching of outputs for increased power	not possible
Actuation of digital input	-
Switching frequency with resistive load	max. 10 Hz
Switching frequency with inductive load	-
Switching frequency on lamp load	-
Internal limitation of inductive shut-off voltage	-
Short-circuit protection of output	-
Trigger level	-
Number of operating cycle of relay outputs	10^7
Switching capacity of contacts	-
Output data size	1 Byte
Status information, alarms, diagnostics
Status display	green LED per channel
Interrupts	no
Process alarm	no
Diagnostic interrupt	no
Diagnostic functions	no
Diagnostics information read-out	none
Supply voltage display	none
Group error display	none
Channel error display	none
Isolation
Between channels	-
Between channels of groups to	8
Between channels and backplane bus
Insulation tested with	DC 500 V
Datasizes
Input bytes	2
Output bytes	2
Parameter bytes	0
Diagnostic bytes	0
Housing
Material	PPE / PA 6.6
Mounting	Profile rail 35 mm
Mechanical data
Dimensions (WxHxD)	101.6 mm x 76 mm x 48 mm
Weight	244 g
Environmental conditions
Operating temperature	0 °C to 60 °C
Storage temperature	-25 °C to 70 °C
Certifications
UL508 certification	yes

Order no.	Name/Description
123-4EH01	EM 123 - Expansion module, digital 8 inputs/ 8 outputs DC 24 V	[Datasheet] [Manual]
123-4EJ01	EM 123 - Expansion module, digital 16 inputs/ 8 outputs DC 24 V	[Datasheet] [Manual]
123-4EJ11	EM 123 - Expansion module, digital 16 inputs 8 relay outputs	[Datasheet] [Manual]
123-4EJ20	EM 123 - Expansion module, digital 16 inputs AC/DC 60...230 V 8 relay outputs	[Datasheet] [Manual]
123-4EL01	EM 123 - Expansion module, digital 16 inputs/ 16 outputs Isolated	[Datasheet] [Manual]
