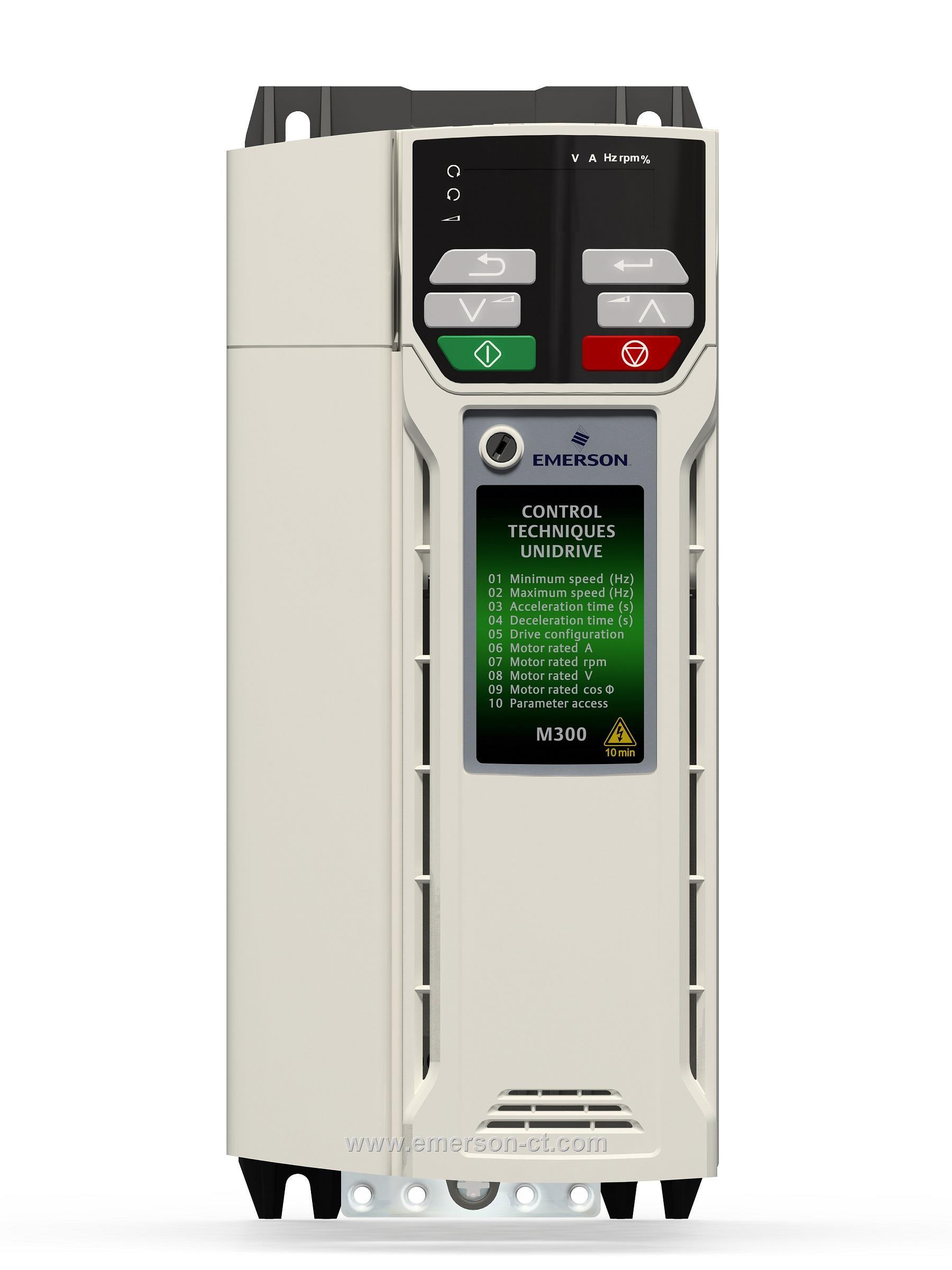

Unidrive M300 5.5 kW - Тяжелый режим / 7.5 kW — Нормальный режим, 200/240 VAC, Three Phase

Изделие: M300-05200250


Краткое описание:
M300 - соответствует требованиям современных стандартов функциональной безопасности. Два встроенных входа безопасного отключения момента (STO) обеспечивают простоту соблюдения класса надежности SIL3.
Производитель: CONTROL TECHNIQUES
Мощность (kW): 5.5
Питание: 3-фазное
Напряжение (V): 200/240
Вес: 7.4 кг.
Розничная цена: 405945
БЫСТРЫЙ ЗАКАЗ
Серия M300 - соответствует требованиям современных стандартов функциональной безопасности. Два встроенных входа безопасного отключения момента (STO) обеспечивают простоту соблюдения класса надежности SIL3 и снижают необходимость во внешних компонентах, что позволяет минимизировать габаритные размеры оборудования и расходы.

Диапазон мощности: от 0,25 до 132 кВт
Диапазон напряжения: 100 В  | 200 В | 400 В | 575 В | 690 В






Frame Size   5 6 7 8 9A 9E
 Габариты мм   137 x 75 x 130  180 x 75 x 150  200 x 90 x 160  245 x 115 x 175 379 x 141x 200 379 x 210 x 227 548 x 270 x 280 785 x 310 x 290 1108x310x290 1069x310x290
 Вес кг   0,75  1  1,5  3,13 7.4 14 45 50 66.5 46



Типовыи точки подключения

Основные характеристики Unidrive M300

Простота интеграции:

 Опциональный порт RS485 и набор дополнительных SI-модулей для передачи данных по шине fieldbus обеспечивают возможность дистанционного управления и диагностики

 Настраиваемые входы-выходы

Быстрые и простые процедуры монтажа и настройки:

 Простая несъемная светодиодная панель управления в стандартной комплектации

 Отображение 10 чаще всего используемых параметров электропривода на передней панели

Управление:

 Улучшенное управление двигателем посредством RFC-A алгоритма

 Функция управление моментом двигателя

Электромагнитная совместимость:

 Встроенный  фильтр ЭМС

Установка:

 Возможность монтажа на DIN рейку для габаритов 1 и 2

Расширения:

 Возможность установки SI-модуля (начиная с габарита 2)

Перегрузочная способность:

 180% от номинального момента в тяжелом режиме в течение 3 секунд

Охлаждение:

 Регулируемый по температуре вентилятор

Входы\выходы управления:

 Количество программируемых дискретных входов - 4
 Количество программируемых дискретных входов\выходов – 1
 Количество программируемых аналоговых входов – 2
 Количество программируемых аналоговых выходов – 1
 Количество программируемых встроенных реле -1 (габарит  5 и выше)
 Количество дискретных входов безопасности -2

Выходная частоты и частота коммутации:

 Максимальная выходная частота – 550 Гц
 Частота коммутации – 0,67-16 кГц

Температура окружающей среды:

 Работа  -10/+40 °С
 Хранение -20/+65 °С

ПИ\ПИД-регуляторы:

 ПИД - регулятор процесса
 ПИ-регулятор момента

Снижение габаритов и стоимости системы:

 Один из самых компактных приводов в своем классе для каждого номинала мощности

Экономичность:

 Низкие потери, КПД до 98%

 Режим ожидания с низким энергопотреблением

Типовые применения:

 Регулирование скорости для транспортировки материалов, резки, обработки древесины, металлорежущих станков; когда требуется безопасность персонала и оборудования

Безопасность оборудования:

 2 клеммы безопасного отключения момента - 2 x Safe Torque Off terminals

Панель управления:

 Несъемная светодиодная

Копирование параметров:

 Программные средства

 SD card

Диапазон мощности:

 0,25 - 110(132) кВт



  Напряжение питания

Электроприводы габарит 1-4

110 В:

 1 фаза

Электроприводы габарит 1-4

230 и 400 В:

 1 или 3 фазы

Электроприводы габарит 5 и выше

400 В:

 3 фазы



 Номинальное значение напряжения

  Да Нет

100 В (100 В - 120 В ± 10%)



200 В (200 В - 240 В ± 10%)



400 В (380 В - 480 В ± 10%)



575 В (500 В - 575 В ± 10%)


690 В (500 В - 690 В ± 10%)



Режим управления

  Да Нет

Векторное управление в разомкнутом контуре или вольт-частотное управление

(U/f = const) асинхронными двигателями



Векторное управление в разомкнутом контуре для асинхронных двигателей

(RFC-A)



Управление в разомкнутом контуре для двигателей с постоянными магнитами

(RFC-S)



Векторное управление в замкнутом контуре для асинхронных двигателей

(RFC-A)


Векторное управление в замкнутом контуре для двигателей с постоянными магнитами (RFC-S)

Режим активного выпрямления

Active Front End (AFE)





 Габарит - Размеры

Габарит мм кг
1 160 x 75 x 130 Монтаж на DIN рейку: 137 x 75 x 130 0.75
2

205 x 75 x 150 Монтаж на DIN рейку: 180 x 75 x 150

1.0
3 226 x 90 x 160 1.5
4 277 x 115 x 175 3.13
5 391 x 143 x 192 7.4
6 391 x 210 x 22 14
7 557 x 270 x 280 28
8 803 x 310 x 290 52
9A 1108 x 310 x 290 66.5
9E 1069 x 310 x 288 46
  Количество
Слоты для опциональных модулей (габарит 2 и выше)  1 слот
Remote keypad
All the features of the CI-Keypad LCD, but remote mountable. This allows flexible mounting on the outside of a panel and meets IP66 (NEMA 4)
SI-PROFIBUS
PROFIBUS interface module
SI-DeviceNet
DeviceNet interface module
SI-CANopen
CANopen interface module supporting various profiles, including several drive profiles
SI-Ethernet
External Ethernet module that supports PROFINET RT*, EtherNet/IP and Modbus TCP/IP and has an integrated web server that can generate emails. The module can be used to provide high speed drive access, global connectivity and integration with IT network technologies, such as wireless networking
SI-EtherCAT
EtherCAT interface module
SI-I/O
Extended I/O interface module to increase the number of I/O points on a drive. Provides additional: 4 x Digital I/O, 3 x Analog inputs (default)/Digital inputs, 1 x Analog output (default)/Digital input, 2 x Relays.
AI-Back-up Adaptor
Port adaptor that allows the drive to use an SD card for parameter cloning, and an input for 24 V back-up
AI-485 Adaptor
Port adaptor that allows the drive to communicate via RS485



Option Modules
Order Code Description M100 M200 M300 M400 M600 M700
Drive interface units - Back-up
82500000000004 AI-Backup Adaptor l l l
82500000018500 AI-Smart Adaptor l l l
82400000016400 SD-Smartcard Adaptor         l l
Drive interface units - Communications
82500000000003 AI-485 Adaptor   l l
82500000000002 CI-485 Adaptor       l
82400000016100 KI-485 Adaptor         l l
Keypads
82500000000000 CI-Keypad       l
82500000000001 Remote Keypad   l l l l
82400000016000 KI-Keypad         l l
82400000016300 KI-Keypad RTC         l l
System Integration Modules - Communications
82400000017600 SI-CANopen   l l l l
82400000017700 SI-DeviceNet   l l l l
82400000018000 SI-EtherCAT   l l l l
82400000017900 SI-Ethernet   l l l l
82400000018200 SI-Profinet RT         l l
82400000017500 SI-PROFIBUS   l l l l
System Integration Modules - Additional I/O
82400000017800 SI-I/O   l l l l
System Integration Modules - Applications
82400000017000 MCi200                               l
82400000016700 MCi210                               l
82400000016500 SI-Applications Plus           l
System Integration Modules - Feedback
82400000018100 SI-Encoder         l l
82400000018300 SI-Universal Encoder         l l
System Integration Modules - Feedback
82400000018400 SI-Safety         l l
82000000015900 Safety Dual Encoder Adapter          l l
82000000016000 Safety Single Encoder Adapter         l l
4500-0102 CTSafePro Software Dongle         l l



Brake Resistors

Order Code Description M100 M200 M300 M400 M600 M700
1220-2752-00 Frame 03 Internal Brake resistor         l l
1299-0003-00 Frame 04&05 Internal Brake Resistor   l (F5) (F5) l (F5) l l
1220-2201 DBR, 100W, 20R, 130x68, TS         l l
1220-2401 DBR, 100W, 40R, 130x68, TS         l l
1220-2501 DBR, 100W, 50R, 130x68, TS         l l
1220-2681 DBR, 100W, 68R, 130x68, TS         l l
1220-2801 DBR, 100W, 80R, 130x68, TS         l l
1220-3101 DBR, 100W, 100R, 130x68, TS         l l
1220-3131 DBR, 100W, 135R, 130x68, TS         l l
1220-3271 DBR, 100W, 270R, 130x68, TS         l l
6541-0187-00 BRKT, DBR, Mounting Angle         l l
6541-0190-00 BRKT,DBR,Mounting Angle,CONN         l l
Accessories
Order Code Description M100 M200 M300 M400 M600 M700
2214-0010-00 Smartcard (64kb)         l l
3000-0009 I/O commissioning extender adaptor         l l
3470-0058 KI-Keypad Blanking Cover (10 Pack)         l l
3470-0064 Frame 03  &  04 split 3 way power connector kit         l l
Ethernet Switchs
SW100-5 5 port 10/100 Base TX switch with IEEE 1588 PTP v2 support
DC Bus Paralleling Kits
3470-0048 Frame 03 DC Paralleling kit         l l
3470-0061 Frame 04 DC Paralleling Kit         l l
3470-0068 Frame 05 DC Paralleling Kit   l l l l
3470-0063 Frame 06 DC Paralleling Kit   l l l l
3470-0111 Frame 06 to Frame3, 4 & 5 DC Paralleling Kit   l (F5) (F5) l (F5) l l
Tile Mount Kits
3470-0049 Frame 03 Tile Mounting Kit         l l
3470-0060 Frame 04 Tile Mounting Kit         l l
3470-0073 Frame 05 Tile Mounting Kit   l l l l
Through hole IP65 Kit
3470-0053 Frame 03 High IP Protection Kit         l l
3470-0056 Frame 04 High IP Protection Kit   l l l l
3470-0067 Frame 05 High IP Protection Kit   l l l l
3470-0055 Frame 06 High IP Protection Kit   l l l l
3470-0079 Frame 07 High IP Protection Kit       l l l
3470-0083 Frame 08 High IP Protection Kit       l l l
3470-0108 Frame 09 and 10 Inverter IP Kit Frame 09 and 10 Format 'D'
3470-0105 Frame 09 and 10 IP Kit Frame 09 and 10 Format 'E'
3470-0106 Rectifier IP Kit Rectifier for Frame09 10 Format 'D'
Retrofit Brakets
3470-0097 Frame 03 SK Retrofit Panel Mounting Kit l l l
3470-0101 Frame 04 SK Retrofit Panel Mounting Kit l l l
3470-0062 Frame 04 Retrofit Panel Mounting Kit         l l
3470-0066 Frame 05 Retrofit Panel Mounting Kit   l l l l
3470-0074 Frame 06 Retrofit Panel mounting kit   l l l l
3470-0078 Frame 07 Retrofit Panel Mounting Kit       l l l
3470-0087 Frame 08 Retrofit Panel Mounting Kit       l l l
3470-0118 Frame 09 & 10 Retrofit Panel Mounting Kit Frame 09 and 10 Format 'D'  & 'E'
UL Type 1 Conduit Kit
3470-0091 Frame 01 UL Type 1 conduit kit l l l
3470-0094 Frame 02 UL Type 1 Conduit Kit l l l
3470-0098 Frame 03 UL Type 1 Conduit Kit l l l
3470-0102 Frame 04 UL Type 1 Conduit Kit l l l
6521-0071 Steel Gland plate - UL Type 1 kit Frame 3 & 4         l l
3470-0069 Frame 05 UL Type 1 Conduit Kit    l l l l
3470-0059 Frame 06 UL Type 1 Conduit Kit   l l l l
3470-0080 Frame 07 UL Type 1 Conduit Kit        l l l
3470-0088 Frame 08 UL Type 1 Conduit Box Kit       l l l
3470-0115  Frame 09 & 10 UL conduit box kit (docked) Frame 09 and 10 Format 'D'  & 'E'
Cable Grommet Kit
3470-0086 Frame 07 Cable Grommet Kit       l l l
3470-0089 Frame 08  Terminal cable grommet,Single Header       l l l
3470-0090 Frame 08  Terminal cable grommet,Dual Header       l l l
Fan Replacement Kit
3470-0092 Frame 01 Fan Replacement Kit l l l
3470-0095 Frame 02 Fan Replacement Kit l l l
3470-0099 Frame 03 Fan Replacement Kit l l l
3470-0103 Frame 04 Fan Replacement Kit l l l



EMC Filters
Order Code Frame Voltage M600 - M700 Phases Type
4200-1000 1 ALL   1 Standard
4200-2000 2 100   1 Standard
4200-2001 2 200   1 Standard
4200-2003 2 200   3 Standard
4200-2005 2 400   3 Standard
4200-3000 3 200   1 Standard
4200-3004 3 200   3 Standard
4200-3008 3 400   3 Standard
4200-4000 4 200   1 Standard
4200-4002 4 200   3 Standard
4200-4004 4 400   3 Standard
4200-1001 1 ALL   1 Low Leakage
4200-2002 2 200   1 Low Leakage
4200-2004 2 200   3 Low Leakage
4200-2006 2 400   3 Low Leakage
4200-3001 3 200   1 Low Leakage
4200-3005 3 200   3 Low Leakage
4200-3009 3 400   3 Low Leakage
4200-4001 4 200   1 Low Leakage
4200-4003 4 200   3 Low Leakage
4200-4005 4 400   3 Low Leakage
4200-3230 3 200 l 3 Standard
4200-3480 3 400 l 3 Standard
4200-0272 4 200 l 3 Standard
4200-0252 4 400 l 3 Standard
4200-0312 5 200 l 3 Standard
4200-0402 5 400 l 3 Standard
4200-0122 5 575 l 3 Standard
4200-2300 6 200 l 3 Standard
4200-4800 6 400 l 3 Standard
4200-3690 6 575 l 3 Standard
4200-1072 7 200 l 3 Standard
4200-1132 7 400 l 3 Standard
4200-0672 7 575 & 690 l 3 Standard
4200-1672 8 200 l 3 Standard
4200-1972 8 400 l 3 Standard
4200-1662 8 575 & 690 l 3 Standard
4200-3021 9A 200 & 400 l 3 Standard
4200-1660 9A 575 & 690 l 3 Standard
4200-4460 9E & 10E 200 & 400 l 3 Standard
4200-2210 9E & 10E 575 & 690 l 3 Standard



Line Reactors
Order Code Description M600 - M700 Frame Voltage
4401-0224 IND,INL2006,4.3A,1.96mH,2%   2 200
4401-0225 IND,INL2007,7.5A,1.12mH,2%   2 200
4401-0143 IND,INL2001,13A,0.79mH,2%   2 200
4401-0144 IND,INL2002,20.6A,0.48mH,2% l 3,4 200
4401-0145 IND,INL2003,26.8A,0.32mH,2% l 4 200
4401-0226 IND,INL2008,32A,0.26mH,2% l 5 200
4401-0146 IND,INL2004,48.8A,0.17mH,2% l 5 200
4401-0147 IND,INL2005,56.6A,0.15mH,2% l 6 200
4401-0227 IND,INL2009,67A,0,13mH,2% l 7 200
4401-0228 IND,INL2010,88A,0.1mH,2% l 7 200
4401-0229 IND,INL2011,105A,0.08mH,2% l 7 200
4401-0230 IND,INL2012,137A,0.062mH,2% l 8 200
4401-0231 IND,INL2013,166A,0.051mH,2% l 8 200
4401-0232 IND,INL4009,2.4A,6.10mH,2% l 2 400
4401-0233 IND,INL4010,3.5A,5.10mH,2% l 2 400
4401-0148 IND,INL4001,6.6A,2.94mH,2% l 3 400
4401-0149 IND,INL4002,9.1A,1.62mH,2% l 3 400
4401-0234 IND,INL4011,13A,1.12mH,2% l 3 400
4401-0151 IND,INL4003,15.8A,1.05mH,2% l 3 400
4401-0152 IND,INL4004,18.7A,0.79mH,2% l 4 400
4401-0235 IND,INL4012,21A,0.71mH,2% l 4 400
4401-0153 IND,INL4005,24.3A,0.61mH,2% l 4 400
4401-0236 IND,INL4013,32A,0.48mH,2% l 5 400
4401-0154 IND,INL4006,36.4A,0.4mH,2% l 5 400
4401-0155 IND,INL4007,46.2A,0.32mH,2% l 6 400
4401-0156 IND,INL4008,60.6A,0.24mH,2% l 6 400
4401-0237 IND,INL4014,74A,0.20mH,2% l 7 400
4401-0238 IND,INL4015,88A,0.17mH,2% l 7 400
4401-0239 IND,INL4016,105A,0.14mH,2% l 7 400
4401-0240 IND,INL4017,155A,0.095mH,2% l 8 400
4401-0241 IND,INL4018,177A,0.083mH,2% l 8 400
4401-0242 IND,INL5007,4.3A,4.92mH,2% l 5 575
4401-0243 IND,INL5008,6.8A,3.11mH,2% l 5 575
4401-0244 IND,INL5009,11.4A,1.89mH,2% l 5 575
4401-0157 IND,INL5001,13.2A,1.6mH,2% l 5 575
4401-0158 IND,INL5002,18.7A,1.13mH,2% l 6 575
4401-0159 IND,INL5003,24.3A,0.87mH,2% l 6 575
4401-0160 IND,INL5004,29.4A,0.72mH,2% l 6 575
4401-0161 IND,INL5005,37.1A,0.57mH,2% l 6 575
4401-0223 IND,INL5006,46.9A,0.45mH,2% l 6 575
4401-0245 IND,INL5010,67A,0.34mH,2% l 7 575
4401-0246 IND,INL5011,88A,0.25mH,2% l 7 575
4401-0247 IND,INL5012,105A,0.20mH,2% l 8 575
4401-0248 IND,INL6001,20A,1.27mH,2% l 7 600
4401-0249 IND,INL6002,26A,0.98mH,2% l 7 600
4401-0250 IND,INL6003,32A,0.88mH,2% l 7 600
4401-0251 IND,INL6004,39A,0.65mH,2% l 7 600
4401-0252 IND,INL6005,45A,0.58mH,2% l 7 600
4401-0253 IND,INL6006,67A,0,41mH,2% l 7 600
4401-0254 IND,INL6007,88A,0,30mH,2% l 8 600
4401-0255 IND,INL6008,105A,0,24mH,2% l 8 600



Output and Input Chokes
Order Code Description Order Code  Description
4401-0197-00 OTL 401 4401-0201-00  OTL 601
4401-0198-00 OTL 402 4401-0202-00  OTL 602
4401-0199-00 OTL 403 4401-0203-00  OTL 603
4401-0200-00 OTL 404 4401-0204-00  OTL 604
4401-0188-02 OTL 411 4401-0193-02 OTL 611
4401-0189-02 OTL 412 4401-0194-02 OTL 612
4401-0192-02 OTL 413 4401-0195-02 OTL 613
4401-0186-02 OTL 414 4401-0196-02 OTL 614

4401-0181-00 INL 401 4401-0183-00  INL 601
4401-0208-00                    INL 401W 4401-0184-00  INL 602
4401-0182-00 INL 402 4401-0190-03 INL 611
4401-0209-00                    INL 402W 4401-0191-03 INL 612
4401-0206-01 INL 411
4401-0207-01 INL 412
100/120 VAC
+/-10%
Input Phases Normal Duty Heavy Duty
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP) Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP)
Order Code
M300-01100017 Single       1,7 0,25 0,33
M300-01100024 Single       2,4 0,37 0,5
M300-02100042 Single       4,2 0,75 1
M300-02100056 Single       5,6 1,1 1,5
200/240 VAC
+/-10%
Input Phases Normal Duty Heavy Duty
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP) Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP)
Order Code
M300-01200017 Single       1,7 0,25 0,33
M300-01200024 Single       2,4 0,37 0,5
M300-01200033 Single       3,3 0,55 0,75
M300-01200042 Single       4,2 0,75 1
M300-02200024 Dual       2,4 0,37 0,5
M300-02200033 Dual       3,3 0,55 0,75
M300-02200042 Dual       4,2 0,75 1
M300-02200056 Dual       5,6 1,1 1,5
M300-02200075 Dual       7,5 1,5 2
M300-03200100 Dual       10 2,2 3
M300-04200133 Dual       13,3 3 3
M300-04200176 Three       17,6 4 5
M300-05200250 Three 30 7,5 10 25 5,5 7,5
M300-06200330 Three 50 11 15 33 7,5 10
M300-06200440 Three 58 15 20 44 11 15
M300-07200610 Three 75 18,5 25 61 15 20
M300-07200750 Three 94 22 30 75 18,5 25
M300-07200830 Three 117 30 40 83 22 30
M300-08201160 Three 149 37 50 116 30 40
M300-08201320 Three 180 45 60 132 37 50
M300-09201760 Three 216 55 75 176 45 60
M300-09202190 Three 266 75 100 219 55 75
380/480 VAC
+/-10%
Input Phases Normal Duty Heavy Duty
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP) Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP)
Order Code
M300-02400013 Three       1,3 0,37 0,5
M300-02400018 Three       1,8 0,55 0,75
M300-02400023 Three       2,3 0,75 1
M300-02400032 Three       3,2 1,1 1,5
M300-02400041 Three       4,1 1,5 2
M300-03400056 Three       5,6 2,2 3
M300-03400073 Three       7,3 3 3
M300-03400094 Three       9,4 4 5
M300-04400135 Three       13,5 5,5 7,5
M300-04400170 Three       17 7,5 10
M300-05400270 Three 30 15 20 27 11 20
M300-05400300 Three 30 15 20 30 15 20
M300-06400350 Three 38 18,5 25 35 15 25
M300-06400420 Three 48 22 30 42 18,5 30
M300-06400470 Three 63 30 40 47 22 30
M300-07400660 Three 79 37 50 66 30 50
M300-07400770 Three 94 45 60 77 37 60
M300-07401000 Three 112 55 75 100 45 75
M300-08401340 Three 155 75 100 134 55 100
M300-08401570 Three 184 90 125 157 75 125
M300-09402000 Three 221 110 150 200 90 150
M300-09402240 Three 266 132 200 224 110 150
500/575 VAC
+/-10%
Input Phases Normal Duty Heavy Duty
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP) Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP)
Order Code
M300-05500030 Three 3,9 2,2 3 3 1,5 2
M300-05500040 Three 6,1 4 5 4 2,2 3
M300-05500069 Three 10 5,5 7,5 6,9 4 5
M300-06500100 Three 12 7,5 10 10 5,5 7,5
M300-06500150 Three 17 11 15 15 7,5 10
M300-06500190 Three 22 15 20 19 11 15
M300-06500230 Three 27 18,5 25 23 15 20
M300-06500290 Three 34 22 30 29 18,5 25
M300-06500350 Three 43 30 40 35 22 30
M300-07500440 Three 53 37 50 44 30 40
M300-07500550 Three 73 45 60 55 37 50
M300-08500630 Three 86 55 75 63 45 60
M300-08500860 Three 108 75 100 86 55 75
M300-09501040 Three 125 90 125 104 75 100
M300-09501310 Three 150 110 150 131 90 125
500/690 VAC
+/-10%
Input Phases Normal Duty Heavy Duty
Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP) Max Continuous Current (A) Motor Shaft Power (kW) Motor Shaft Power (HP)
Order Code
M300-07600190 Three 23 18,5 25 19 15 20
M300-07600240 Three 30 22 30 24 18,5 25
M300-07600290 Three 36 30 40 29 22 30
M300-07600380 Three 46 37 50 38 30 40
M300-07600440 Three 52 45 60 44 37 50
M300-07600540 Three 73 55 75 54 45 60
M300-08600630 Three 86 75 100 63 55 75
M300-08600860 Three 108 90 125 86 75 100
M300-09601040 Three 125 110 150 104 90 125
M300-09601310 Three 150 132 175 131 110 150

Login: info@controllink.kz

User Guides

TitleIssueFile
Type
SizeLang
Unidrive M100/M101 User Guide 3 pdf 9 MB EN
Unidrive M200/M201 User Guide 4 pdf 23 MB EN
Unidrive M300 User Guide 7 pdf 22 MB EN
Unidrive M400 User Guide 6 pdf 27 MB EN
Unidrive M600 User Guide 3 pdf 29 MB EN
Unidrive M700/M701/M702 User Guide 9 pdf 30 MB EN

Getting Started Guides

TitleIssueFile
Type
SizeLang
Unidrive M600 Control Getting Started Guide 1 pdf 3.88 MB EN
Unidrive M700-701 and HS70-71 Control Getting Started Guide 2 pdf 4.30 MB EN
Unidrive M702 and HS72 Control Getting Started Guide 2 pdf 4.00 MB EN

Quick Start Guides

TitleIssueFile
Type
SizeLang
Unidrive M100 / M101 Quick Start Guide 6 pdf 2.45 MB EN
Unidrive M200 / M201 Quick Start Guide Frame 1 to 4 6 pdf 3.15 MB EN
Unidrive M200/M201 Control Quick Start Guide 2 pdf 2.24 MB EN
Unidrive M300 Control Quick Start Guide Frame 1 to 4 2 pdf 2.15 MB EN
Unidrive M300/HS30 Quick Start Guide Frame 1 to 4 6 pdf 2.95 MB EN
Unidrive M400 Control Quick Start Guide 2 pdf 3.11 MB EN
Unidrive M400 Quick Start Guide Frame 1 to 4 6 pdf 3.60 MB EN

Installation Guides

TitleIssueFile
Type
SizeLang
Unidrive M and Unidrive HS Modular Installation Guide 3 pdf 23 MB EN
Unidrive M Frame 11 Power Installation Guide 1 pdf 4.70 MB EN
Unidrive M Frame 3 and 4 Power Installation Guide 2 pdf 3.01 MB EN
Unidrive M frame 5 and 6 Power Installation Guide 3 pdf 3.55 MB EN
Unidrive M frame 7 to 10 Power Installation Guide 4 pdf 6 MB EN

Option Module User Guides

TitleIssueFile
Type
SizeLang
MCi210 User Guide 2 pdf 6 MB EN
SI-Applications Plus User Guide 1 pdf 1.83 MB EN
SI-CANopen User Guide 1 pdf 2.18 MB EN
SI-DeviceNet User Guide 2 pdf 1.35 MB EN
SI-Encoder User Guide 1 pdf 879 KB EN
SI-EtherCat User Guide 1 pdf 2.44 MB EN
SI-Ethernet User Guide 1 pdf 2.20 MB EN
SI-I/O User Guide 3 pdf 1.68 MB EN
SI-PROFIBUS User Guide 3 pdf 2.65 MB EN
SI-PROFINET User Guide 2 pdf 1.47 MB EN
SI-Safety User Guide 3 pdf 1.25 MB EN
SI-Universal Encoder User Guide 1 pdf 1.60 MB EN

Software

TitleIssueFile
Type
SizeLang
Connect Software bundle (includes: Unidrive M Connect, HVAC Drive Connect, Powerdrive F300 Connect and Elevator Connect) V02.06.00 V02.06.00 pdf 66 MB EN
CTScope 02.01.00 zip 27 MB EN
Machine Control Studio V1.2.2 zip 630 MB EN
SyPTPro Upgrade v2.6.13.0 – Supports the SI-Applications Plus module (Unidrive M700) . Requires a previously registered v2.0.5 onwards. 2.6.13.0 zip 82 MB EN

3D Drawings

TitleIssueFile
Type
SizeLang
Unidrive M100-M300, Frame 01, 3D STP 1 zip 5 MB EN
Unidrive M100-M300, Frame 02, 3D STP 1 zip 4.72 MB EN
Unidrive M100-M300, Frame 03, 3D STP 1 zip 4.56 MB EN
Unidrive M100-M300, Frame 04, 3D STP 1 zip 5 MB EN
Unidrive M200-M300, Frame 05, 3D STP 1 zip 20 MB EN
Unidrive M200-M300, Frame 06, 3D STP 1 zip 20 MB EN
Unidrive M200-M300, Frame 07, 3D STP 1 zip 9 MB EN
Unidrive M200-M300, Frame 08, 3D STP 1 zip 7 MB EN
Unidrive M400, Frame 01, 3D STP 1 zip 6 MB EN
Unidrive M400, Frame 02, 3D STP 1 zip 7 MB EN
Unidrive M400, Frame 03, 3D STP 1 zip 7 MB EN
Unidrive M400, Frame 04, 3D STP 1 zip 9 MB EN
Unidrive M400, Frame 05, 3D STP 1 zip 19 MB EN
Unidrive M400, Frame 06, 3D STP 1 zip 19 MB EN
Unidrive M400, Frame 07, 3D STP 1 zip 9 MB EN
Unidrive M400, Frame 08, 3D STP 1 zip 7 MB EN
Unidrive M600-M702, Frame 03, 3D IGS 1 zip 9 MB EN
Unidrive M600-M702, Frame 03, 3D STP 1 zip 4.26 MB EN
Unidrive M600-M702, Frame 04, 3D IGS 1 zip 11 MB EN
Unidrive M600-M702, Frame 04, 3D STP 1 zip 5 MB EN
Unidrive M600-M702, Frame 05, 3D IGS 1 zip 15 MB EN
Unidrive M600-M702, Frame 05, 3D STP 1 zip 11 MB EN
Unidrive M600-M702, Frame 06, 3D IGS 1 zip 15 MB EN
Unidrive M600-M702, Frame 06, 3D STP 1 zip 7 MB EN
Unidrive M600-M702, Frame 07, 3D IGS 1 zip 13 MB EN
Unidrive M600-M702, Frame 07, 3D STP 1 zip 10 MB EN
Unidrive M600-M702, Frame 08, 3D IGS 1 zip 11 MB EN
Unidrive M600-M702, Frame 08, 3D STP 1 zip 7 MB EN

Installation Sheets

TitleIssueFile
Type
SizeLang
Automation I/O Expansion Installation Sheet 2 pdf 775 KB EN
Option Installation Sheet - Automation (Apps) 5 pdf 188 KB EN
Option Installation Sheet - Feedback 2 pdf 269 KB EN
Option Installation Sheet - Fieldbus 6 pdf 624 KB EN
Option Installation Sheet - Machine Controller 1 pdf 390 KB EN
Remote Keypad RTC Installation Sheet 1 pdf 174 KB EN
Unidrive M size 9 and 10 Inverter and Rectifier Installation Sheet 2 pdf 2.61 MB EN
Unidrive M600, M700, Size 3 Tile Mounting Installation 2 pdf 1.86 MB EN

Parameter Reference Guides

TitleIssueFile
Type
SizeLang
Unidrive M100/M101 Paramater Reference Guide 3 zip 1.49 MB EN
Unidrive M200/M201 Parameter Reference Guide 3 zip 3.38 MB EN
Unidrive M300 Parameter Reference Guide 3 zip 3.38 MB EN
Unidrive M400 Parameter Reference Guide 3 zip 3.41 MB EN
Unidrive M600 Parameter Reference Guide (unzip the file to your local hard drive and run the .html file to view) 7 zip 6 MB EN
Unidrive M700 Parameter Reference Guide 13 zip 9 MB EN
Unidrive M701 Parameter Reference Guide 10 zip 8 MB EN
Unidrive M702 Parameter Reference Guide 10 zip 9 MB EN

GSD / GSDML Files

TitleIssueFile
Type
SizeLang
SI-Profibus GSD files M200-M400 1.1 zip 18 KB EN
SI-Profibus M200 to M400 GSD files V1.1 zip 18 KB EN
SI-Profibus M700 GSD files V1.4 zip 19 KB EN
SI-Profinet-RT GSDML file (Siemens STEP7 V5.5 SP1 and TIA Portal V11) V2.2 zip 57 KB EN
SI-Profinet-RT GSDML file (Siemens STEP7 V5.5 SP2 and TIA Portal V12) V2.3 zip 57 KB EN
SI-Profinet-V2 GSDML file M200-M400 V1 zip 101 KB EN

Firmware

TitleIssueFile
Type
SizeLang
M200 to M400 Power Firmware Frame 1 to 4 V1.4.2.2 zip 122 KB EN
M200 to M400 Power Firmware Frame 5 to 9 1 zip 122 KB EN
MCi2x0 Firmware (Machine Control Studio v01.02.01 or later or v01.02.00 and earlier) V1.4.1.4 zip 511 KB EN
MCi2x0 Firmware (Machine Control Studio v01.02.01 or later required) V01.05.04.26 V1.5.4.26 zip 506 KB EN
Programming Instructions for the Unidrive M600 through Unidrive M70x Firmware V12.21.12 pdf 470 KB EN
SI-Applications Plus Firmware V02.07.00 V02.07.00 zip 246 KB EN
SI-CANopen Firmware V01.03.00.08 V1.3.0.8 zip 114 KB EN
SI-DeviceNet Firmware V01.02.00.18 V1.2.0.18 zip 94 KB EN
SI-Encoder Firmware V1.0.1.10 zip 79 KB EN
SI-EtherCAT Firmware V01.02.00.08 V01020008 zip 163 KB EN
SI-Ethernet Firmware (Including Unidrive M700 and M702 Onboard Ethernet) V01.06.01.04 V1.6.1.4 zip 255 KB EN
SI-I/O Firmware V02.02.00.10 V02020010 zip 76 KB EN
SI-Profibus Firmware V01.04.01.06 V01040106 zip 110 KB EN
SI-Profinet Firmware V1.1.5.24 zip 358 KB EN
SI-Profinet V2 Firmware V2.0.4.4 zip 597 KB EN
SI-Universal Encoder Firmware V01.00.04.02 V01000402 zip 79 KB EN
Unidrive M200 to M400 Firmware Programming Instructions 1 pdf 617 KB EN
Unidrive M200-M400 User Firmware V01040402 V01040402 zip 969 KB EN
Unidrive M600 to M70x Firmware V01.13.02.00 V01.13.02 zip 2.00 MB EN

EDS Files

TitleIssueFile
Type
SizeLang
SI-CANopen EDS Files V1.2 zip 2.59 MB EN
SI-DeviceNet EDS files V1.0.0.1 zip 87 KB EN
SI-Ethernet and Unidrive M700 – Onboard Ethernet EDS files V1 zip 7 KB EN
Unidrive M200 to M400 EDS Files V1.2 zip 5 KB EN

EMC Datasheets

TitleIssueFile
Type
SizeLang
Unidrive M100 - M400 frame size 1 1 pdf 598 KB EN
Unidrive M100 - M400 frame size 2 1 pdf 651 KB EN
Unidrive M100 - M400 frame size 3 1 pdf 610 KB EN
Unidrive M100 - M400 frame size 4 1 pdf 595 KB EN
Unidrive M200 - M702 frame size 10 4 pdf 669 KB EN
Unidrive M200 - M702 frame size 3 3 pdf 574 KB EN
Unidrive M200 - M702 frame size 4 3 pdf 581 KB EN
Unidrive M200 - M702 frame size 5 4 pdf 612 KB EN
Unidrive M200 - M702 frame size 6 3 pdf 651 KB EN
Unidrive M200 - M702 frame size 7 2 pdf 535 KB EN
Unidrive M200 - M702 frame size 9E 4 pdf 669 KB EN
Unidrive M200 to M702 frame size 8 3 pdf 698 KB EN

CMD / XML Files

TitleIssueFile
Type
SizeLang
SI-EtherCAT ESI File for HS7X V1.3.0.0 zip 8 KB EN
SI-EtherCAT ESI Files HS7x V.1.3.0.0 zip 8 KB EN
SI-EtherCAT ESI Files M200-M700 V01020008 zip 347 KB EN
SI-Ethernet EDS Files M400 V1.2 zip 5 KB EN

Cable Drawings

TitleIssueFile
Type
SizeLang
MBBAAAxxxx (New Unimotor power cable 1.0mm^2 conductor with brake leads for use with Unidrive M, SP, and DST) 1 pdf 73 KB EN
MBBBAAxxxx (New Unimotor power cable 2.5mm^2 conductor with brake leads for use with Unidrive M, SP, and DST) Replaces PBBAFAxxx 1 pdf 73 KB EN
MBBBPBxxxx (New Unimotor power Extension cable 2.5mm^2 conductor with brake leads for use with MB or PB series cables) Replaces PBBACAxxx 1 pdf 70 KB EN
MBBCPBxxxx (New Unimotor power Extension cable 4.0mm^2 conductor with brake leads for use with MB or PB series cables) Replaces PBBACAxxx 1 pdf 70 KB EN
MSBAAAxxxx (New Unimotor power cable 1.0mm^2 conductor for use with Unidrive M, SP, and DST) 1 pdf 66 KB EN
MSBBAAxxxx (New Unimotor power cable 2.5mm^2 conductor for use with Unidrive M, SP, and DST) Replaces PSBAFAxxx 1 pdf 68 KB EN
MSBBPBxxxx (New Unimotor power Extension cable 2.5mm^2 conductor for use with MB or PB series cables) 1 pdf 68 KB EN
MSBCPBxxxx (New Unimotor power Extension cable 4.0mm^2 conductor for use with MB or PB series cables) 1 pdf 68 KB EN
SIBAAAxxxx (New Unimotor feedback for Unidrive M, SP and Digitax ST, incremental and EnDat feedback devices) Replaces SIBAAAxxx, SSBAHNxxx, SSBEHNxxx 1 pdf 85 KB EN
SRBBABxxxx (New Unimotor feedback cable for Unidrive M 15 pin D-Sub, resolver feedback devices) 1 pdf 94 KB EN
SSBCBBxxxx (Unimotor feedback cable for Unidrive M, SP, Digitax ST, Flying leads on drive end, HIPERFACE Sin/Cos feedback devices) Replaces SSBABCxxx 1 pdf 96 KB EN

Drives Drawings

TitleIssueFile
Type
SizeLang
Unidrive M100-M300, Frame Size 01, 2D .dxf 1 zip 684 KB EN
Unidrive M100-M300, Frame Size 02, 2D .dxf 1 zip 1.61 MB EN
Unidrive M100-M300, Frame Size 03, 2D .dxf 1 zip 687 KB EN
Unidrive M100-M300, Frame Size 04, 2D .dxf 1 zip 729 KB EN
Unidrive M200-M300, Frame Size 05, 2D .dxf 1 zip 1.09 MB EN
Unidrive M200-M300, Frame Size 06, 2D .dxf 1 zip 817 KB EN
Unidrive M400, Frame Size 01, 2D .dxf 1 zip 611 KB EN
Unidrive M400, Frame Size 02, 2D .dxf 1 zip 533 KB EN
Unidrive M400, Frame Size 03, 2D .dxf 1 zip 583 KB EN
Unidrive M400, Frame Size 04, 2D .dxf 1 zip 676 KB EN
Unidrive M400, Frame Size 05, 2D .dxf 1 zip 898 KB EN
Unidrive M400, Frame Size 06, 2D .dxf 1 zip 815 KB EN
Unidrive M400, Frame Size 07, 2D .dxf 1 zip 766 KB EN
Unidrive M400, Frame Size 08, 2D .dxf 1 zip 897 KB EN
Unidrive M600-M702, Frame Size 03, 2D .dxf 1 zip 1.28 MB EN
Unidrive M600-M702, Frame Size 04, 2D .dxf 1 zip 3.86 MB EN
Unidrive M600-M702, Frame Size 05, 2D .dxf 1 zip 2.05 MB EN
Unidrive M600-M702, Frame Size 06, 2D .dxf 1 zip 1.62 MB EN
Unidrive M600-M702, Frame Size 07, 2D .dwg 1 zip 1.88 MB EN
Unidrive M600-M702, Frame Size 08, 2D .dwg 1 zip 3.12 MB EN
Unidrive M600-M702, Frame Size 10, 2D .dxf 1 zip 3.34 MB EN

Software Archive

TitleIssueFile
Type
SizeLang
Connect Software bundle (includes: Unidrive M Connect, HVAC Drive Connect, Powerdrive F300 Connect and Elevator Connect) V02.05.00 zip 54 MB EN
Connect Software bundle (includes: Unidrive M Connect, HVAC Drive Connect, Powerdrive F300 Connect and Elevator Connect) V2.4.1 zip 96 MB EN
Connect Software bundle (includes: Unidrive M Connect, HVAC Drive Connect, Powerdrive F300 Connect and Elevator Connect) V02.04.00 zip 96 MB EN
Connect Software bundle (includes: Unidrive M Connect, HVAC Drive Connect, Powerdrive F300 Connect and Elevator Connect) V02.05.01 V2.5.1 zip 54 MB EN
Connect Software bundle (includes: Unidrive M Connect, HVAC Drive Connect, Powerdrive F300 Connect and Elevator Connect) V02.05.03 V02.05.03 zip 54 MB EN
CTScope now supports Unidrive M200-M700 V2.1 zip 27 MB EN
Machine Control Studio V01.02.01 zip 631 MB EN
Machine Control Studio V1.2 zip 630 MB EN
SyPTPro Upgrade – Supports the SI-Applications Plus module (Unidrive M700). Requires a previously registered v2.0.5 onwards. See SyPTPro page for more V2.6.11 zip 83 MB EN
SyPTPro Upgrade – Supports the SI-Applications Plus module (Unidrive M700). Requires a previously registered v2.0.5 onwards. See SyPTPro page for more V02.06.12 zip 82 MB EN

Firmware Archive

TitleIssueFile
Type
SizeLang
Firmware version V01.03.04.02 for Unidrive M200 through Unidrive M400 V01.03 zip 1.19 MB EN
Firmware version V01.06.00.00 for Unidrive M600 through Unidrive M800. ZIP file includes a Read Me file and the disk image for the firmware install Issue1.06 zip 646 KB EN
MCi2x0 Firmware (Machine Control Studio v01.02.01 or later required) v1.5.1.10 v1.5.1.10 zip 505 KB EN
SI-Applications Plus Firmware V02.06.00 V02.06.00 zip 244 KB EN
SI-Applications Plus Firmware V020200 02.02 zip 248 KB EN
SI-Applications Plus Firmware V2.4.0 V2.4.0 zip 247 KB EN
SI-CANopen Firmware V1.2.1.10 V1.2.1.10 zip 207 KB EN
SI-DeviceNet Firmware V1.1.0.8 V1.1.0.8 zip 91 KB EN
SI-EtherCAT Firmware V01.01.00.12 01.01 zip 176 KB EN
SI-EtherCAT Firmware V01.01.02.02 V1.1.2.2 zip 173 KB EN
SI-Ethernet Firmware V01.04.00.10 01.04 zip 264 KB EN
SI-Ethernet Firmware (Including Unidrive M700 and M702 Onboard Ethernet) V1.4.2.8 zip 258 KB EN
SI-Ethernet Firmware (Including Unidrive M700 and M702 Onboard Ethernet) V01.04.01.04 V.1.4.1.4 zip 258 KB EN
SI-Ethernet Firmware (Including Unidrive M700 and M702 Onboard Ethernet) V01.06.00.22 V1.6.0.22 zip 255 KB EN
SI-I/O Firmware V2.1.1.2 V2.1.1.2 zip 76 KB EN
SI-Profibus Firmware V01.04.00.10 V1.4.0.1 zip 110 KB EN
SI-Universal Encoder Firmware V01.00.03.02 V1.0.3.2 zip 79 KB EN
SI-Universal Encoder Firmware V1.0.1.2 V1.0.1.2 zip 79 KB EN
Unidrive M200-M400 User Firmware V01040304 V1.4.3.4 zip 972 KB EN
Unidrive M600 to M70x Firmware V1.12.3 zip 2.00 MB EN
Unidrive M600 to M70x Firmware V01.11.01.00 01110100 zip 2.00 MB EN
Unidrive M600 to M70x Firmware V01.13.00.00 V01.13.00 zip 1.50 MB EN
Unidrive M600 to M70x Firmware V01.13.01.00 V01.13.01 zip 2.00 MB EN

Похожие товары

Unidrive M300 75 kW - Тяжелый режим / 90 kW — Нормальный режим, 380/480 VAC, Three Phase

Изделие: M300-08401570
M300 - соответствует требованиям современных стандартов функциональной безопасности. Два встроенных входа безопасного отключения момента (STO) обеспечивают простоту соблюдения класса надежности SIL3.

Розничная цена: 2089319
БЫСТРЫЙ ЗАКАЗ
Unidrive M300 22 kW - Тяжелый режим / 30 kW — Нормальный режим, 500/575 VAC, Three Phase

Изделие: M300-06500350
M300 - соответствует требованиям современных стандартов функциональной безопасности. Два встроенных входа безопасного отключения момента (STO) обеспечивают простоту соблюдения класса надежности SIL3.

Розничная цена: 1030953
БЫСТРЫЙ ЗАКАЗ
Unidrive M300 3 kW - Тяжелый режим / 3 kW — Нормальный режим, 380/480 VAC, Three Phase

Изделие: M300-03400073
M300 - соответствует требованиям современных стандартов функциональной безопасности. Два встроенных входа безопасного отключения момента (STO) обеспечивают простоту соблюдения класса надежности SIL3.

Розничная цена: 202952
БЫСТРЫЙ ЗАКАЗ
Unidrive M300 0.55 kW - Тяжелый режим / 0.55 kW - Нормальный режим, 200/240 VAC, Single Phase

Изделие: M300-01200033
M300 - соответствует требованиям современных стандартов функциональной безопасности. Два встроенных входа безопасного отключения момента (STO) обеспечивают простоту соблюдения класса надежности SIL3.

Розничная цена: 80844
БЫСТРЫЙ ЗАКАЗ

Наши услуги

36 реализованных проекта

Производители

PHH 600300589924
ИКК KZ87826A1KTD2014870
БИК ALMNKZKA AO "АТФ" Банка с Алматы
БИН 101040014805
Разработка сайта
ТОО «Control Link» | Республика Казахстан | г. Алматы | Ауэзовский район | ул. Толе Би | д. 302, Литер Д | офис № 205 Компания ТОО CONTROL LINK создана в 2010 г. как инжиниринговая компания с целью комплексных поставок и внедрения средств автоматизации технологических процессов (АСУ ТП), систем обеспечения связи, контроля и безопасности на объекте. Company Formation CONTROL LINK LLP was created in 2010 as an engineering company for the purpose of integrated supply and implementation of process automation (APCS) systems, communication, control and security at the facility.
РНН 600300589924 | ИИК KZ67826A1KZTD2014970 | БИК АLMNKZKA АО «АТФ Банк» | г.Алматы БИН 101040014805
Адрес:

г. Алматы, Ауэзовский район
ул. Толе Би 302, Литер "Д"
офис № 205

Телефон:

+7 (727) 268-0321
+7 (701) 082-9486
+7 (707) 493-7210

Факс:

+7 (727) 268-0321

Яндекс.Метрика
