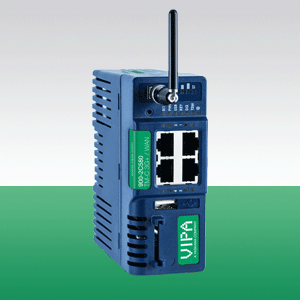

TM-C VPN Router 3G+/WAN/LAN

Изделие: 900-2C580


Краткое описание:
Коммуникационный модуль TM-C VPN Router 3G+/WAN/LAN, модем 3G+, 4x RJ45 LAN 100 Мбит/с, 2xDI, 1xDO, поддержка OpenVPN, напряжение питания 12-24 В пост. тока
Производитель: VIPA
Вес: 0.2 кг.
Розничная цена: 278424 ₸
БЫСТРЫЙ ЗАКАЗ

TM-C Router VPN 900-2C580

Коммуникационный модуль TM-C VPN Router 3G+/WAN/LAN, модем 3G+, 4x RJ45 LAN 100 Мбит/с, 2xDI, 1xDO, поддержка OpenVPN, напряжение питания 12-24 В пост. тока

Наименование
TM-C VPN Router 3G+/WAN/LAN
Габарит
42.6 x 107.8 x 98.3 мм
Вес
202 г
Температура окружающей среды
работа: -20…+70°С
хранение: -40 °C to 70 °C
Серия
Communication module

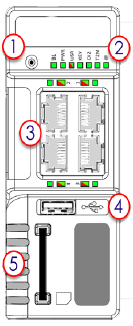

  1. Reset button
  2. Status LEDs panel
  3. LAN/WAN Ethernet ports and corresponding status LEDs
    (Red: WAN / Green: LAN)
  4. USB slot
  5. SD card slot





Main Connector      Characteristic     Value
 Connector type

 MINICONNEC MC model
 Type MC 1,5/9-ST-3,5
 Pitch = 3.50 mm
 9-pin female



      PIN             ICON       ID Description
 1  O-  DO_COM

 Output signal (0V ground)
 connected to the emitter of the MOSFET transistor

 2  O  DO

 Output signal
 connected to the drain of the MOSFET transistor

 3  O+

 DO_VDC

 Common of the external predrive power supply
 (12 - 24 VDC)

 4  i-

 DI_COM

 Ground of the input (isolated)
 5  i1

 DI1

 Input signal 1
 6  i2

 DI2

 Input signal 2
 7  +

 Power in VDD +

 12 - 24 VDC
 8  -

 Power in GND -

 0V
 9

 Functional Earth









Status LED panel (All version)





     Label     Description
BI1

 Button BI1 input
 Green ON = Reset being pressed

PWR

 Power
 Green ON = Power is present

USR

 User
 Green ON+OFF slowly = Unit is OK red pattern = special attention required

KEY

 Digital IN 1 - Green = ON: Signal on input 1 detected

DI2

 Digital IN 2 - Green = ON: Signal on input 2 detected

T2M  Talk2M - Green ON = Talk2M VPN connection established
@

 Internet
 Green ON = Internet is configured on the VIPA TM-C







Status LED panel (TM-C - WiFi)

  1. SMA male connector for WiFi antenna
  2. Modem status Green ON = WiFi connected
  3. Reception signal level Red ON = poor signal
  4. Reception signal level Red ON = Signal is OK
  5. Reception signal level Red ON = good signal







Status LED panel (TM-C - 3G+)

  1. SMA female connector for GSM antenna
  2. Modem status Green ON = Modem connected
  3. Reception signal level Red ON = poor signal
  4. Reception signal level Red ON = Signal is OK
  5. Reception signal level Red ON = good signal







Дополнительные принадлежности

 Компактная антенна GSM/UMTS

 900-0AB50

 кабель 5 м, соединитель SMA (вилка)

 Штыревая антенна GSM/GPRS

 900-0AQ51

 кабель 5 м, соединитель SMA (вилка)

Order no.

900-2C580

Type -

General information

Note -
Features 3G+ modem for external broadband communication
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)␍
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control

Inputs and outputs

Inputs -
Outputs -

Communication

serial port USB
LAN -
WAN -
Modem type -

Router

Router functions -
RAS -

VPN

VPN mode -
Talk2M -
Gateway protocols -

Services

Server services FTP
HTTP
Client Services NTP
SNMP V1

Data management

Custom Website -
Project web interface
Integrated protocols -

Interrupts

Alarm message -
Alarm -

Housing

Material -
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 42.6 mm x 107.8 mm x 98.3 mm
Weight 202 g

Environmental conditions

Operating temperature -20 °C to 70 °C
Storage temperature -40 °C to 70 °C

Certifications

UL certification yes
KC certification yes
Order no.Name/Description

900-2C510

TM-C VPN Router WAN/LAN
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C520

TM-C VPN Router WIFI/WAN/LAN
WIFI interface for connection to a WIFI network
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C580

TM-C VPN Router 3G+/WAN/LAN
3G+ modem for external broadband communication
4x RJ45 LAN 100 Mbit/s (configurable LAN/WAN)␍
2x digital input for internet release
1x digital output for display Talk2M
integrated web interface for configuration
OpenVPN for save internet connection with Talk2M
high level protection through access control
 [Datasheet]
 [Manual]

900-2C610

TM-C Router
For teleservice through broadband connection via Talk2M
1x RS485 MPI-/PROFIBUS-DP interface
4x LAN RJ45 Ethernet interface
1x WAN RJ45 Ethernet interface
 [Datasheet]
 [Manual]

900-2H611

TM-H Router VPN
For teleservice through a broadband connection via Talk2M & VPN
1x RS485 MPI-/PROFIBUS-DP interface
4x LAN RJ45 Ethernet interface
1x WAN RJ45 Ethernet interface
 [Datasheet]
 [Manual]

900-2H682

TM-H Router VPN/HSPA/Ethernet/MPI  [Datasheet]
 [Manual]

900-0AB50

TM antenna GSM/UMTS

910-1EN50

Industrial-Switch EN5-R
5x RJ45 10/100BaseTX full / half Duplex␍
Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition
Redundant power supply for 12-45 VDC
IP30 aluminium housing for DIN rail mounting
 [Manual]

910-1EN80

Industrial-Switch EN8-R
8x RJ45 10/100BaseTX full / half Duplex␍
Supports IEEE 802.3 and IEEE 802.3u/x and automatic MDI/MDI-X recognition
Redundant power supply for 12-45 VDC
IP30 aluminium housing for DIN rail mountin
 [Manual]
911-2PN50 Industrial-Switch PN5-RD␍
PROFINET v2 Conformance Class B
Profinet diagnosis via GSD integration
Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP
Port mirroring
PROFINET I/O parameters, I/O cyclic data, DCP, DHCP
Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍
 [Manual]
911-2PN80 Industrial-Switch PN8-RD
PROFINET v2 Conformance Class B
Profinet diagnosis via GSD integration
Management functions such as IGMP Snooping, IEEE 802.1Q VLAN, QoS, RMON, SNMP
Port mirroring
PROFINET I/O parameters, I/O cyclic data, DCP, DHCP
Turbo Ring and Turbo Chain (recovery time < 20 ms) ␍
 [Manual]
920-1BB10 Profibus-Repeater B1
Transparent for all PROFIBUS DP protocols ␍
1 segment and 31 deivces per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on the baud rate)␍
No Profibus address required
 [Manual]
920-1BD10 Profibus-Repeater D1 IP66
Screw terminal and DB9 plug connector
Integrated terminators (disconnectable)
Redundant power supply
 [Manual]
920-1CA50 MultiRepeaterA5
5 segmente and 31 divces per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on baud rate)␍
Integrated terminators (disconnectable)
 [Manual]
920-1CB20 Profibus-MultiRepeaterB2-R
2 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)
1200 m segment length (depending on baud rate)
Integrated terminators (disconnectable)
telegram check (integrity check)
Alarm contact and Redundant power supply
 [Manual]
920-1CB50 Profibus-MultiRepeaterB5-R
5 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)␍
1200 m segment length (depending on baud rate)␍
Integrated terminators (dis-connectable)
Alarm contact
Redundant power supply
 [Manual]
920-1DB50 Profibus-MultiRepeater B5-R
5 segmente and 31 devices per channel
9.6 Kbps .. 12 Mbps (automatic recognition)
1200 m segment length (depending on the baud rate)
Integrated terminators (disconnectable)
Alarm contact and Redundant power supply
 [Manual]
921-1EB50 Profibus-MultiRepeaterB5-R
Changes at the speed in the ongoing operation
Screw and DB9 terminal
Grounding option configurable
Integrated terminators
Redundant power supply
 [Manual]
924-1BB10 Profibus-TermT1
9,6 Kbps up to 12 Mbps
Removable screw terminals and 1 DB9 terminal
Power supply specifications
Redundancy: current 1 OR 2
Diagnostic LEDs
 [Manual]
