CP1242-7 V2

Изделие: 6GK7242-7KX31-0XE0


Краткое описание:
CP 1242-7 V2 COMMUNICATIONS PROCESSOR FOR CONNECTING SIMATIC S7-1200 TO GSM/GPRS NETWORK; WEB SERVER ACCESS TO CPU, DATA POINT CONFIGURING, PLEASE NOTE NATIONAL APPROVALS!
Производитель: SIEMENS
Вес: 0.37 кг.
Цена по запросу.
БЫСТРЫЙ ЗАКАЗ

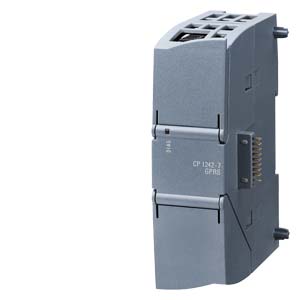

CP 1242-7 V2 COMMUNICATIONS PROCESSOR FOR CONNECTING SIMATIC S7-1200 TO GSM/GPRS NETWORK; WEB SERVER ACCESS TO CPU, DATA POINT CONFIGURING, PLEASE NOTE NATIONAL APPROVALS!

Order number

6GK7242-7KX31-0XE0

Product type designation

CP 1242-7 V2

Transmission rate



Transfer rate



  • ● for GPRS transmission with downlink maximum

86 kbit/s

  • ● for GPRS transmission with uplink maximum

43 kbit/s

Interfaces



Number of interfaces acc. to Industrial Ethernet

0

Number of electrical connections



  • ● for external antenna(s)

1

  • ● for power supply

1

Number of slots



  • ● for SIM cards

1

Type of electrical connection



  • ● for external antenna(s)

SMA socket (50 ohms)

  • ● for power supply

3-pole terminal block

Slot version



  • ● for SIM card

Standard

Wireless technology



Type of mobile wireless service



  • ● is supported

SMS, GPRS

  • ● Note

GPRS (Multislot Class 10)

Type of mobile network is supported

GSM

Operating frequency

850 MHz, 900 MHz, 1800 MHz, 1900 MHz

Transmit power



  • ● at operating frequency 900 MHz

2 W

  • ● at operating frequency 1800 MHz

1 W

  • ● at operating frequency 1900 MHz

1 W

Supply voltage, current consumption, power loss



Type of voltage of the supply voltage

DC

Supply voltage external

24 V

Relative positive tolerance for DC at 24 V

20 %

Relative negative tolerance for DC at 24 V

20 %

Consumed current



  • ● from external supply voltage for DC at 24 V typical

0.1 A

  • ● from external supply voltage for DC at 24 V maximum

0.22 A

Active power loss

2.4 W

Permitted ambient conditions



Ambient temperature



  • ● for vertical installation during operation

-20 ... +60 °C

  • ● for horizontally arranged busbars during operation

-20 ... +70 °C

  • ● during storage

-40 ... +70 °C

  • ● during transport

-40 ... +70 °C

Relative humidity at 25 °C without condensation during operation maximum

95 %

Protection class IP

IP20

Design, dimensions and weight



Module format

Compact module S7-1200 single width

Width

30 mm

Height

100 mm

Depth

75 mm

Net weight

0.133 kg

Mounting type



  • ● 35 mm DIN rail mounting

Yes

  • ● S7-300 rail mounting

No

  • ● wall mounting

Yes

Product properties, functions, components general



Number of units



  • ● per CPU maximum

3

Performance data



Number of users/telephone numbers definable maximum

10

Performance data open communication



Number of possible connections for open communication



  • ● by means of T blocks maximum

like CPU

Performance data IT functions



Number of possible connections



  • ● as e-mail client maximum

1

Performance data telecontrol



Control center connection

Telecontrol Server Basic

Control center connection by means of a permanent connection

supported

Control center connection by means of demand-oriented connection

supported

Control center connection Note

Connection to Scada system using OPC interface

Protocol is supported



  • ● DNP3

No

  • ● IEC 60870-5

No

Product function data buffering if connection is aborted

Yes

  • ● Note

64,000 values

Performance data Teleservice



Diagnostics function online diagnostics with SIMATIC STEP 7

Yes

Product function



  • ● program download with SIMATIC STEP 7

Yes

  • ● Remote firmware update

Yes

Product functions management, configuration



Configuration software



  • ● required

STEP 7 Basic/Professional V13 SP1 or higher

Product functions Security



Product function



  • ● password protection for teleservice access

Yes

  • ● encrypted data transmission

Yes

Product functions Time



Protocol is supported NTP

Yes

time synchronization



  • ● from control station

Yes

SIMATIC STEP 7 BASIC V13, ПО РАЗРАБОТКИ В TIA PORTAL; ПЛАВАЮЩАЯ ЛИЦЕНЗИЯ, ПО И ДОК. НА DVD, CLASS A, ЛИЦ. КЛЮЧ НА USB, 6 ЯЗЫКОВ (НЕМ., АНГЛ., ИТ. , ФР., ИСП., КИТ.), РАБОТА ПОД WINDOWS 7 (32/64 БИТ), WINDOWS 8 SP1 (64 БИТ); ДЛЯ НАСТРОЙКИ КОНТРОЛЛЕРОВ SIMATIC S7-1200, ПАНЕЛЕЙ SIMATIC BASIC
SIMATIC STEP 7 BASIC V13 TRIAL, ПО РАЗРАБОТКИ В TIA PORTAL; ПРОБНАЯ ЛИЦЕНЗИЯ НА 21 ДЕНЬ, ПО И ДОК. НА DVD, CLASS A, ЛИЦ. КЛЮЧ НА USB, 6 ЯЗЫКОВ (НЕМ., АНГЛ., ИТ., ФР., ИСП., КИТ.), РАБОТА ПОД WINDOWS 7 (32/64 БИТ), WINDOWS 8 SP1 (64 БИТ); ДЛЯ НАСТРОЙКИ КОНТРОЛЛЕРОВ SIMATIC S7-1200, ПАНЕЛЕЙ SIMATIC BASIC
ОБНОВЛЕНИЕ SIMATIC STEP 7 BASIC V11..V12 -> V13, ПО РАЗРАБОТКИ В TIA PORTAL; ПЛАВАЮЩАЯ ЛИЦЕНЗИЯ, ПО И ДОК. НА DVD, CLASS A, ЛИЦ. КЛЮЧ НА USB, 6 ЯЗЫКОВ (НЕМ., АНГЛ., ИТ. , ФР., ИСП., КИТ.), РАБОТА ПОД WINDOWS 7 (32/64 БИТ), WINDOWS 8 SP1 (64 БИТ); ДЛЯ НАСТРОЙКИ КОНТРОЛЛЕРОВ SIMATIC S7-1200, ПАНЕЛЕЙ SIMATIC BASIC
АНТЕННА ANT 794-4MR, ЧЕТЫРЕХДИАПАЗОННЫЙ GSM И UMTS; ЗАЩАИЩЕННАЯ ОТ ПОГОДНОГО ВЛИЯНИЯ ДЛЯ УСТАНОВКИ ВНУТРИ И ВНЕ ЗДАНИЙ; 5M-СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ С "НИЗКИМИ ПОТЕРЯМИ" ПОДКЛЮЧЕННЫЙ К АНТЕННЕ; SMA-СОЕДИНИТЕЛЬ; МОНТАЖНЫЙ КРОНШТЕЙН; ВИНТЫ; ДЮБЕЛИ;
Плоская антенна для GSM - (2G) сети, 900/1800/1900 МГц; Для внутреннего и наружного монтажа; SMA коннектор; в комплект входит монтажная панель
TELECONTROL SERVER BASIC 8 V3; SINGLE LICENSE FOR 1 INSTAL- LATION; OPC (UA)-SERVER FOR IP-COMMUNICATION W. S7-1200 A. S7-200; CONNECT. MANAGEMENT TO 8 REMOTE STATIONS; ROUTING BETWEEN S7 STATIONS; MULTI PROJECT-CAPABLE; WIRING DIAGNOSTICS;STATION MONITORING; TELESERVICE GATEWAY; IMPORT OF SINAUT MICRO SC PROJECTS; GERMAN AND ENGLISH USER INTERFACE; DOCUMENTATION ON CD IN GERMAN AND ENGLISH,
TELECONTROL SERVER BASIC 64 V3; SINGLE LICENSE FOR 1 INSTAL- LATION; OPC (UA)-SERVER FOR IP-COMMUNICATION W. S7-1200 A. S7-200; CONNECT. MANAGEMENT TO 64 REMOTE STATIONS; ROUTING BETWEEN S7 STATIONS; MULTI PROJECT-CAPABLE; WIRING DIAGNOSTICS;STATION MONITORING; TELESERVICE GATEWAY; IMPORT OF SINAUT MICRO SC PROJECTS; GERMAN AND ENGLISH USER INTERFACE; DOCUMENTATION ON CD IN GERMAN AND ENGLISH,
TELECONTROL SERVER BASIC 256 V3; SINGLE LICENSE FOR 1 IN- STALLATION; OPC (UA)-SERVER FOR IP-COMMUNICATION W. S7-1200 A. S7-200; CONNECT. MANAGEMENT TO 256 REMOTE STATIONS; ROUTING BETWEEN S7 STATIONS; MULTI PROJECT-CAPABLE; WIRING DIAGNOSTICS;STATION MONITORING; REDUNDANCY;TELESERVICE GATEWAY; IMPORT OF SINAUT MICRO SC PROJECTS; GERMAN AND ENGLISH USER INTERFACE; DOCUMENTATION ON CD IN GERMAN AND ENGLISH,
TELECONTROL SERVER BASIC 1000 V3; SINGLE LICENSE FOR 1 IN- STALLATION; OPC (UA)-SERVER FOR IP-COMMUNICATION W. S7-1200 A. S7-200; CONNECT. MANAGEMENT TO 1000 REMOTE STATIONS; ROUTING BETWEEN S7 STATIONS; MULTI PROJECT-CAPABLE; WIRING DIAGNOSTICS;STATION MONITORING; REDUNDANCY;TELESERVICE GATEWAY; IMPORT OF SINAUT MICRO SC PROJECTS; GERMAN AND ENGLISH USER INTERFACE; DOCUMENTATION ON CD IN GERMAN AND ENGLISH,
TELECONTROL SERVER BASIC 5000 V3; SINGLE LICENSE FOR 1 IN- STALLATION; OPC (UA)-SERVER FOR IP-COMMUNICATION W. S7-1200 A. S7-200; CONNECT. MANAGEMENT TO 5000 REMOTE STATIONS; ROUTING BETWEEN S7 STATIONS; MULTI PROJECT-CAPABLE; WIRING DIAGNOSTICS;STATION MONITORING; REDUNDANCY;TELESERVICE GATEWAY; IMPORT OF SINAUT MICRO SC PROJECTS; GERMAN AND ENGLISH USER INTERFACE; DOCUMENTATION ON CD IN GERMAN AND ENGLISH,
TELECONTROL SERVER BASIC 32 V3; SINGLE LICENSE FOR 1 INSTAL- LATION; OPC (UA)-SERVER FOR IP-COMMUNICATION W. S7-1200 AND S7-200; CONNECT. MANAGEMENT TO 32 REMOTE STATIONS; ROUTING BETWEEN S7 STATIONS; MULTI PROJECT-CAPABLE; WIRING DIAGNOSTICS;STATION MONITORING; TELESERVICE GATEWAY; IMPORT OF SINAUT MICRO SC PROJECTS; GERMAN AND ENGLISH USER INTERFACE; DOCUMENTATION ON CD IN GERMAN AND ENGLISH,
TELECONTROL SERVER BASIC UPGR V3; UPGRADE OF V2.X TO V3; OPC (UA)-SERVER FOR IP- COMMUNICATION WITH S7-1200 AND S7-200; CONNECT. MANAGEMENT; ROUTING BETWEEN S7 STATIONS; MULTI PROJECT-CAPABLE; WIRING DIAGNOSTICS;STATION MONITORING; TELESERVICE GATEWAY; IMPORT OF SINAUT MICRO SC PROJECTS; GERMAN AND ENGLISH USER INTERFACE; DOCUMENTATION ON CD IN GERMAN AND ENGLISH,

Обзор

The CP 1242-7 GPRS V2 communications processor is used to connect a SIMATIC S7-1200 to the globally available GSM/GPRS mobile radio network and has the following characteristics:

  • Worldwide wireless exchange of data between S7-1200 controllers and/or between S7-1200 controllers and control centers with an Internet connection
  • Communication based on the GPRS (General Packet Radio Service) mobile wireless service with data transmission speeds of up to 86 Kbit/s in the downlink and 43 Kbit/s in the uplink
  • GPRS mode with fixed IP addresses and dynamic IP addresses with standard mobile phone contract
  • Time synchronization on the basis of NTP (Network Time Protocol)
  • Sending and receiving of text messages
  • LED signaling for fast diagnostics
  • Compact industrial enclosure in S7-1200 design for mounting on a standard mounting rail
  • Fast commissioning thanks to easy configuration using STEP 7

In conjunction with the TeleControl Server Basic software, the CP 1242-7 forms a telecontrol system with additional properties:

  • Connection of up to 5000 telecontrol stations to the control center via an OPC interface
  • Data buffering in the substations in the event of connection failures
  • Central status monitoring of the substations
  • No special provider services required for fixed IP addresses
  • Teleservice access with STEP 7 to the substations via the Internet

The CP 1242-7 V2 is a new product version of the CP 1242-7. The concept for process data transmission has been expanded with a simple data point configuration, which enables substantially easier commissioning without high programming overhead and minimizes susceptibility to errors during the projects implementation phase. CP 1242-7 has also been equipped with new functions, such as access to the internal Web server of the S7-1200. This opens up numerous new application areas.



Особенности

  • Fully automatic time stamp
    To enable subsequent and correct archiving of process data in the control system, all data frames are assigned with a time stamp at their place of origin.
  • Fast and flexible data communication
    Operators are therefore quickly provided with alarms, statuses and values from the process, and they can influence process control by entering commands or setpoints at any time.
  • Simple and low-cost engineering
    The cyclic or event-controller transfer of measurements, setpoints or alarms can be implemented in only a few operations and without programming effort.
  • Remote diagnostics
    Saves traveling and maintenance costs due to cost-effective remote programming, diagnostics, control and monitoring via the Internet.


Область применения

Using CP1242-7 GPRS V2 enables the S7-1200 to be used as a remote terminal unit (substation) in telecontrol applications. Typical application examples are the collection of measured values in outdoor areas over widely distributed geographical areas (level measurement for water tanks in the water/waste water industry) or centralized opening and closing of valves (oil/gas transport in pipelines).

  • Data exchange and centralized data monitoring for automation solutions spread over large geographical areas
  • Establishment of permanent or temporary communication link for mobile machines/vehicles without permanent location
  • Global remote access to the end customer's machinery in compliance with IT security requirements
  • Connection of difficult-to-access external stations without a network infrastructure

These applications can be found in the most diverse sectors:

  • Water/wastewater treatment plants – pump/valve controllers
  • Traffic and transportation – traffic light controls, lighting controls
  • Power engineering – monitoring of transformer stations, meter readout
  • Mechanical engineering – centralized remote maintenance of machines used around the world
  • Wind energy – condition monitoring of wind turbines
  • Vending machine manufacturers – monitoring, control of beverage vending machines


Дизайн

The CP 1242-7 GPRS V2 offers all the advantages of the S7-1200 design:

  • Rugged, compact plastic enclosure
  • Easily accessible connection and diagnostics elements, protected by front flaps
  • Removable connecting terminals
  • Simple mounting on the mounting rail of the S7-1200
  • 3-pin plug-in terminal strip for connection of the 24 V DC external supply voltage
  • SMA connection for GSM/GPRS antennas

The CCP 1242-7 GRPS V2 is plugged into the left system bus interface of the S7-1200. The power is supplied via a 3-pin terminal strip on top of the module. The antenna socket and the SIM card slot are located on the underside of the module, protected by the lower front flap.



Функции

The CP 1242-7 GPRS V2 is a communication module for the S7-1200. The module allows the S7-1200 to be connected as a remote station to TeleControl Server Basic via the mobile radio network in just a few steps.

Connection of the SIMATIC S7-1200 to TeleControl Server via mobile radio and DSL internet access

Completely configurable application through "data point configuration"

The introduction of the "data point configuration" in STEP 7 dispenses with all programming effort for transfer of data to the control center.

The data of the CPU relevant to the control center is selected via user-friendly "item browsing" in STEP 7. In a clearly-arranged menu, the data transfer parameters are then assigned to the data points selected in this way. The cyclic or event-controller transfer of measurements, setpoints or alarms can thus be implemented in only a few operations and without programming effort.

Data backup

Data losses are prevented by the data buffering mechanisms integrated in the product.

In the event of a connection failure, up to 64,000 time-stamped values are buffered. When the connection returns, the buffered values are automatically transferred to the control center in the right order.

E-mail notification

Alert e-mails can be configured for timely provision of stations' states to service or maintenance personnel. If previously defined events (such as threshold violation) should occur, application-specific information is sent automatically by e-mail.

Diagnostics

The CP 1242-7 GPRS V2 offers comprehensive diagnostic options for a quick and informative analysis of the station status. Elementary diagnostic information about the connection to the control center is signaled directly via LEDs at the CP.

Using STEP 7 and the Web server, comprehensive information can be retrieved, such as connection history, buffer status or the transferred measured values.

Remote maintenance

For remote access from the control center to the substation, the CP provides a remote maintenance port in parallel with process operation. This ensures access for monitoring and program changes.

Web server access

Access to the Web server of the CPU via the mobile wireless interface for easy diagnostics.
