PPC015 ES, Intel Atom D2550 dualcore @1,86 GHz, Work memory 2GB, SSD 16GB, Movicon11 Win Standard, ОС Windows Embedded Standard 7

Изделие: 67P-PNL0-JB


Краткое описание:
Экран 15,6", процессор Intel Atom D2550 1,86 ГГц, ОЗУ 2 Гбайт, SSD-накопитель 16 Гбайт, гнездо CFast, интерфейсы 2xEthernet (10/100/1000), 4xUSB 2.0, 2x RS-232, RS-422/RS-485, выход Audio; предустановленные ОС Windows Embedded Compact 7 и среда исполнения Movicon11 Win Standard (32 байта ввода-вывода)
Производитель: VIPA
Вес: 6.2 кг.
Цена по запросу.
БЫСТРЫЙ ЗАКАЗ

Panel PC PPC015 ES 67P-PNL0-JB

Панельный компьютер PPC015 ES, экран 15,6", процессор Intel Atom D2550 1,86 ГГц, ОЗУ 2 Гбайт, SSD-накопитель 16 Гбайт, гнездо CFast, интерфейсы 2xEthernet (10/100/1000), 4xUSB 2.0, 2x RS-232, RS-422/RS-485, выход Audio; предустановленные ОС Windows Embedded Standard 7 и среда исполнения Movicon 11 Win Standard (32 байта ввода-вывода)

Наименование

Panel PC PPC015 ES

Тип
67P-PNL0-JB
Описание
процессор Intel Atom D2550 1,86 ГГц, ОЗУ 2 Гбайт, SSD-накопитель 16 Гбайт,
гнездо CFast, выход Audio; предустановленные ОС  Windows
Embedded Compact 7 и среда исполнения Movicon11 Win Standard
Напряжение питания
DC 24V
Степень защиты
IP 65
Интерфейс/коммуникации
2xEthernet (10/100/1000), 4xUSB 2.0, 2x RS-232, RS-422/RS-485
Габарит
417.8  x 312.8  x 63.8 мм
Температура окружающей
среды
работа: 0…+50°С
хранение: -20…+75°С
Серия

Panel PC

Диагональ
15,6



Вид спереди




  1. Slot for voltage supply (DC 12-30V)
  2. VGA interface
  3. Reset button
  4. RS232/RS422/RS485 interface COM 2
  5. RS232/RS422/RS485 interface COM 1
  6. 4x"Host"-USB-A interface
  7. RJ45 jack for Ethernet communication LAN 2
  8. RJ45 jack for Ethernet communication LAN 1
  9. 3.5mm Audio Line out
  10. Power switch (pushbutton)
  11. Slot for CFast storage media
  12. Display with touch sensitive area (touch screen)

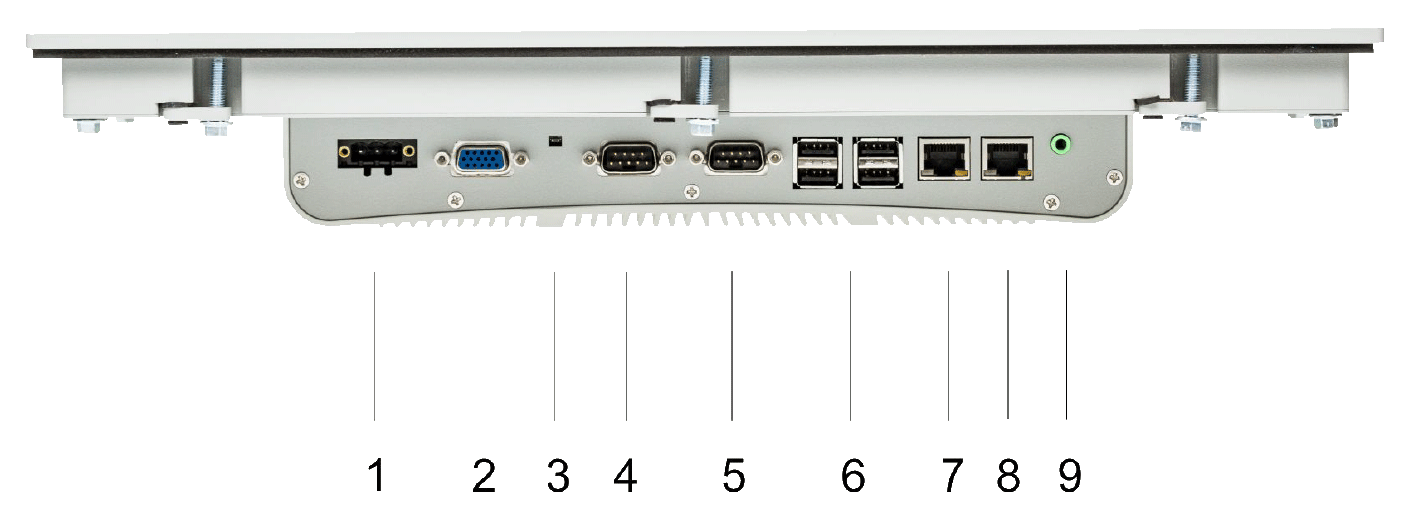

Вид снизу

  1. Slot for voltage supply (DC 12-30V)
  2. VGA interface
  3. Reset button
  4. RS232/RS422/RS485 interface COM 2
  5. RS232/RS422/RS485 interface COM 1
  6. 4x"Host"-USB-A interface
  7. RJ45 jack for Ethernet communication LAN 2
  8. RJ45 jack for Ethernet communication LAN 1
  9. 3.5mm Audio Line out

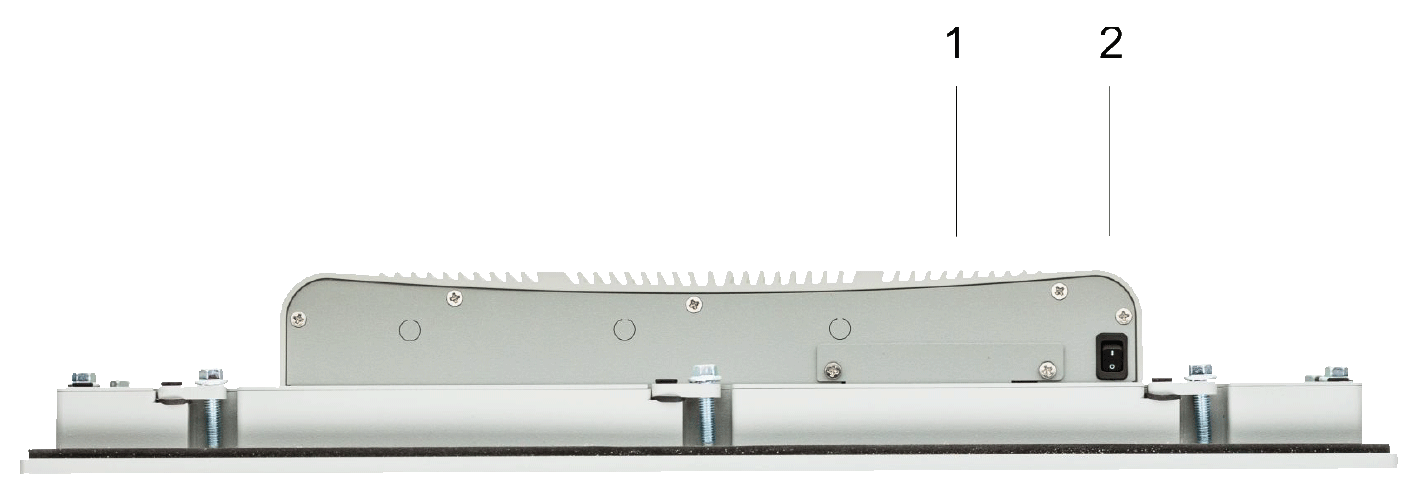

Вид сверху

  1. Slot for CFast storage media
  2. Power switch (pushbutton)





Интерфейсы

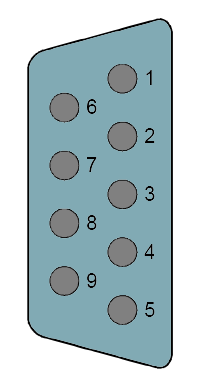

RS232/RS422/RS485    Описание       Line out    Описание

  1. DCD / TxD- / TxD-/RxD-
  2. RxD / TxD+ / TxD+/RxD+
  3. TxD / RxD+ / reserve
  4. DTR / RxD- / reserve
  5. GND / GND / reserve
  6. DSR / RTS- / reserve
  7. RTS / RTS+ / reserve
  8. CTS / CTS+ / reserve
  9. RI (+5V) / CTS- / reserve (+12V)

  1. LOUT_R
  2. JD
  3. NC
  4. LOUT_L
  5. GND
  6. GND

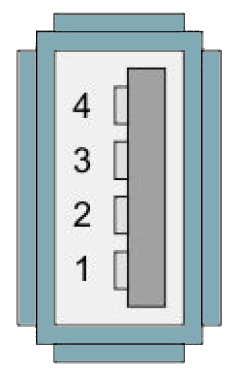

    USB-A    Описание

  1. VCC
  2. DM
  3. DP
  4. GND

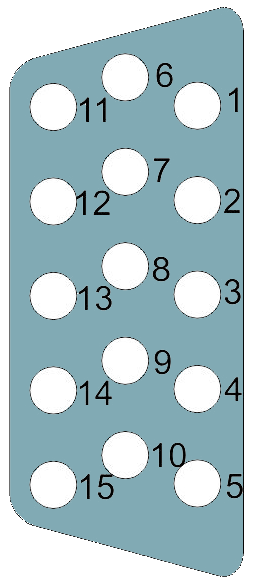

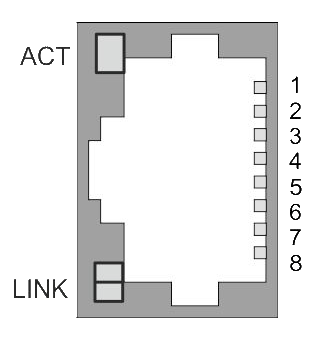

VGA   Описание   RJ45   Описание

  1. red
  2. green
  3. blue
  4. n.c.
  5. GND
  6. GND
  7. GND
  8. GND
  9. +5V
  10. GND
  11. n.c.
  12. DDC data
  13. HSYNC
  14. VSYNC
  15. DDC clock

  1. Tx+
  2. Tx-
  3. Rx+
  4. -
  5. -
  6. Rx-
  7. -
  8. -

    DC 12-30V


Order no.

67P-PNL0-JB

Type Panel PC PPC015 ES

General information

Note -
Features Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 16 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 15.6”
Incl. operating system Windows Embedded Standard 7 and Runtime Movicon 11 Win Standard, 32 I/O Bytes␍

Display

Display size (diagonal) 15.6 "
Display size (width) 344 mm
Display size (height) 195 mm
Resolution 1366 x 768
Aspect ratio 16:9
Type of display TFT color (16.7M colors)
MTBF Backlights (25°C) 50000 h

System properties

Processor Intel Atom Dualcore 1.86 GHz
Operating system Windows embedded Standard 7
User software Movicon 11 Win Standard
Work memory 2 GB
User memory 16 GB
Available memory (user data) 9 GB
SD/MMC Slot -
CF Card Slot Typ II -
CFast Slot

Time

Real-time clock buffered
Clock buffered period (min.) 4 y
Type of buffering lithium battery
Load time for 50% buffering period -
Load time for 100% buffering period -
Accuracy (max. deviation per day) 10 s

Operating controls

Touchscreen PCAP
Touch function Dual Touch
Keyboard external via USB
Mouse external via USB

Interfaces

MPI, PROFIBUS-DP -
MPI, PROFIBUS-DP connector -
Serial, COM1 RS232 / RS422 / RS485
COM1 connector Sub-D, 9-pin, male
Serial, COM2 RS232 / RS422 / RS485
COM2 connector Sub-D, 9-pin, male
Number of USB-A interfaces 4
USB-A connector USB-A (host)
Number of USB-B interfaces -
USB-B connector -
Number of ethernet interfaces 2
Ethernet Ethernet 10/100/1000 MBit
Ethernet connector 2 x RJ45
Integrated ethernet switch -
Video connectors VGA SubD HD15
Audio connections Line out, stereo jack 3.5 mm

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 1.2 A
Current consumption (rated value) 1.3 A
Inrush current 1.3 A
I²t 0.35 A²s
Power loss 32 W

Status information, alarms, diagnostics

Supply voltage display none

Mechanical data

Housing / Protection type

Material coated aluminium steel plate
Mounting via integrated pivoted lever
Protect type front side IP 65
Protect type back side IP 20

Dimensions

Front panel 417.8 mm x 312.8 mm x 6.2 mm
Rear panel 396 mm x 291 mm x 57.6 mm

Installation cut-out

Width 401 mm
Height 296 mm
Minimum 3 mm
Maximum front panel thickness 12 mm
Weight 6.2 kg

Environmental conditions

Operating temperature 0 °C to 50 °C
Storage temperature -20 °C to 75 °C

Certifications

UL508 certification yes

67K-PNJ0-EB

Panel PC PPC010 CE

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 2 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 10.1”
Incl. operating system Windows Compact 7 and Runtime Movicon CE Standard
 [Datasheet]
 [Manual]

67K-PNL0-JB

Panel PC PPC010 ES

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 16 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232, RS422/RS485), Audio out
Display: 10.1”
Incl. operating system Windows Embedded Standard 7
 [Datasheet]
 [Manual]

67K-PNL0-JX

Panel PC PPC010 ES

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 16 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232, RS422/RS485), Audio out
Display: 10.1”
Incl. operating system Windows Embedded Standard 7
 [Datasheet]
 [Manual]

67P-PNJ0-EB

Panel PC PPC021 CE

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 2 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 21.5”
Incl. operating system Windows Embedded Compact 7 and Runtime Movicon CE Standard
 [Datasheet]
 [Manual]

67P-PNL0-JB

Panel PC PPC015 ES

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 16 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 15.6”
Incl. operating system Windows Embedded Standard 7 and Runtime Movicon 11 Win Standard, 32 I/O Bytes␍
 [Datasheet]
 [Manual]

67P-PNL0-JX

Panel PC PPC015 ES

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 16 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 15.6”
Incl. operating system Windows Embedded Standard 7
 [Datasheet]
 [Manual]

67S-PNJ0-EB

Panel PC PPC021 CE

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 2 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 21.5”
Incl. operating system Windows Embedded Standard 7 and Runtime Movicon CE Standard
 [Datasheet]
 [Manual]

67S-PNL0-JB

Panel PC PPC021 ES

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 16 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 21.5”
Incl. operating system Windows Embedded Standard 7 and Runtime Movicon 11 Win Standard␍
 [Datasheet]
 [Manual]

67S-PNL0-JX

Panel PC PPC021 ES

Processor: Intel Atom D2550 dualcore @1.86 GHz
Work memory: 2 GB
Operating system and user memory: 16 GB
Memory card plug-in place: CFast
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Display: 21.5”
Incl. operating system Windows Embedded Standard 7
 [Datasheet]
 [Manual]
