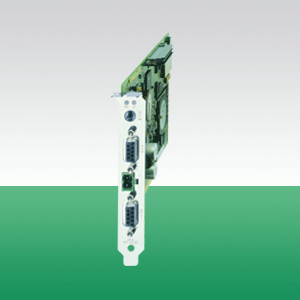

CPU 517S/DPM, 2...8 MB, MPI, MMC, real-time clock, PCI-Ethernet PG/OP, Profibus-DP master

Изделие: 517-2AJ02


Краткое описание:
Cистемная шина PCI, рабочая память 2 Мбайт (расширение до 8 Мбайт), порт MPI, гнездо MMC, порт PROFIBUS DP master, OPC-сервер в комплекте поставки
Производитель: VIPA
Вес: 0.29 кг.
Розничная цена: 861867
БЫСТРЫЙ ЗАКАЗ

CPU 517S/DPM 517-2AJ02 - Speed7 технология

CPU 517S/DPM-Speed7 технология, PC-слот CPU, DC 24V, 2MB...MB оперативной памяти, MPI-интерфейс, MMC слот, часы реального времени, PCI-Ethernet интерфейс для PG/OP связи, Profibus-DP Master 12Мбит/с, поставляется вместе с ОРС сервером

Наименование
CPU 517S/DPM
Тип
517-2AJ02
Габаритные размеры, В х Ш х Г, мм
20x106x174
Сайт производителя
www.vipa.de
Температура окружающей среды
0 °C .. 60 °C
Серия
500S
Тип интерфейса (электрический)
2xRJ45; PCI-Ethernet
Поддерживаемые протоколы
MPI; PROFIBUS DP master; PG/OP
Объем памяти
2 Мб





Profibus DP
  master interface
PBDP/PtP

 Описание          MPI interface    Описание

  1. shield
  2. M24V
  3. RxD/TxD-P (Line B)
  4. RTS
  5. M5V
  6. P5V
  7. P24V
  8. RxD/TxD-N (Line A)
  9. n.c.

  1. reserved (must not be connected)
  2. M24V
  3. RxD/TxD-P (Line B)
  4. RTS
  5. M5V
  6. P5V
  7. P24V
  8. RxD/TxD-N (Line A)
  9. n.c.
RS485   RS485







Модуль CPU                     Описание

  1. Clamp for internal DC 24V power supply
  2. LEDs for commissioning
  3. Lithium accumulator/battery for clock and user memory
  4. Storage media slot (here MMC is plugged)
  5. PCI bus pins
  6. RUN/STOP LEDs
  7. Operating mode switch
  8. Profibus DP master jack
  9. Plug for external DC 24V power supply
  10. MPI jack



Дополнительные принадлежности



 Другие принадлежности для этого товара

 Карты памяти MMC для расширение рабочей памяти

 Монтажные шины





Индикация состояния CPU

 LEDs  Label  Color  Description
Ethernet
 COLL   green   on: total duplex operation active
 off: half duplex operation active
 blinking: Collision detected
 SPEED   green  on: 100Mbit
 off: 10Mbit
 LINK  green  on: physical connection detected
 off: no physical connection
CPU
 MMC  yellow   blinks at MMC access
 FRCE   yellow   blinks as soon as variable are forced (fixed)
 SF   red

 blinks at system errors (hardware defect)

 PWR   green   CPU section is provided internal with 5V



Master operation

RUN
green

ERR
red

DE
green

IF
red

 Meaning

 Master has no project, this means the DP interface is not used.

 Master is in "clear" state (safety state). The inputs of the slaves may be read. The outputs are disabled.

 Master is in "operate" state (CPU RUN), this means data exchange between master and slaves.
 The outputs may be accessed.

 At least 1 slave is missing.
 At least 1 slave is missing.

 Waiting state for start command from CPU (state at start-up).



Slave operation

RUN
green

ERR
red

DE
green

IF
red

 Meaning

 Master has no project, this means the DP interface is not used.

 Master is in "clear" state (safety state). The inputs of the slaves may be read. The outputs are disabled.

 Master is in "operate" state (CPU RUN), this means data exchange between master and slaves.
 The outputs may be accessed.

 At least 1 slave is missing.

on: ● off: ○ flashing: ☼



Индикация состояния CPU на передней панели

  Label     Color     Description
ST yellow

 CPU is in STOP

RN green  CPU is in RUN

Order no.

517-2AJ02

Type CPU 517S/DPM

General information

Note -
Features SPEED7 technology
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 250 mA
Current consumption (rated value) 1 A
Inrush current 5 A
I²t 0.5 A²s
Max. current drain at backplane bus -
Power loss 5 W

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 250 mA
Current consumption (rated value) 1 A
Inrush current 5 A
I²t 0.5 A²s
Max. current drain at backplane bus -
Max. current drain load supply -
Power loss 5 W

Load and working memory

Load memory, integrated 8 MB
Load memory, maximum 8 MB
Work memory, integrated 2 MB
Work memory, maximal 8 MB
Memory divided in 50% program / 50% data
Memory card slot MMC-Card with max. 1 GB

Hardware configuration

Racks, max. -
Modules per rack, max. -
Number of integrated DP master 1
Number of DP master via CP -
Operable function modules -
Operable communication modules PtP -
Operable communication modules LAN -

Command processing times

Bit instructions, min. 0.01 µs
Word instruction, min. 0.01 µs
Double integer arithmetic, min. 0.01 µs
Floating-point arithmetic, min. 0.06 µs

Timers/Counters and their retentive characteristics

Number of S7 counters 2048
S7 counter remanence adjustable 0 up to 2048
S7 counter remanence adjustable C0 .. C7
Number of S7 times 2048
S7 times remanence adjustable 0 up to 2048
S7 times remanence adjustable not retentive

Data range and retentive characteristic

Number of flags 16384 Byte
Bit memories retentive characteristic adjustable adjustable 0 up to 16384
Bit memories retentive characteristic preset MB0 .. MB15
Number of data blocks 8190
Max. data blocks size 64 KB
Number range DBs 1 ... 8190
Max. local data size per execution level 510 Byte
Max. local data size per block -

Blocks

Number of OBs 24
Maximum OB size 64 KB
Total number DBs, FBs, FCs -
Number of FBs 8191
Maximum FB size 64 KB
Number range FBs 0 ... 8190
Number of FCs 8191
Maximum FC size 64 KB
Number range FCs 0 ... 8190
Maximum nesting depth per priority class 8
Maximum nesting depth additional within an error OB 4

Time

Real-time clock buffered
Clock buffered period (min.) 6 w
Type of buffering Vanadium Rechargeable Lithium Battery
Load time for 50% buffering period 20 h
Load time for 100% buffering period 48 h
Accuracy (max. deviation per day) 10 s
Number of operating hours counter 8
Clock synchronization
Synchronization via MPI Master/Slave
Synchronization via Ethernet (NTP) no

Address areas (I/O)

Input I/O address area 8192 Byte
Output I/O address area 8192 Byte
Process image adjustable
Input process image preset 256 Byte
Output process image preset 256 Byte
Input process image maximal 8192 Byte
Output process image maximal 8192 Byte
Digital inputs 65536
Digital outputs 65536
Digital inputs central -
Digital outputs central -
Integrated digital inputs -
Integrated digital outputs -
Analog inputs 4096
Analog outputs 4096
Analog inputs, central -
Analog outputs, central -
Integrated analog inputs -
Integrated analog outputs -

Communication functions

PG/OP channel
Global data communication
Number of GD circuits, max. 16
Size of GD packets, max. 54 Byte
S7 basic communication
S7 basic communication, user data per job 76 Byte
S7 communication
S7 communication as server
S7 communication as client -
S7 communication, user data per job 160 Byte
Number of connections, max. 32

Functionality Sub-D interfaces

Type X2
Type of interface RS485
Connector Sub-D, 9-pin, female
Electrically isolated
MPI
MP²I (MPI/RS232) -
DP master -
DP slave -
Point-to-point interface -

Type X3
Type of interface RS485
Connector Sub-D, 9-pin, female
Electrically isolated
MPI -
MP²I (MPI/RS232) -
DP master yes
DP slave yes
Point-to-point interface -

Functionality MPI

Number of connections, max. 32
PG/OP channel
Routing
Global data communication
S7 basic communication
S7 communication
S7 communication as server
S7 communication as client -
Transmission speed, min. 19.2 kbit/s
Transmission speed, max. 12 Mbit/s

Functionality PROFIBUS master

PG/OP channel
Routing
S7 basic communication
S7 communication
S7 communication as server
S7 communication as client -
Activation/deactivation of DP slaves
Direct data exchange (slave-to-slave communication) -
DPV1
Transmission speed, min. 9.6 kbit/s
Transmission speed, max. 12 Mbit/s
Number of DP slaves, max. 32
Address range inputs, max. 1 KB
Address range outputs, max. 1 KB
User data inputs per slave, max. 244 Byte
User data outputs per slave, max. 244 Byte

Functionality PROFIBUS slave

PG/OP channel
Routing
S7 communication
S7 communication as server
S7 communication as client -
Direct data exchange (slave-to-slave communication) -
DPV1
Transmission speed, min. 9.6 kbit/s
Transmission speed, max. 12 Mbit/s
Automatic detection of transmission speed -
Transfer memory inputs, max. 244 Byte
Transfer memory outputs, max. 244 Byte
Address areas, max. 32
User data per address area, max. 32 Byte

Functionality RJ45 interfaces

Type n/d
Type of interface Ethernet 10/100 MBit
Connector PCI bus
Electrically isolated
PG/OP channel
Number of connections, max. 4
Productive connections -

Type -
Type of interface -
Connector -
Electrically isolated -
PG/OP channel -
Number of connections, max. -
Productive connections -

Ethernet communication CP

Number of productive connections, max. -
Number of productive connections by Siemens NetPro, max. -
S7 connections -
User data per S7 connection, max. -
TCP-connections -
User data per TCP connection, max. -
ISO-connections -
User data per ISO connection, max. -
ISO on TCP connections (RFC 1006) -
User data per ISO on TCP connection, max. -
UDP-connections -
User data per UDP connection, max. -
UDP-multicast-connections -
UDP-broadcast-connections -

Ethernet open communication

Number of connections, max. -
User data per ISO on TCP connection, max. -
User data per native TCP connection, max. -
User data per ad hoc TCP connection, max. -
User data per UDP connection, max. -

Housing

Material -
Mounting -

Mechanical data

Dimensions (WxHxD) 20 mm x 106 mm x 174 mm
Weight 290 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification in preparation
Order no.Name/Description

515-2AJ02

CPU 515S/DPM - SPEED7 technology
SPEED7 technology
1 MB work memory
Memory extension (max. 2 MB)
PROFIBUS-DP master
 [Datasheet]
 [Manual]

517-2AJ02

CPU 517S/DPM - SPEED7 technology
SPEED7 technology
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master
 [Datasheet]
 [Manual]

517-4NE02

CPU 517SN/NET - SPEED7 technology
SPEED7 technology
2 MB work memory
Memory extension (max. 8 MB)
PROFIBUS-DP master and CP 543
 [Datasheet]
 [Manual]

Похожие товары

CPU 517S/NET, 2...8 MB, MPI, MMC, real-time clock, PCI-Ethernet PG/OP, Profibus-DP master, Ethernet CP 543

Изделие: 517-4NE02
Cистемная шина PCI, рабочая память 2 Мбайт (расширение до 8 Мбайт), порт MPI, гнездо MMC, порт PROFIBUS DP master, встроенный коммуникационный процессор Ethernet CP 543, OPC-сервер в комплекте поставки

Розничная цена: 1326297
БЫСТРЫЙ ЗАКАЗ
CPU 515S/DPM, 1 MB...2 MB, MPI, MMC, real-time clock, PCI-Ethernet PG/OP, Profibus-DP master

Изделие: 515-2AJ02
Системная шина PCI, рабочая память 1 Мбайт (расширение до 2 Мбайт), порт MPI, гнездо MMC, порт PROFIBUS DP master, OPC-сервер в комплекте поставки

Розничная цена: 554439
БЫСТРЫЙ ЗАКАЗ

Наши услуги

36 реализованных проекта

Производители

PHH 600300589924
ИКК KZ87826A1KTD2014870
БИК ALMNKZKA AO "АТФ" Банка с Алматы
БИН 101040014805
Разработка сайта
ТОО «Control Link» | Республика Казахстан | г. Алматы | Ауэзовский район | ул. Толе Би | д. 302, Литер Д | офис № 205 Компания ТОО CONTROL LINK создана в 2010 г. как инжиниринговая компания с целью комплексных поставок и внедрения средств автоматизации технологических процессов (АСУ ТП), систем обеспечения связи, контроля и безопасности на объекте. Company Formation CONTROL LINK LLP was created in 2010 as an engineering company for the purpose of integrated supply and implementation of process automation (APCS) systems, communication, control and security at the facility.
РНН 600300589924 | ИИК KZ67826A1KZTD2014970 | БИК АLMNKZKA АО «АТФ Банк» | г.Алматы БИН 101040014805
Адрес:

г. Алматы, Ауэзовский район
ул. Толе Би 302, Литер "Д"
офис № 205

Телефон:

+7 (727) 268-0321
+7 (701) 082-9486
+7 (707) 493-7210

Факс:

+7 (727) 268-0321

Яндекс.Метрика
