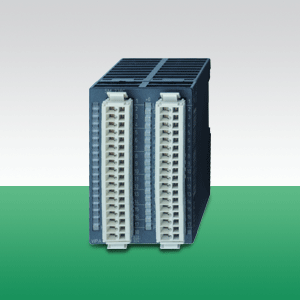

16(12) каналов DI 24 В пост. тока, 0(4) канала DO 24 В/1 А пост. тока, 3 счетчика (30 кГц, 32 разряда), 4 канала AI (16 разрядов, 3xU/I, 2 канала AO (12 разрядов, U/I)
Модули аналогового ввода-вывода используются для подключения к системе управления датчиков и исполнительных устройств и обеспечивают ее сопряжение с уровнем процесса. Модули аналогового ввода осуществляют преобразование аналоговых сигналов, поступающих от датчиков и других источников, в цифровую форму и передают их по системной шине в модуль ЦПУ или интерфейсный модуль. Модули аналогового вывода преобразуют цифровые данные, поступающие в них по системной шине, в непрерывные электрические сигналы управления исполнительными устройствами.
Order no. |
238-2BC00 |
Type | SM 238C, Digital In-/Output, Counter, Analog In-/Output |
General information |
|
Note | - |
Features | 16 (12) digital inputs 0 (4) digital outputs max. 3 counter 4 analog inputs 2 analog outputs |
Current consumption/power loss |
|
Current consumption from backplane bus | 280 mA |
Power loss | 5.5 W |
Technical data digital inputs |
|
Number of inputs | 16 |
Cable length, shielded | 1000 m |
Cable length, unshielded | 600 m |
Rated load voltage | - |
Current consumption from load voltage L+ (without load) | - |
Rated value | DC 20.4...28.8 V |
Input voltage for signal "0" | DC 0...5 V |
Input voltage for signal "1" | DC 15...28.8 V |
Input voltage hysteresis | - |
Frequency range | - |
Input resistance | - |
Input current for signal "1" | 7 mA |
Connection of Two-Wire-BEROs possible | |
Max. permissible BERO quiescent current | 1.5 mA |
Input delay of "0" to "1" | 3 ms |
Input delay of "1" to "0" | 3 ms |
Number of simultaneously utilizable inputs horizontal configuration | 16 |
Number of simultaneously utilizable inputs vertical configuration | 16 |
Input characteristic curve | IEC 61131-2, type 1 |
Initial data size | 16 Byte |
Technical data digital outputs |
|
Number of outputs | 4 |
Cable length, shielded | 1000 m |
Cable length, unshielded | 600 m |
Rated load voltage | DC 20.4...28.8 V |
Reverse polarity protection of rated load voltage | - |
Current consumption from load voltage L+ (without load) | 20 mA |
Total current per group, horizontal configuration, 40°C | 4 A |
Total current per group, horizontal configuration, 60°C | 2 A |
Total current per group, vertical configuration | 4 A |
Output voltage signal "1" at min. current | L+ (-125 mV) |
Output voltage signal "1" at max. current | L+ (-0.8 V) |
Output current at signal "1", rated value | 1 A |
Output delay of "0" to "1" | 150 µs |
Output delay of "1" to "0" | 100 µs |
Minimum load current | - |
Lamp load | 5 W |
Parallel switching of outputs for redundant control of a load | not possible |
Parallel switching of outputs for increased power | not possible |
Actuation of digital input | |
Switching frequency with resistive load | max. 1000 Hz |
Switching frequency with inductive load | max. 0.5 Hz |
Switching frequency on lamp load | max. 10 Hz |
Internal limitation of inductive shut-off voltage | L+ (-52 V) |
Short-circuit protection of output | yes, electronic |
Trigger level | 1.5 A |
Number of operating cycle of relay outputs | - |
Switching capacity of contacts | - |
Output data size | 16 Byte |
Technical data analog inputs |
|
Number of inputs | 4 |
Cable length, shielded | 200 m |
Rated load voltage | DC 24 V |
Reverse polarity protection of rated load voltage | |
Current consumption from load voltage L+ (without load) | 70 mA |
Voltage inputs | |
Min. input resistance (voltage range) | 120 kΩ |
Input voltage ranges | +1 V ... +5 V 0 V ... +10 V -10 V ... +10 V -400 mV ... +400 mV -4 V ... +4 V |
Operational limit of voltage ranges | +/-0.3% ... +/-0.7% |
Operational limit of voltage ranges with SFU | - |
Basic error limit voltage ranges with SFU | +/-0.2% ... +/-0.5% |
Basic error limit voltage ranges with SFU | - |
Destruction limit current | - |
Current inputs | |
Max. input resistance (current range) | 90 Ω |
Input current ranges | +4 mA ... +20 mA 0 mA ... +20 mA -20 mA ... +20 mA |
Operational limit of current ranges | +/-0.3% ... +/-0.8% |
Operational limit of current ranges with SFU | - |
Basic error limit current ranges | +/-0.2% ... +/-0.5% |
Radical error limit current ranges with SFU | - |
Destruction limit current inputs (electrical current) | - |
Destruction limit current inputs (voltage) | - |
Resistance inputs | |
Resistance ranges | 0 ... 600 Ohm 0 ... 3000 Ohm |
Operational limit of resistor ranges | +/-0.4% |
Operational limit of resistor ranges with SFU | - |
Basic error limit | +/-0.2% |
Basic error limit with SFU | - |
Destruction limit resistance inputs | - |
Resistance thermometer inputs | |
Resistance thermometer ranges | Pt100 Pt1000 Ni100 Ni1000 |
Operational limit of resistance thermometer ranges | +/-0.4% ... +/-1.0% |
Operational limit of resistance thermometer ranges with SFU | - |
Basic error limit thermoresistor ranges | +/-0.2% ... +/-0.5% |
Basic error limit thermoresistor ranges with SFU | - |
Destruction limit resistance thermometer inputs | - |
Thermocouple inputs | - |
Thermocouple ranges | - |
Operational limit of thermocouple ranges | - |
Operational limit of thermocouple ranges with SFU | - |
Basic error limit thermoelement ranges | - |
Basic error limit thermoresistor ranges with SFU | - |
Destruction limit thermocouple inputs | - |
Programmable temperature compensation | - |
External temperature compensation | - |
Internal temperature compensation | - |
Internal temperature compensation | - |
Technical unit of temperature measurement | - |
Resolution in bit | 16 |
Measurement principle | Sigma-Delta |
Basic conversion time | 7 ms - 272 ms |
Noise suppression for frequency | 50 Hz and 60 Hz |
Initial data size | 8 Byte |
Technical data analog outputs |
|
Number of outputs | 2 |
Cable length, shielded | 200 m |
Rated load voltage | DC 24 V |
Reverse polarity protection of rated load voltage | |
Current consumption from load voltage L+ (without load) | 70 mA |
Voltage output short-circuit protection | |
Voltage outputs | |
Min. load resistance (voltage range) | 1 kΩ |
Max. capacitive load (current range) | 1 µF |
Max. inductive load (current range) | 30 mA |
Output voltage ranges | -10 V ... +10 V +1 V ... +5 V 0 V ... +10 V |
Operational limit of voltage ranges | +/-0.4% ... +/-0.8% |
Basic error limit voltage ranges with SFU | +/-0.2% ... +/-0.4% |
Destruction limit against external applied voltage | - |
Current outputs | |
Max. in load resistance (current range) | 500 Ω |
Max. inductive load (current range) | 10 mH |
Max. inductive load (current range) | 13 V |
Output current ranges | -20 mA ... +20 mA 0 mA ... +20 mA 0 mA ... +20 mA |
Operational limit of current ranges | +/-0.3% ... +/-0.8% |
Radical error limit current ranges with SFU | +/-0.2% ... +/-0.5% |
- | |
Settling time for ohmic load | 0.3 ms |
Settling time for capacitive load | 1 ms |
Settling time for inductive load | 0.5 ms |
Resolution in bit | 12 |
Conversion time | 1.50 ms |
Substitute value can be applied | yes |
Output data size | 4 Byte |
Status information, alarms, diagnostics |
|
Status display | yes |
Interrupts | yes |
Process alarm | yes, parameterizable |
Diagnostic interrupt | yes, parameterizable |
Diagnostic functions | yes |
Diagnostics information read-out | possible |
Supply voltage display | green LED per group |
Group error display | red SF LED |
Channel error display | none |
Isolation |
|
Between channels | - |
Between channels of groups to | - |
Between channels and backplane bus | |
Between channels and power supply | |
Max. potential difference between circuits | - |
Max. potential difference between inputs (Ucm) | DC 4 V |
Max. potential difference between Mana and Mintern (Uiso) | - |
Max. potential difference between inputs and Mana (Ucm) | - |
Max. potential difference between inputs and Mintern (Uiso) | DC 75 V/ AC 60 V |
Max. potential difference between Mintern and outputs | - |
Insulation tested with | DC 500 V |
Datasizes |
|
Input bytes | 8 + 16 |
Output bytes | 4 + 16 |
Parameter bytes | 18 + 71 |
Diagnostic bytes | 12 + 12 |
Housing |
|
Material | PPE / PA 6.6 |
Mounting | Profile rail 35 mm |
Mechanical data |
|
Dimensions (WxHxD) | 50.8 mm x 76 mm x 88 mm |
Weight | 150 g |
Environmental conditions |
|
Operating temperature | 0 °C to 60 °C |
Storage temperature | -25 °C to 70 °C |
Certifications |
|
UL508 certification | yes |
