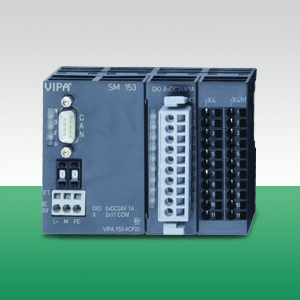

SM 153, CANopen Slave, 8DIO, DC 24V/1A, 2x11 clamps

Изделие: 153-4CF00


Краткое описание:
Ведомое устройство сети CANopen, DIO 8x24 В/1 А пост. тока, 1 Мбит/с, 2x11 клемм
Производитель: VIPA
Вес: 0.22 кг.
Розничная цена: 71925
БЫСТРЫЙ ЗАКАЗ

SM 153 153-4CF00

Модуль SM 153, ведомое устройство сети CANopen, DIO 8x24 В/1 А пост. тока, 1 Мбит/с, 2x11 клемм

Наименование
CANopen slave
Тип
153-4CF00
Габаритные размеры, В х Ш х Г, мм
101.6х76х48
Температура окружающей среды
0°C to 60°C
Серия
100V
Тип интерфейса (электрический)
RS 485
Количество сигналов
DIO 8xDC 24V






  1. LED status monitor
  2. PROFIBUS interface
  3. Address selector
  4. CANopen interface
  5. Input / output periphery







LEDs

 Label   Color  Description
PW green

Signalizes an applying operating voltage

ER red

On at error

RD green

Blinks with 1Hz at positive self test and successful initialization

BA yellow

Off at positive self test and successful initialization
1Hz blinking in state "Pre-Operational".
On at state "Operational".
10Hz blinking in state "Prepared".





Interface

CANopen     Description

  1. not used
  2. CAN low
  3. CAN Ground
  4. not used
  5. not used
  6. optional Ground
  7. CAN high
  8. not used
  9. not used







Status monitor pin assignment

LED Description          Pin assignment
 .0... .7

LEDs (green)
I+0.0 to I+0.7
from ca. 15V on, the
signal "1" is recognized and
the according LED is addressed


  1. not used
  2. Input I+0.0
  3. Input I+0.1
  4. Input I+0.2
  5. Input I+0.3
  6. Input I+0.4
  7. Input I+0.5
  8. Input I+0.6
  9. Input I+0.7
  10. Ground





LED Description          Pin assignment
 L+

LED (yellow)
Supply voltage applied


  1. Supply voltage DC 24V
  2. Output Q+0.0
  3. Output Q+0.1
  4. Output Q+0.2
  5. Output Q+0.3
  6. Output Q+0.4
  7. Output Q+0.5
  8. Output Q+0.6
  9. Output Q+0.7
  10. Supply voltage Ground
 .0... .7

LEDs (green)
Q+0.0 to Q+0.7
as soon as an output is
active, the according LED
is addressed


 F

LED (red)
Error at overload, overheat
or short circuit







LED Description          Pin assignment
 L+

LED (yellow)
Supply voltage applied


  1. Supply voltage DC 24V
  2. In-/Output I/Q+0.0
  3. In-/Output I/Q+0.1
  4. In-/Output I/Q+0.2
  5. In-/Output I/Q+0.3
  6. Output Q+0.4
  7. Output Q+0.5
  8. Output Q+0.6
  9. Output Q+0.7
  10. Supply voltage ground
 .0... .3

LEDs (green)
I/Q+0.0 to I/Q+0.3
as soon as an I/O=1 the
according LED is
addressed


 .4... .7

LEDs (green)
Q+0.4 to Q+0.7
as soon as an output is
active, the according LED
is addressed


 F

LED (red)
Error at overload, overheat
or short circuit



Order no.

153-4CF00

Type SM 153, CANopen slave

General information

Note -
Features CAN slave
8 channels as inputs or outputs
2x11 clamps

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) -
Current consumption (rated value) 55 mA

Technical data digital inputs

Number of inputs 0 (8
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) -
Rated value DC 24 V
Input voltage for signal "0" DC 0...5 V
Input voltage for signal "1" DC 15...28.8 V
Input voltage hysteresis -
Frequency range -
Input resistance -
Input current for signal "1" 7 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current 1.5 mA
Input delay of "0" to "1" 3 ms
Input delay of "1" to "0" 3 ms
Number of simultaneously utilizable inputs horizontal configuration 8
Number of simultaneously utilizable inputs vertical configuration 8
Input characteristic curve IEC 61131-2, type 1
Initial data size 1 Byte

Technical data digital outputs

Number of outputs 8 (0
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) 50 mA
Total current per group, horizontal configuration, 40°C 4 A
Total current per group, horizontal configuration, 60°C 2 A
Total current per group, vertical configuration 2 A
Output voltage signal "1" at min. current L+ (-0.8 V)
Output voltage signal "1" at max. current L+ (-1.5 V)
Output current at signal "1", rated value 1 A
Output delay of "0" to "1" 150 µs
Output delay of "1" to "0" 100 µs
Minimum load current -
Lamp load 5 W
Parallel switching of outputs for redundant control of a load not possible
Parallel switching of outputs for increased power not possible
Actuation of digital input
Switching frequency with resistive load max. 1000 Hz
Switching frequency with inductive load max. 0.5 Hz
Switching frequency on lamp load max. 10 Hz
Internal limitation of inductive shut-off voltage L+ (-52 V)
Short-circuit protection of output yes, electronic
Trigger level 1.5 A
Number of operating cycle of relay outputs -
Switching capacity of contacts -
Output data size 1 Byte

Status information, alarms, diagnostics

Status display green LED per channel
Interrupts no
Process alarm no
Diagnostic interrupt no
Diagnostic functions no
Diagnostics information read-out possible
Supply voltage display yes
Group error display red SF LED
Channel error display none

Isolation

Between channels -
Between channels of groups to -
Between channels and backplane bus -
Between channels and power supply -
Max. potential difference between circuits -
Max. potential difference between inputs (Ucm) -
Max. potential difference between Mana and Mintern (Uiso) -
Max. potential difference between inputs and Mana (Ucm) -
Max. potential difference between inputs and Mintern (Uiso) -
Max. potential difference between Mintern and outputs -
Insulation tested with DC 500 V

Hardware configuration

Racks, max. -
Modules per rack, max. -
Number of digital modules, max. -
Number of analog modules, max. -

Communication

Fieldbus CANopen
Type of interface CAN
Connector Sub-D, 9-pin, male
Topology Linear bus with bus termination at both ends
Electrically isolated
Number of participants, max. 126
Node addresses 1 - 99
Transmission speed, min. 10 kbit/s
Transmission speed, max. 1 Mbit/s
Address range inputs, max. 1 Byte
Address range outputs, max. 1 Byte
Number of TxPDOs, max. 1
Number of RxPDOs, max. 1

Datasizes

Input bytes 1
Output bytes 1
Parameter bytes -
Diagnostic bytes -

Housing

Material PPE / PA 6.6
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 101.6 mm x 76 mm x 48 mm
Weight 219 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes
