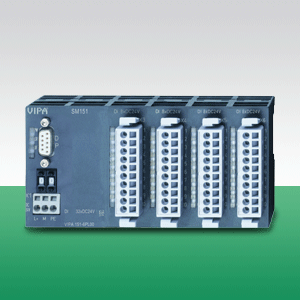

SM 151, Profibus DP Slave, 16DI, DC 24V, 4x11 clamps

Изделие: 151-6PH00


Краткое описание:
Ведомое устройство PROFIBUS DP, DI 16x24 В пост. тока, 12 Мбит/с, 4x11 клемм
Производитель: VIPA
Вес: 0.3 кг.
Розничная цена: 97407
БЫСТРЫЙ ЗАКАЗ

SM 151 151-6PH00

Модуль SM 151, ведомое устройство PROFIBUS DP, DI 16x24 В пост. тока, 12 Мбит/с, 4x11 клемм

Наименование
Profibus-DP slave
Тип
151-6PH00
Габаритные размеры, В х Ш х Г, мм
152.4х76х48
Температура окружающей среды
0°C to 60°C
Серия
100V
Тип интерфейса (электрический)
RS 485
Количество сигналов
DI 16xDC24V






  1. LED status monitor
  2. PROFIBUS interface
  3. Address selector
  4. Power supply DC24V
  5. Input / output periphery







LEDs

 Label   Color  Description
PW green

Operating voltage
Signalizes applying DC 24V operating voltage

ER red

Error/Diagnostic
Blinks at working diagnostic for short circuit,
overload or missing voltage supply.
Extinguishes as soon as the error is cleared.

BF red

PROFIBUS bus error
Blinks during establishing communication.
Extinguishes at active communication.





Interface

PROFIBUS DP     Description

  1. screen
  2. n.c.
  3. RxD/TxD-P (Line B)
  4. RTS
  5. M5V
  6. P5V
  7. n.c.
  8. RxD/TxD-N (Line A)
  9. n.c.







Status monitor pin assignment

LED Description          Pin assignment
 .0... .7

LEDs (green)
I+0.0 to I+0.7
from ca. 15V on the signal
"1" is recognized and the
according LED is addressed


  1. not used
  2. Input I+0.0
  3. Input I+0.1
  4. Input I+0.2
  5. Input I+0.3
  6. Input I+0.4
  7. Input I+0.5
  8. Input I+0.6
  9. Input I+0.7
  10. Ground

Order no.

151-6PH00

Type SM 151

General information

Note -
Features PROFIBUS-DP slave
16 inputs
4x11 clamps

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) -
Current consumption (rated value) 55 mA
Inrush current 40 A
I²t 0.15 A²s

Technical data digital inputs

Number of inputs 16
Cable length, shielded 1000 m
Cable length, unshielded 600 m
Rated load voltage DC 24 V
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) -
Rated value DC 24 V
Input voltage for signal "0" DC 0...5 V
Input voltage for signal "1" DC 15...28.8 V
Input voltage hysteresis -
Frequency range -
Input resistance -
Input current for signal "1" 7 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current 1.5 mA
Input delay of "0" to "1" 3 ms
Input delay of "1" to "0" 3 ms
Number of simultaneously utilizable inputs horizontal configuration 16
Number of simultaneously utilizable inputs vertical configuration 16
Input characteristic curve IEC 61131-2, type 1
Initial data size 2 Byte

Status information, alarms, diagnostics

Status display green LED per channel
Interrupts no
Process alarm no
Diagnostic interrupt no
Diagnostic functions no
Diagnostics information read-out possible
Supply voltage display yes
Group error display red SF LED
Channel error display none

Isolation

Between channels -
Between channels of groups to -
Between channels and backplane bus -
Between channels and power supply -
Max. potential difference between circuits -
Max. potential difference between inputs (Ucm) -
Max. potential difference between Mana and Mintern (Uiso) -
Max. potential difference between inputs and Mana (Ucm) -
Max. potential difference between inputs and Mintern (Uiso) -
Max. potential difference between Mintern and outputs -
Insulation tested with DC 500 V

Hardware configuration

Racks, max. -
Modules per rack, max. -
Number of digital modules, max. -
Number of analog modules, max. -

Communication

Fieldbus PROFIBUS-DP to EN 50170
Type of interface RS485
Connector Sub-D, 9-pin, female
Topology Linear bus with bus termination at both ends
Electrically isolated
Number of participants, max. 125
Node addresses 1 - 99
Transmission speed, min. 9.6 kbit/s
Transmission speed, max. 12 Mbit/s
Address range inputs, max. 2 Byte
Address range outputs, max. 0 Byte
Number of TxPDOs, max. -
Number of RxPDOs, max. -

Datasizes

Input bytes 2
Output bytes 0
Parameter bytes 7 + 5
Diagnostic bytes 0

Housing

Material PPE / PA 6.6
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 152.4 mm x 76 mm x 48 mm
Weight 288 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes
Order no.Name/Description

151-4PH00

SM 151 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
16 inputs
 [Datasheet]
 [Manual]

151-6PH00

SM 151 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
16 inputs
4x11 clamps
 [Datasheet]
 [Manual]

151-6PL00

SM 151 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
32 inputs
 [Datasheet]
 [Manual]

152-4PH00

SM 152 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
16 outputs
 [Datasheet]
 [Manual]

152-6PH00

SM 152 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
16 outputs
4x11 clamps
 [Datasheet]
 [Manual]

152-6PL00

SM 152 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
32 outputs
 [Datasheet]
 [Manual]

153-4CF00

SM 153 - CANopen slave, digital
CAN slave
8 channels as inputs or outputs
2x11 clamps
 [Datasheet]
 [Manual]

153-4CH00

SM 153 - CANopen slave, digital
CAN slave
8 (12) inputs
4 (8) outputs
 [Datasheet]
 [Manual]

153-4PF00

SM 153 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
8 channels as inputs or outputs
2x11 clamps
 [Datasheet]
 [Manual]

153-4PH00

SM 153 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
8 inputs
8 outputs
 [Datasheet]
 [Manual]

153-6CH00

SM 153 - CANopen slave, digital
CAN slave
8 (12) inputs
4 (8) outputs
4x11 clamps
 [Datasheet]
 [Manual]

153-6CL10

SM 153 - CANopen slave, digital
CAN slave
24 inputs
8 outputs
 [Datasheet]
 [Manual]

153-6PH00

SM 153 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
8 inputs
8 outputs
4x11 clamps
 [Datasheet]
 [Manual]

153-6PL00

SM 153 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
16 inputs
16 outputs
 [Datasheet]
 [Manual]

153-6PL10

SM 153 - PROFIBUS-DP slave, digital
PROFIBUS-DP slave
24 inputs
8 outputs
 [Datasheet]
 [Manual]
