IM 053DP, ProfiBus

Изделие: 053-1DP00


Краткое описание:
Ведомое устройство сети PROFIBUS DP(DP-V0, DP-V1)
Производитель: VIPA
Вес: 0.16 кг.
Розничная цена: 57129
БЫСТРЫЙ ЗАКАЗ

IM 053 053-1DP00

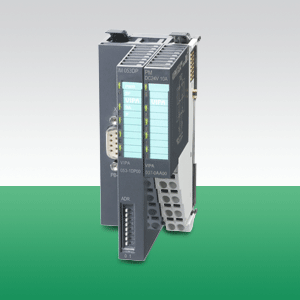

Интерфейсный модуль IM 053DP, ведомое устройство сети PROFIBUS DP (DP-V0, DP-V1)

Наименование
Модуль интерфейсный IM053DP - Profibus-DP Slave
Тип
053-1DP00
Габаритные размеры, В х Ш х Г, мм
48.5 mm x 109 mm x 76.5 mm
Опции
Profibus-DP slave
Температура окружающей среды
0 °C .. 60 °C
Тип интерфейса (электрический)
RS232




  1. Locking lever terminal module
  2. Labeling strip bus interface
  3. LED status indication bus interface
  4. Labeling strip power module
  5. LED status indication power module
  6. Backplane bus
  7. DC 24V power section supply
  8. Power module
  9. PROFIBUS jack bus interface
  10. Unlocking lever power module
  11. Bus interface
  12. Terminal power module
  13. Address selector





Status indication

PWR IO

PWR PF Description
green green red



X  Power section supply OK

 Electronic section supply OK

X X

 Fuse electronic section supply defective

 on: ● | off: ○ | not relevant: X





LED

COLOR

Description
PWR green

 Bus interface is power supplied

SF red

 Station fault, structure is not corresponding to the configuration

DE green

 State Data Exchange

BB  Bus interface is waiting for parameters
IF red

 Internal error occurred

on: ● | off: ○ | blinking (2Hz): BB | blinking (10Hz): BBB | not relevant: X





Interfaces

PM    DP slave     Description




  1. shield
  2. n. c.
  3. RxD/TxD-P (line B)
  4. RTS
  5. M5V
  6. P5V
  7. n. c.
  8. RxD/TxD-N (line A)
  9. n. c.







Pin assignment

PM - Power module  Pos.  Function

 Type

Description
1  --- ---  not connected
2  DC 24V I

 DC 24V for power section supply

3  0V I

 GND for power section supply

4  Sys DC 24V I  DC 24V for electronic section supply
5  --- ---  not connected
6  DC 24V I

 DC 24V for power section supply

7  0V I

 GND for power section supply

8  Sys 0V I  GND for electronic section supply



 I Input



Address selector  Pos.  Value

 Example

State

Address
1  not used   ---

 1+2+32=35
 Address: 35















2  1 1
3  2 1
4  4 0
5  8 0
6  16 0
7  32 1
8  64 0

Order no.

053-1DP00

Type IM 053DP
Module ID -

General information

Note -
Features PROFIBUS-DP slave (DP-V0, DP-V1)
244 Byte input and 244 Byte output data
up to 64 peripheral modules

Technical data power supply

Power supply (rated value) DC 24 V
Power supply (permitted range) DC 20.4...28.8 V
Reverse polarity protection
Current consumption (no-load operation) 90 mA
Current consumption (rated value) 0.95 A
Inrush current 3.9 A
I²t 0.14 A²s
Max. current drain at backplane bus 3 A
Max. current drain load supply 10 A
Power loss 3 W

Status information, alarms, diagnostics

Status display yes
Interrupts yes, parameterizable
Process alarm yes, parameterizable
Diagnostic interrupt yes, parameterizable
Diagnostic functions yes, parameterizable
Diagnostics information read-out possible
Supply voltage display green LED
Service Indicator -
Group error display red LED
Channel error display none

Hardware configuration

Racks, max. 1
Modules per rack, max. 64
Number of digital modules, max. 64
Number of analog modules, max. 64

Communication

Fieldbus PROFIBUS-DP to EN 50170
Type of interface RS485 isolated
Connector Sub-D, 9-pin, female
Topology Linear bus with bus termination at both ends
Electrically isolated
Number of participants, max. 125
Node addresses 1 - 125
Transmission speed, min. 9.6 kbit/s
Transmission speed, max. 12 Mbit/s
Address range inputs, max. 244 Byte
Address range outputs, max. 244 Byte
Number of TxPDOs, max. -
Number of RxPDOs, max. -

Housing

Material PPE / PPE GF10
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 48.5 mm x 109 mm x 76.5 mm
Weight 155 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes
Order no.Name/Description

053-1CA00

IM 053CAN - CANopen slave
CANopen slave
16 Rx and 16 Tx PDOs
2 SDOs
PDO linking
PDO mapping: fix
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1DN00

IM 053DN - DeviceNet slave
DeviceNet slave
Group 2 only device
Poll only device
Baud rate: 125, 250 and 500kbit/s
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1DP00

IM 053DP - PROFIBUS-DP slave
PROFIBUS-DP slave (DP-V0, DP-V1)
244 Byte input and 244 Byte output data
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1EC00

IM 053EC - EtherCAT slave
EtherCAT slave
RJ45 jack 100BaseTX
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1IP00

IM 053IP - EtherNet/IP slave
EtherNet/IP-Slave
I/O configuration via fieldbus
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1MT00

IM 053MT - Modbus/TCP slave
Modbus/TCP slave
I/O configuration via fieldbus
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

053-1PN00

IM 053PN - PROFINET-IO slave
PROFINET-IO slave
Transfer rate 100Mbit/s
up to 64 peripheral modules
 [Datasheet]
 [Manual]
 [STP]

060-1AA00

IM060 Line Extension
SLIO IM060 bus extension
Master module for extension / renewal of the SLIO bus to another line
Connector: 1x RJ45 plug connector
Module width 25.8 mm
Connection: CAT6 cable, maximum length: 2m
Module is always installed at the last place in the line, module IM060 and IM061 always form a pair
 [Datasheet]
 [Manual]

061-1BA00

IM061 Line Extension
SLIO IM 061 bus extension
Slave module for extending SLIO bus up to 8 additional lines (up to 64 modules)
Connector: 1x RJ45 plug connector
Module width 25.8 mm
Connection: CAT6 cable, maximum length: 2m
Module is always installed at the first place in the line; ␍Module IM 060 and IM 061 always form a pair
 [Datasheet]
 [Manual]
