FM 050, Counter, 2Ch (AB), 32Bit, DC 24V/400kHz

Изделие: 050-1BB00


Краткое описание:
Модуль счетчика: 2 канала (AB), 32 разряда, входной сигнал 24 В пост. тока с частотой до 400 кГц
Производитель: VIPA
Вес: 0.1 кг.
Розничная цена: 71103
БЫСТРЫЙ ЗАКАЗ

FM 050 050-1BB00

Модуль счетчика: 2 канала (AB), 32 разряда, входной сигнал 24 В пост. тока с частотой до 400 кГц

Наименование
FM 050, Счетчик 2x32Bit DC 24V
Тип
050-1BA00
Габаритные размеры, В х Ш х Г, мм
12.9 mm x 109 mm x 76.5 mm
Температура окружающей среды
0 °C .. 60 °C






  1. Locking lever terminal module
  2. Labeling strip
  3. Backplane bus
  4. LED status indication
  5. DC 24V power section supply
  6. Electronic module
  7. Terminal module
  8. Locking lever electronic module
  9. Terminal

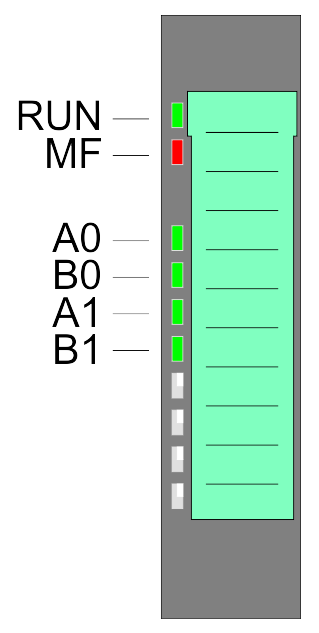

Status indication

RUN MF Description
green red





 Bus communication is OK
 Module status is OK

 Bus communication is OK
 Module status reports an error

 Bus communication is not possible
 Module status reports an error

 Error at bus power supply
X B

 Error in configuration


A0 green

  ●

 Counter 0:
 Digital input 1
 A0/pulse is set

B0 green

 Counter 0:
 Digital input 5
 B0/direction is set

A1 green

 Counter 1:
 Digital input 4
 A1/pulse is set

B1 green

 Counter 1:
 Digital input 8
 B1/direction is set

 on: ● | off: ○ | blinks with 2Hz: B | not relevant: X





Pin assignment

PM - Power module  Pos.  Function

 Type

Description
1  A0 I

 Counter 0: A / pulse
 Pulse input for counter signal respectively track A of an encoder for 1-, 2- or 4-fold evaluation.

2  DC 24V O

 DC 24V for encoder

3  0V O

 GND

4  A1 I

 Counter 1: A / pulse
 Pulse input for counter signal respectively track A of an encoder for 1-, 2- or 4-fold evaluation.

5  B0 I

 Counter 0: B / direction
 direction signal respectively track B of an encoder (invertible via parameterization)

6  DC 24V O

 DC 24V for encoder

7  0V O

 GND

8  B1 I

 Counter 1: B / direction
 direction signal respectively track B of an encoder (invertible via parameterization)

 I: Input, O: Output

Order no.

050-1BB00

Type FM 050
Module ID 08C3 380A

General information

Note -
Features 2 Counter 32 Bit (AB)
DC 24 V

Current consumption/power loss

Current consumption from backplane bus 75 mA
Power loss 0.9 W

Technical data digital inputs

Number of inputs 4
Cable length, shielded 100 m
Cable length, unshielded -
Rated load voltage DC 20.4...28.8 V
Reverse polarity protection of rated load voltage -
Current consumption from load voltage L+ (without load) 15 mA
Rated value DC 20.4...28.8 V
Input voltage for signal "0" DC 0...5 V
Input voltage for signal "1" DC 15...28.8 V
Input voltage hysteresis -
Frequency range -
Input resistance -
Input current for signal "1" 3 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current 0.5 mA
Input delay of "0" to "1" 0.8 µs
Input delay of "1" to "0" 0.8 µs
Number of simultaneously utilizable inputs horizontal configuration 4
Number of simultaneously utilizable inputs vertical configuration 4
Input characteristic curve IEC 61131-2, type 1
Initial data size 12 Byte

Technical data digital outputs

Number of outputs -
Cable length, shielded -
Cable length, unshielded -
Rated load voltage -
Current consumption from load voltage L+ (without load) -
Output delay of "0" to "1" -
Output delay of "1" to "0" -
Minimum load current -
Lamp load -
Parallel switching of outputs for redundant control of a load -
Parallel switching of outputs for increased power -
Actuation of digital input -
Switching frequency with resistive load -
Switching frequency with inductive load -
Switching frequency on lamp load -
Internal limitation of inductive shut-off voltage -
Short-circuit protection of output -
Trigger level -
Number of operating cycle of relay outputs -
Switching capacity of contacts -
Output data size 12 Byte

Technical data counters

Number of counters 2
Counter width 32 Bit
Maximum input frequency 100 kHz
Maximum count frequency 400 kHz
Mode incremental encoder
Mode pulse / direction
Mode pulse -
Mode frequency counter -
Mode period measurement -
Gate input available -
Latch input available -
Reset input available -
Counter output available -

Status information, alarms, diagnostics

Status display yes
Interrupts yes, parameterizable
Process alarm yes, parameterizable
Diagnostic interrupt yes, parameterizable
Diagnostic functions yes, parameterizable
Diagnostics information read-out possible
Module state green LED
Module error display red LED
Channel error display none

Isolation

Between channels -
Between channels of groups to -
Between channels and backplane bus
Between channels and power supply -
Max. potential difference between circuits -
Max. potential difference between inputs (Ucm) -
Max. potential difference between Mana and Mintern (Uiso) -
Max. potential difference between inputs and Mana (Ucm) -
Max. potential difference between inputs and Mintern (Uiso) -
Max. potential difference between Mintern and outputs -
Insulation tested with DC 500 V

Datasizes

Input bytes 12
Output bytes 12
Parameter bytes 45
Diagnostic bytes 20

Housing

Material PPE / PPE GF10
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 12.9 mm x 109 mm x 76.5 mm
Weight 60 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications

UL508 certification yes
Order no.Name/Description

050-1BA00

FM 050 - Counter module␍␍␍
1 Counter 32 Bit (AB)
DC 24 V
 [Datasheet]
 [Manual]
 [STP]

050-1BA10

FM 050 - Counter module
1 Counter 32 Bit (AB)
DC 5 V (difference signal)
 [Datasheet]
 [Manual]
 [STP]

050-1BB00

FM 050 - Counter module
2 Counter 32 Bit (AB)
DC 24 V
 [Datasheet]
 [Manual]
 [STP]

050-1BB30

FM 050 - Counter module Eco
2 Counter 32 Bit (AB)
DC 24 V
 [Datasheet]
 [Manual]
 [STP]

050-1BB40

FM 050 - Frequency measurement
2 channels 24 Bit
DC 24 V
 [Datasheet]
 [Manual]
 [STP]

050-1BS00

FM 050S - SSI module
SSI - Encoder
Master or slave mode
Encoder frequency 125 kHz...2 MHz
μs time stamp for encoder value
 [Datasheet]
 [Manual]
 [STP]

054-1BA00

FM054 – Stepper motor module
1-channel with feedback
4 inputs/outputs DC 24V, which can be used as encoder inputs
Power control frequency 32 kHz
Step pattern 64 times microstepping
 [Datasheet]
 [Shortfacts]
 [Manual]

054-1CB00

FM054 - DC motor module
2-channel with feedback
4 inputs/outputs DC 24V, which can be used as encoder inputs
PWM clock frequency 32 kHz
 [Datasheet]
 [Shortfacts]
 [Manual]

054-1DA00

FM054 - Pulse Train Output Module
1-channel RS422 with feedback
4 configurable in-/outputs I/O1 ... I/O4
Operating modes: CW/CCW, PLS/DIR, ENC/SIM
 [Datasheet]
 [Shortfacts]
 [Manual]
