Каталог

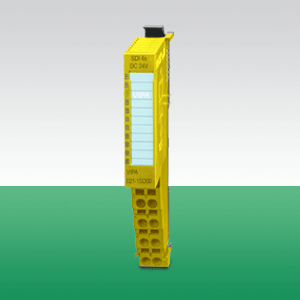

SM 021, 4DI, DC 24V, Safety

Изделие: 021-1SD00


Краткое описание:
Для систем безопасности, 4 канала 24 В пост. тока
Производитель: VIPA
Вес: 0.1 кг.
Розничная цена: 69459
БЫСТРЫЙ ЗАКАЗ

SM 021 021-1SD00

Модуль дискретного ввода для систем безопасности, 4 канала 24 В пост. тока

Наименование
Модуль дискретных входов SM 021, 4 inputs, Safety
Тип
021-1SD00
Габаритные размеры, В х Ш х Г, мм
12.9 mm x 109 mm x 76.5 mm
Температура окружающей среды
0 °C .. 60 °C
Количество входов
4
Тип входного сигнала
24VDC






  1. Locking lever terminal module
  2. Labeling strip
  3. Address switch for F-address
  4. Backplane bus
  5. LED status indication
  6. DC 24V power section supply
  7. Electronic module
  8. Terminal module
  9. Locking lever electronic module
  10. Terminal





Status indication

RUN MF Description
green red



Bus communication is OK
Module status is OK

Bus communication is OK
Module status reports an error

Bus communication is not possible
Module status reports an error

Error at bus power supply
B B

Error in configuration

 on: ● | off: ○ | blinking with 0.5Hz: B





LED Color Description
 PS green

 PROFIsafe communication in data exchange

BB  Safety parametrization expected
B  Error - acknowledgement expected
 Module initialization is running
 ERR red  Permanent fail-safe condition
C  Blink code
 ERR2 yellow C  Blink code
B  Requesting fail-safe state
 DI x green  ●   Digital input is triggered

 on: ● | off: ○ | blinking with 0.5Hz: B | blinking with 2Hz: BB | Blink code: C



Pin assignment

PM - Power module     Pos.  Function

 Type

Description
  1  DI 0 I  Digital input DI 0
  2  DI 2 I

 Digital input DI 2

  3  T0 O

 Clock output T0

  4  T2 O  Clock output T2
  5  DI 1 I  Digital input DI 1
  6  DI 3 I

 Digital input DI 3

  7  T1 O

 Clock output T1

  8  T3 O  Clock output T3

 I: Input, O: Output

Order no.

021-1SD00

Type SM 021
Module ID 0C41 2E00

General information

Note -
Features 4 inputs
Safety

Current consumption/power loss

Current consumption from backplane bus 95 mA
Power loss 0.8 W

Technical data digital inputs

Number of inputs 4
Cable length, shielded 330 m
Cable length, unshielded 330 m
Rated load voltage -
Current consumption from load voltage L+ (without load) 2 mA
Rated value DC 20.4...28.8 V
Input voltage for signal "0" DC 0...5 V
Input voltage for signal "1" DC 11...28.8 V
Input voltage hysteresis -
Frequency range -
Input resistance -
Input current for signal "1" 3 mA
Connection of Two-Wire-BEROs possible
Max. permissible BERO quiescent current 1.5 mA
Input delay of "0" to "1" parameterizable 1ms - 1s
Input delay of "1" to "0" parameterizable 1ms - 1s
Number of simultaneously utilizable inputs horizontal configuration 4
Number of simultaneously utilizable inputs vertical configuration 4
Input characteristic curve IEC 61131-2, type 3
Initial data size 4 Bit

Status information, alarms, diagnostics

Status display green LED per channel
Interrupts yes, parameterizable
Process alarm no
Diagnostic interrupt yes, parameterizable
Diagnostic functions yes, parameterizable
Diagnostics information read-out possible
Module state green LED
Module error display red LED
Channel error display red ERR-LED and yellow ER2-LED

Isolation

Between channels -
Between channels of groups to -
Between channels and backplane bus
Insulation tested with DC 500 V

Safety

Safety protocol PROFIsafe V2
Safety requirements SIL CL 3, PL e, Kat 4
Secure user address 1 - 4095
Watchdog  parameterizable 10ms - 1s
Two channels Each 2 of 4 inputs switchable
Test pulse outputs 4

Datasizes

Input bytes 5
Output bytes 5
Parameter bytes 44
Diagnostic bytes 20

Housing

Material PC / PPE GF10
Mounting Profile rail 35 mm

Mechanical data

Dimensions (WxHxD) 12.9 mm x 109 mm x 76.5 mm
Weight 60 g

Environmental conditions

Operating temperature 0 °C to 60 °C
Storage temperature -25 °C to 70 °C

Certifications
